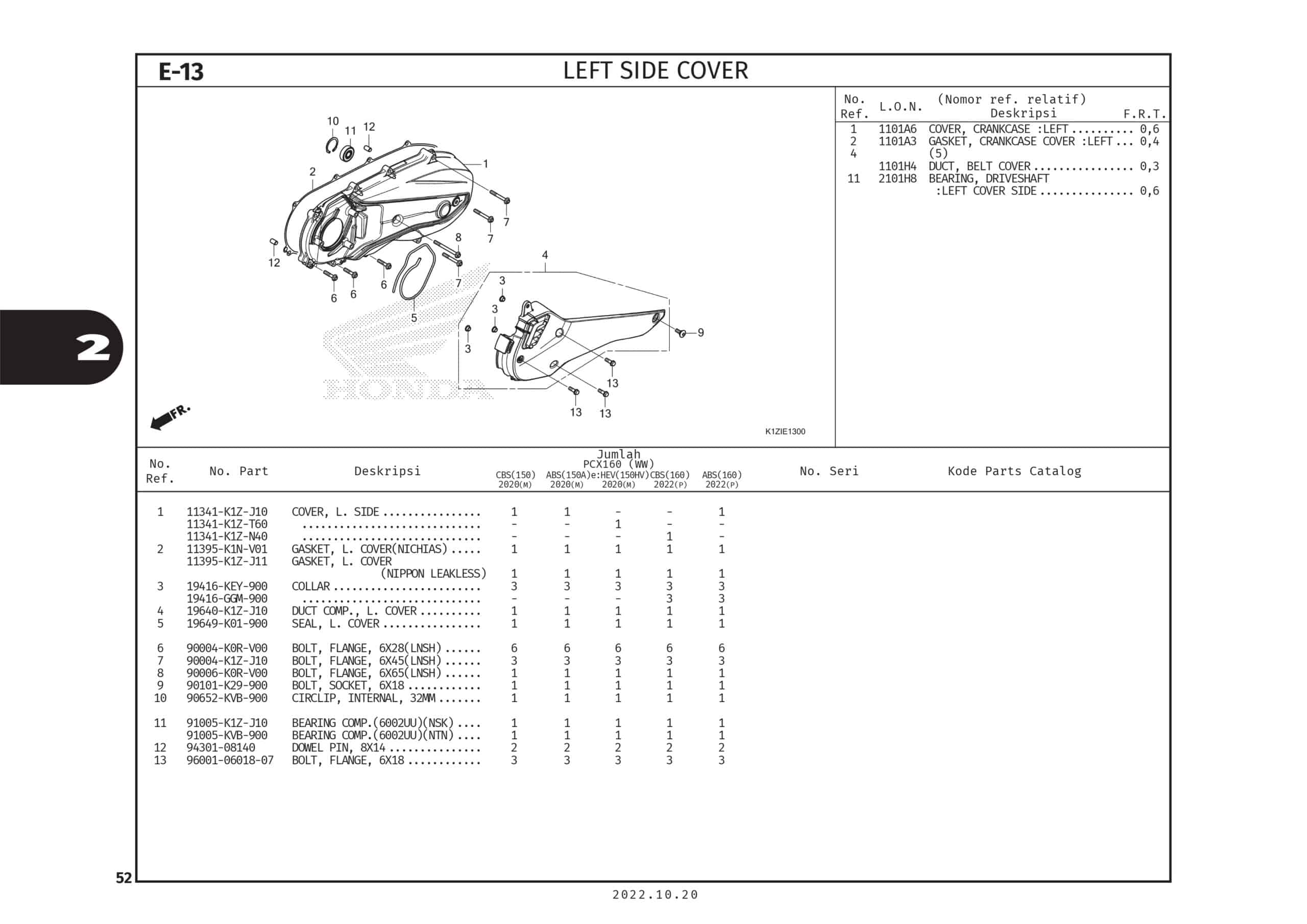

E-13 Left Side Cover – Katalog Suku Cadang Honda PCX 160

#	Informasi Produk	Visual
1	COVER, L. SIDE Part Number : `11341K1ZJ10`
1	COVER,L SIDE Part Number : `11341K1ZT60`
1	COVER,L SIDE Part Number : `11341K1ZN40`
2	GASKET, L. COVER(NICHIAS) Part Number : `11395K1ZJ11`
2	GASKET,LEFT COVER Part Number : `11395K1NV01`
3	COLLAR Part Number : `19416KEY900`
3	COLLAR Part Number : `19416GGM900`
4	DUCT COMP., L. COVER Part Number : `19640K1ZJ10`
5	SEAL, L. COVER Part Number : `19649K01900`
6	BOLT, FLANGE, 6X28(LNSH) Part Number : `90004K0RV00`
7	BOLT, FLANGE, 6X45(LNSH) Part Number : `90004K1ZJ10`
8	BOLT, FLANGE, 6X65(LNSH) Part Number : `90006K0RV00`
9	BOLT, SOCKET, 6X18 Part Number : `90101K29900`
10	CIRCLIP, INTERNAL, 32MM Part Number : `90652KVB900`
11	BRG,COMP DRIVE SHAFT Part Number : `91005K1ZJ10`
11	BRG,COMP DRIVE SHAFT Part Number : `91005KVBN50`
11	BRG,COMP DRIVE SHAFT Part Number : `91010K1AN80`

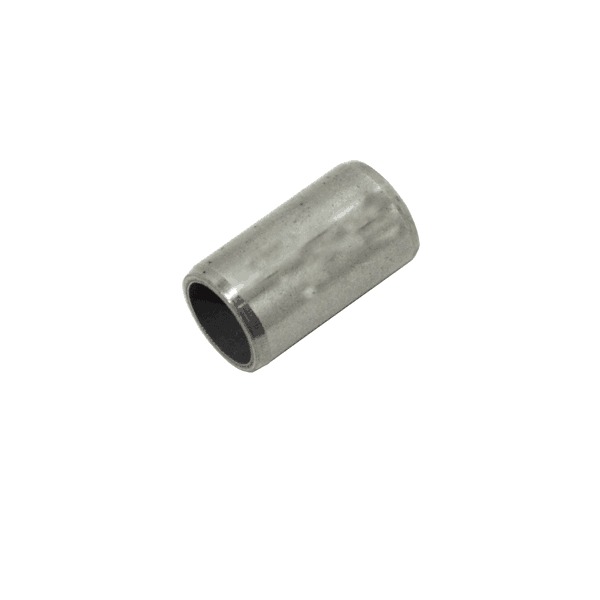

12	DOWEL PIN, 8X14 Part Number : `9430108140`
13	BOLT,FLANGE 6X18 Part Number : `960010601807`
