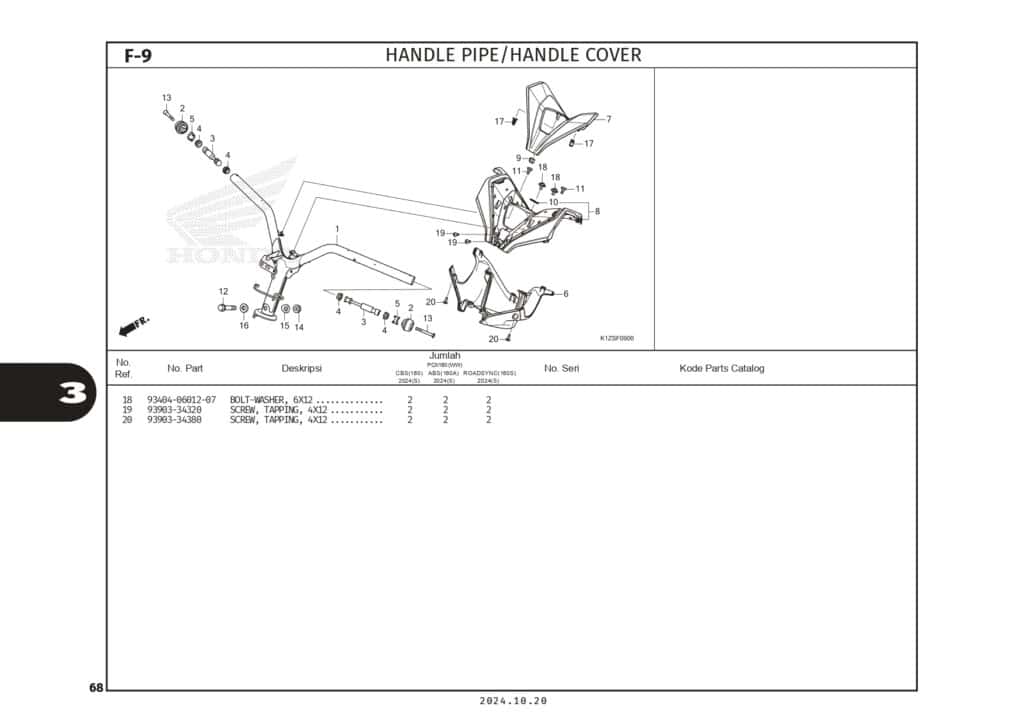

F-9 Handle Pipe Handle Cover – Katalog Suku Cadang Honda PCX 160 K1ZV

#	Informasi Produk	Visual
1	PIPE COMP,STRG HANDLE Part Number : `53100K1YDE0`
2	WEIGHT,STRG HANDLE Part Number : `53104K1YDC0`
3	WEIGHT B STRG HND Part Number : `53105K1TE10`
4	RUBBER A HDL WEIGHT Part Number : `53106KR3770`
5	RING HDL WHT SNAP Part Number : `53108KR3770`
6	COVER,HANDLE LOWER Part Number : `53206K1YDC0ZB`
7	GARNISH,HANDLE (MT BU SL) Part Number : `53209K1YDC0ZD`
7	GARNISH,HANDLE (PR RD MT) Part Number : `53209K1YDC0ZB`
7	GARNISH,HANDLE (MT GN BL) Part Number : `53209K1YDC0ZC`
8	COVER COMP,HANDLE UPPER Part Number : `53250K1YDC0ZA`
9	RUBBER,COWL Part Number : `77267K2PV60`
10	EMBLEM, PRODUCT(MARUI) Part Number : `86150GFC901`
10	EMBLEM, PRODUCT(UEHARA) Part Number : `86150GFC902`
10	EMBLEM,PRODUCT Part Number : `86150KYS940`
11	SCREW,SPECIAL,5MM Part Number : `90104KPHC00`
12	BOLT,FLANGE 10X50 Part Number : `90120HC4000`
13	SCREW, OVAL 6X45 Part Number : `90191K47N41`
14	NUT U10MM Part Number : `90304KGH901`
15	COLLAR A HDL SET Part Number : `90501KPH880`
16	COLLAR B HDL SET Part Number : `90505KPH880`
17	CLIP SNAP FIT(PO) Part Number : `90666K59A11`
18	BOLT WASHER 6X12 Part Number : `934040601207`
19	SCREW TAPPING 4X12 Part Number : `9390334320`
20	SCREW TAPPING 4X12 Part Number : `9390334380`
