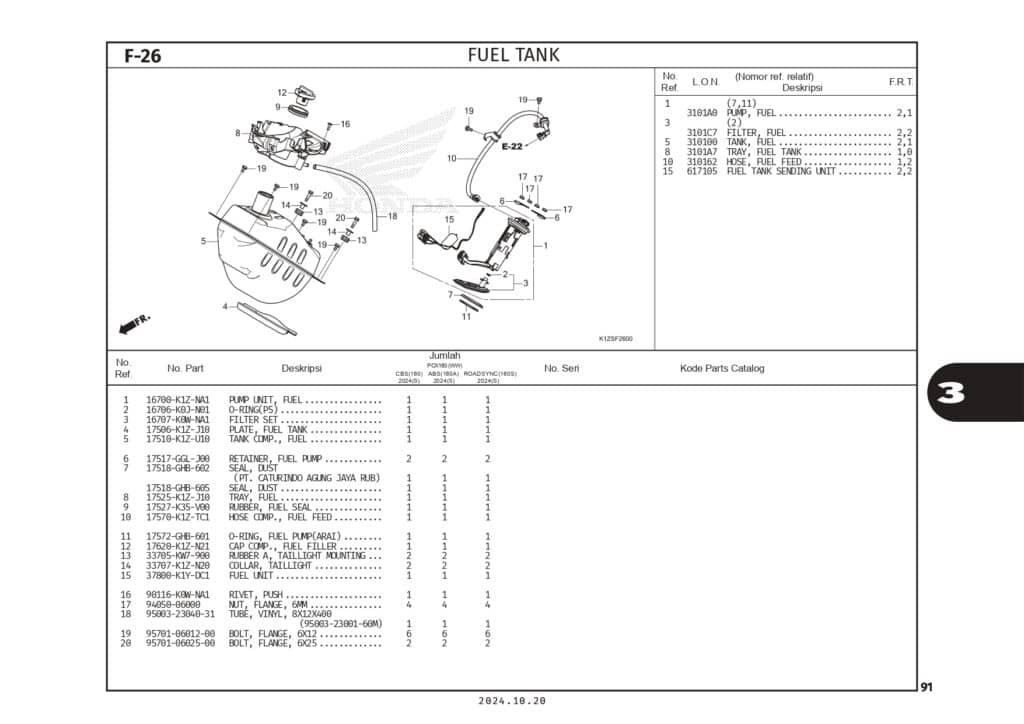

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | UNIT ASSY,FUEL PUMP | 16700K1ZNA1 | - |
| 2 | O-RING,P5 | 16706K0JN01 |
|
| 3 | FILTER SET | 16707K0WNA1 |
|
| 4 | PLATE,FUEL TANK | 17506K1ZJ10 |
|
| 5 | TANK COMP,FUEL | 17510K1ZU10 |
|
| 6 | RETAINER FUEL PUMP | 17517GGLJ00 |
|
| 7 | SEAL, DUST | 17518GHB602 |
|
| 7 | SEAL,DUST | 17518GHB605 | - |
| 8 | TRAY,FUEL | 17525K1ZJ10 |
|
| 9 | RUBBER FUEL SEAL | 17527K35V00 |
|
| 10 | HOSE COMP,FUEL FEED | 17570K1ZTC1 | - |
| 11 | O-RING, FUEL PUMP | 17572GHB601 |
|
| 12 | CAP COMP,FUEL FILLER | 17620K1ZN21 |
|
| 13 | RUBBER TAILLIGHT | 33705KW7900 |
|
| 14 | 33707K1ZN20 | 33707K1ZN20 |
|
| 15 | FUEL UNIT | 37800K1YDC1 | - |
| 16 | RIVET,PUSH | 90116K0WNA1 |
|
| 17 | NUT,FLANGE 6MM | 9405006000 |
|
| 18 | V, TUBE, 8X12X400 | 950032304031 |
|
| 18 | BULK.VT-BH,8X12X1 | 950032300160M |
|
| 19 | BOLT FLANGE 6X12 | 957010601200 |
|
| 20 | BOLT FLANGE 6X25 | 957010602500 |
|
