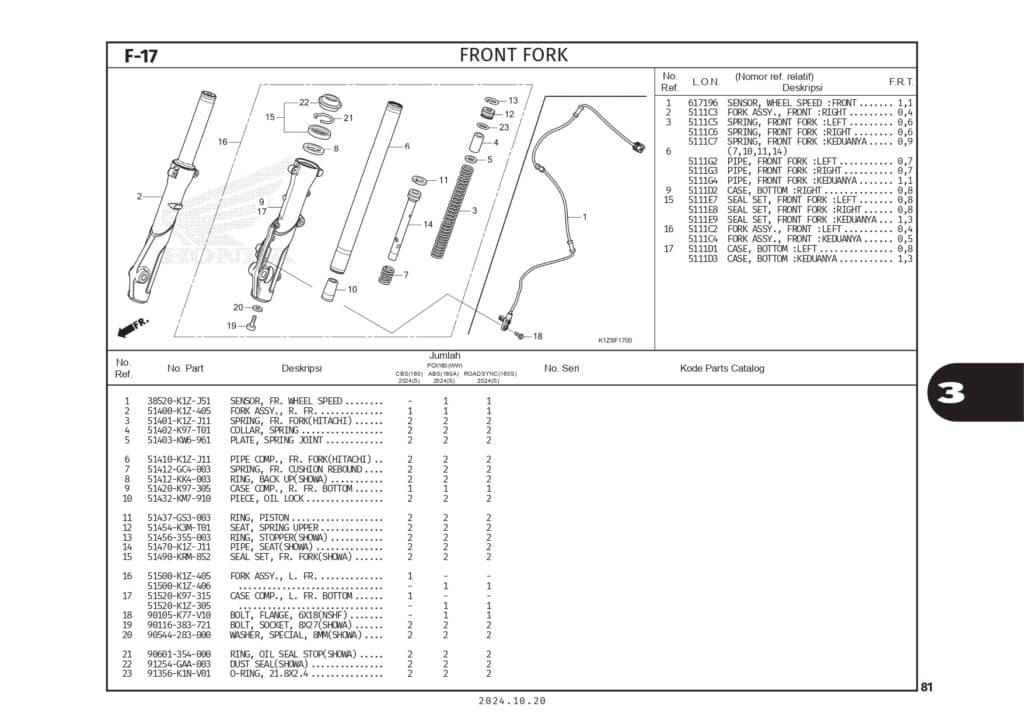

F-17 Front Fork – Katalog Suku Cadang Honda PCX 160 K1ZV

#	Informasi Produk	Visual
1	SENSOR,WHEEL SPD FR Part Number : `38520K1ZJ51`
2	FORK ASSY,R FRONT Part Number : `51400K1Z405`
3	SPRING,FR FORK Part Number : `51401K1ZJ11`
4	COLLAR SPRING Part Number : `51402K97T01`
5	PLATE, SPRING JOINT Part Number : `51403KW6961`
6	PIPE COMP,FR FORK Part Number : `51410K1ZJ11`
7	SPRING,FR.CUSHION REBOUND Part Number : `51412GC4003`
8	RING,BACK UP Part Number : `51412KK4003`
9	CASE COMP,R FR BOTTOM Part Number : `51420K97305`
10	PIECE,OIL LOCK Part Number : `51432KM7910`
11	RING, PISTON Part Number : `51437GS3003`
12	SEAT,SPRING UPPER Part Number : `51454K3MT01`
13	RING,STOPPER Part Number : `51456355003`
14	PIPE,SEAT Part Number : `51470K1ZJ11`
15	SEAL SET FR FORK Part Number : `51490KRM852`
16	FORK ASSY,L FRONT Part Number : `51500K1Z405`
16	FORK ASSY,L FRONT Part Number : `51500K1Z406`
17	CASE COMP,L FR BOTTOM Part Number : `51520K97315`
17	CASE COMP,L FR BOTTOM Part Number : `51520K1Z305`
18	BOLT FLANGE NSHF Part Number : `90105K77V10`
19	BOLT,SOCKET 8MM Part Number : `90116383721`
20	WASHER SPECIAL (8MM) Part Number : `90544283000`
21	RING,OIL SEALSTOP Part Number : `90601354000`
22	DUST SEAL FR FORK Part Number : `91254GAA003`
23	O RING 21.8X2.4 Part Number : `91356K1NV01`
