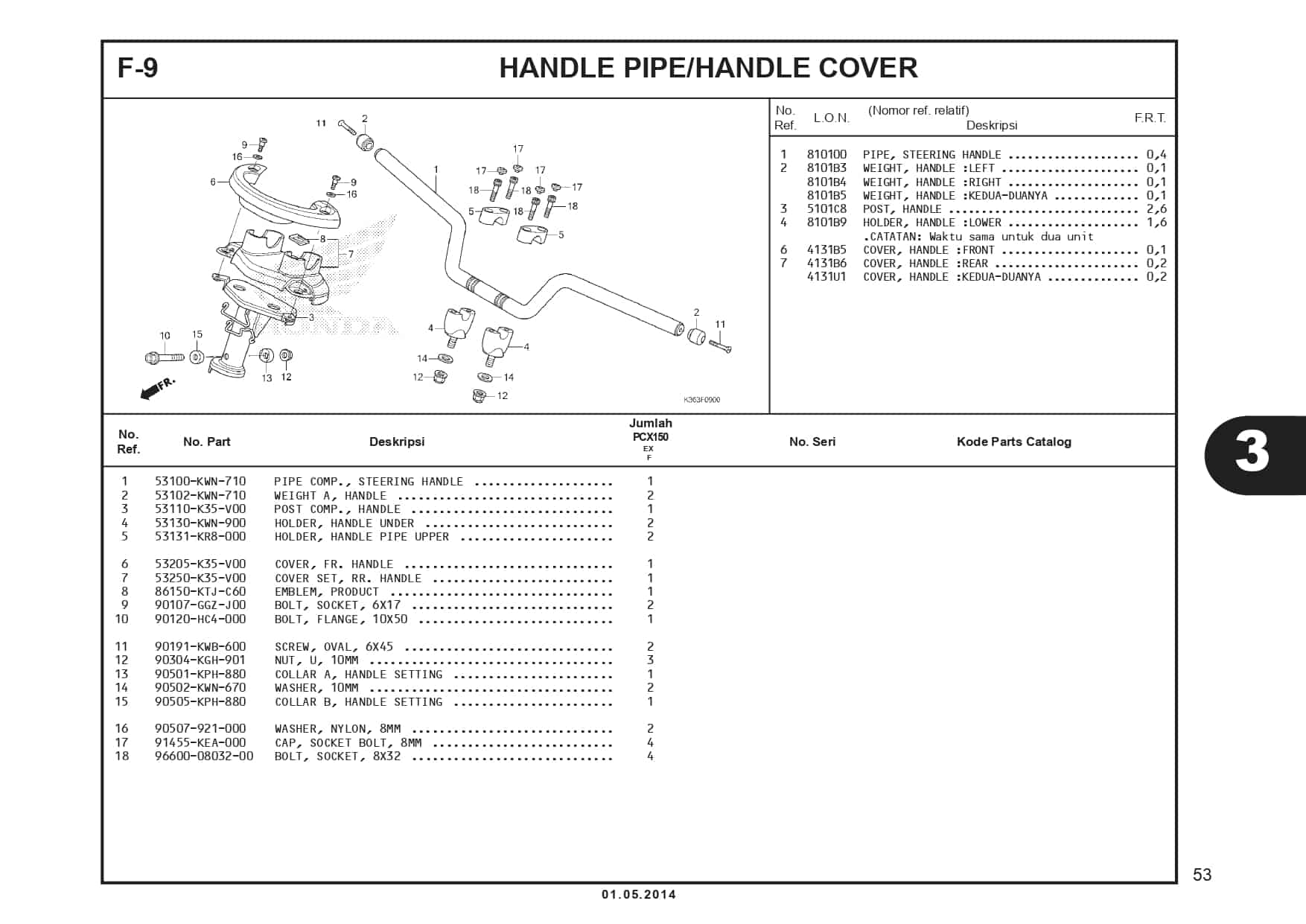

F-9 Handle Pipe/Handle Cover – Katalog Honda PCX 150

#	Informasi Produk	Visual
1	PIPE COMP STEER HANDLE Part Number : `53100KWN710`
2	WEIGHT A HANDLE Part Number : `53102KWN710`
3	POST COMP HANDLE Part Number : `53110K35V00`
4	HOLDER,HNDL UNDER Part Number : `53130KWN900`
5	HOLDER,UPPER Part Number : `53131KR8000`
6	COVER FR HANDLE Part Number : `53205K35V00`
7	COVER SET RR HANDLE Part Number : `53250K35V00`
8	EMBLEM,PRODUCT Part Number : `86150KTJC60`
9	BOLT SOCKET 6X17 Part Number : `90107GGZJ00`
10	BOLT,FLANGE 10X50 Part Number : `90120HC4000`
11	SCREW OVAL 6X45 Part Number : `90191KWB600`
12	NUT U10MM Part Number : `90304KGH901`
13	COLLAR A HDL SET Part Number : `90501KPH880`
14	WASHER, 10MM Part Number : `90502KWN670`
15	COLLAR B HDL SET Part Number : `90505KPH880`
16	WASHER,NYLON 8MM Part Number : `90507921000`
17	CAP,SOC.BOLT 8MM Part Number : `91455KEA000`
18	BOLT,SOCKET, 8X32 Part Number : `966000803200`
