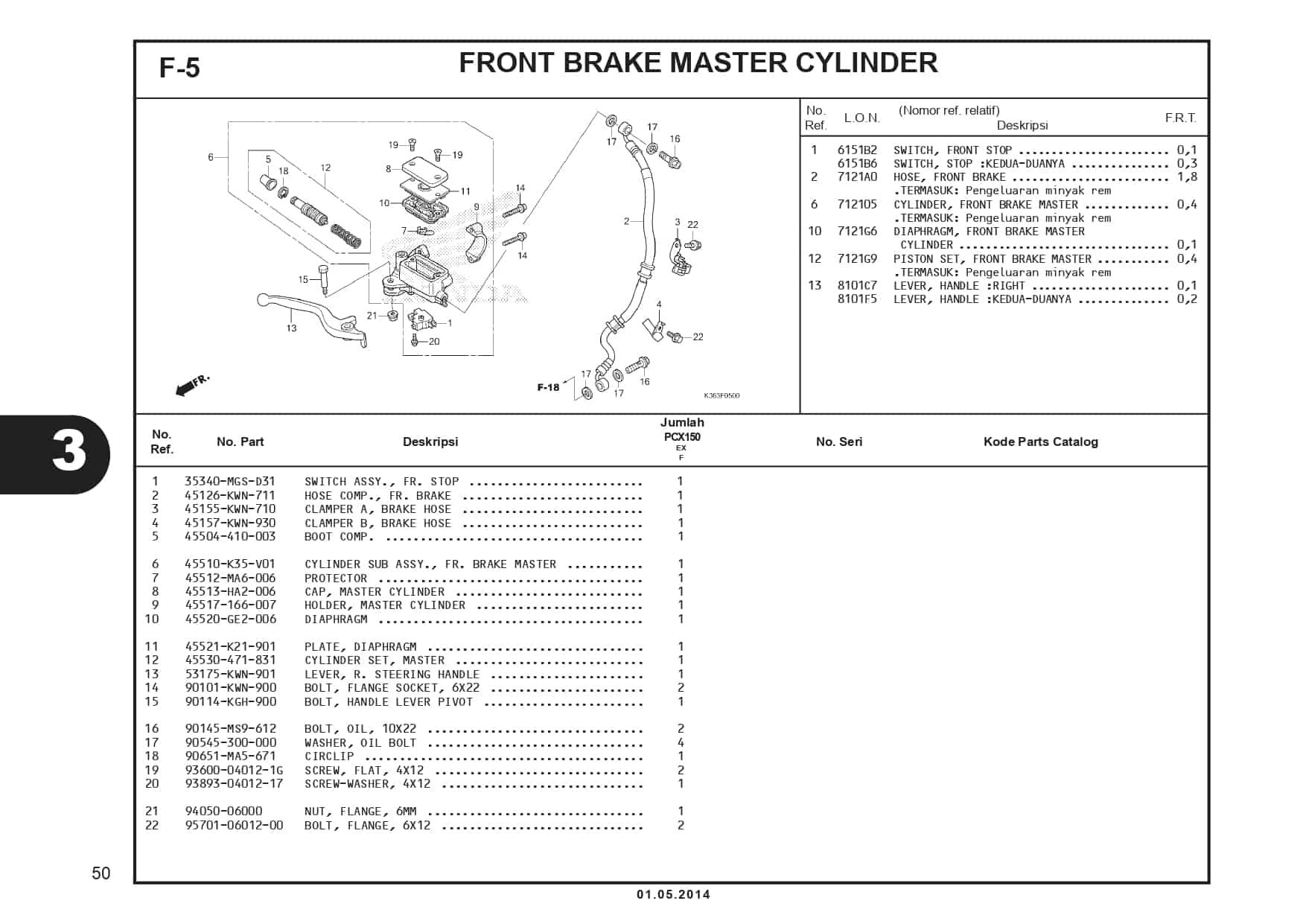

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SWITCH FR STOP ASSY | 35340MGSD31 |
|
| 2 | HOSE COMP FR BRAKE | 45126KWN711 | - |
| 3 | CLAMPER A BRAKE HOSE | 45155KWN710 | - |
| 4 | CLAMPER B,BRK HOSE | 45157KWN930 | - |
| 5 | BOOT COMP | 45504410003 |
|
| 6 | CYLINDER SUB ASSY FR BRAKE | 45510K35V01 |
|
| 7 | PROTECTOR | 45512MA6006 |
|
| 8 | CAP,MASTER CYL | 45513HA2006 |
|
| 9 | HOLDER MASTER CYLINDER | 45517166007 | - |
| 10 | DIAPHRAGM | 45520GE2006 |
|
| 11 | PLATE DIAPHRAGM | 45521K21901 |
|
| 12 | CYLINDER SET,MAS | 45530471831 |
|
| 13 | LEVER,R STRG HNDL | 53175KWN901 |
|
| 14 | BOLT,FLANGE SOCKET 6X22 | 90101KWN900 |
|
| 15 | BOLT HANDLE LEVER | 90114KGH900 |
|
| 16 | BOLT OIL 10X22 | 90145MS9612 | - |
| 17 | WASHER OIL BOLT | 90545300000 |
|
| 18 | CIRCLIP | 90651MA5671 |
|
| 19 | SCREW FLAT, 4X12 | 93600040121G |
|
| 20 | SCREW WASHER 4X12 | 938930401217 |
|
| 21 | NUT,FLANGE 6MM | 9405006000 |
|
| 22 | BOLT FLANGE 6X12 | 957010601200 |
|
