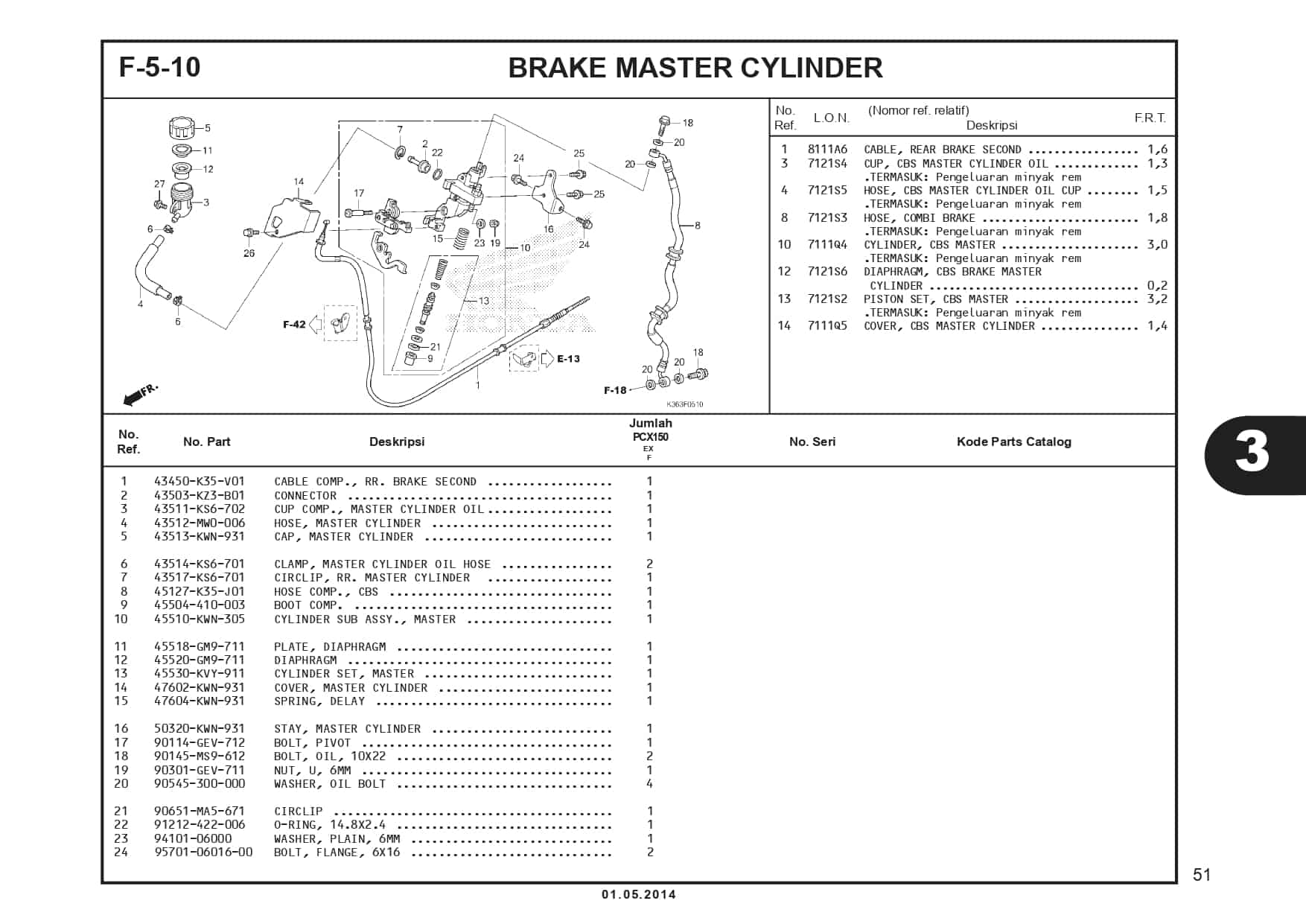

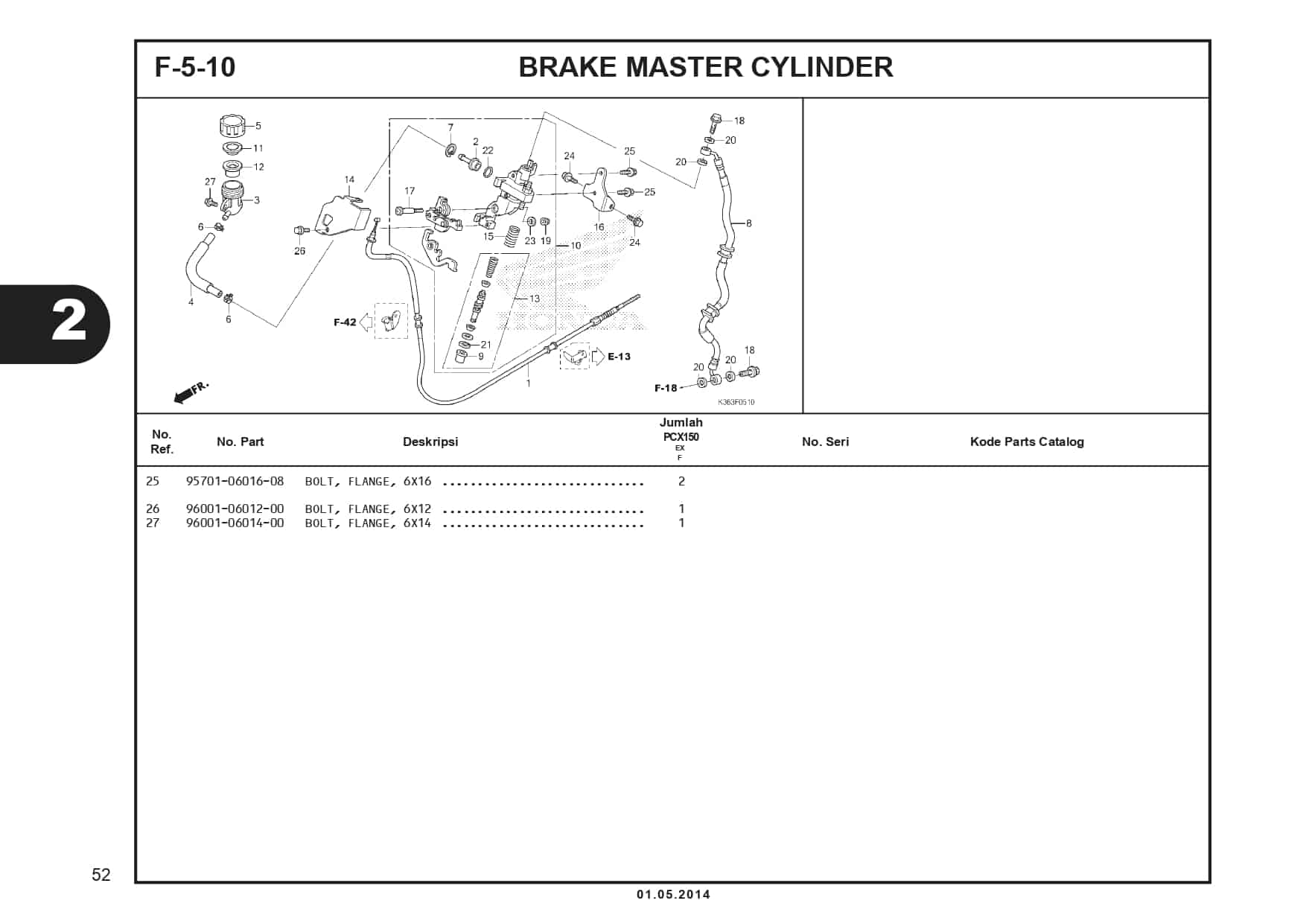

F-5-10 Brake Master Cylinder – Katalog Honda PCX 150

#	Informasi Produk	Visual
1	CABLE COMP RR BRAKE SECOND Part Number : `43450K35V01`
2	CONNECTOR Part Number : `43503KZ3B01`
3	CUP COMP,M/C OIL Part Number : `43511KS6702`
4	HOSE, MASTER CYLINDER Part Number : `43512MW0006`
5	CAP,M/C Part Number : `43513KWN931`
6	CLMP,CYLN.OIL Part Number : `43514KS6701`
7	CIRCLIP,RR.M/C Part Number : `43517KS6701`
8	HOSE COMP CBS Part Number : `45127K35J01`
9	BOOT COMP Part Number : `45504410003`
10	SUB ASSY,M/C Part Number : `45510KWN305`
11	PLATE DIAPHRAGM Part Number : `45518GM9711`
12	DIAPHRAGM Part Number : `45520GM9711`
13	CYLINDER SET MASTER Part Number : `45530KVY911`
14	COVER,M/C Part Number : `47602KWN931`
15	SPRING,DELAY Part Number : `47604KWN931`
16	STAY,M/C Part Number : `50320KWN931`
17	BOLT,PIVOT Part Number : `90114GEV712`
18	BOLT OIL 10X22 Part Number : `90145MS9612`
19	NUT,U,6MM Part Number : `90301GEV711`
20	WASHER OIL BOLT Part Number : `90545300000`
21	CIRCLIP Part Number : `90651MA5671`
22	O-RING,14.8X2.4 Part Number : `91212422006`
23	WASHER PLAIN 6MM Part Number : `9410106000`
24	BOLT FLANGE 6X16 Part Number : `957010601600`
25	BOLT,FLANGE 6X16 Part Number : `957010601608`
26	BOLT FLANGE SH 6X12 Part Number : `960010601200`
27	BOLT FLANGE 6X14 Part Number : `960010601400`
