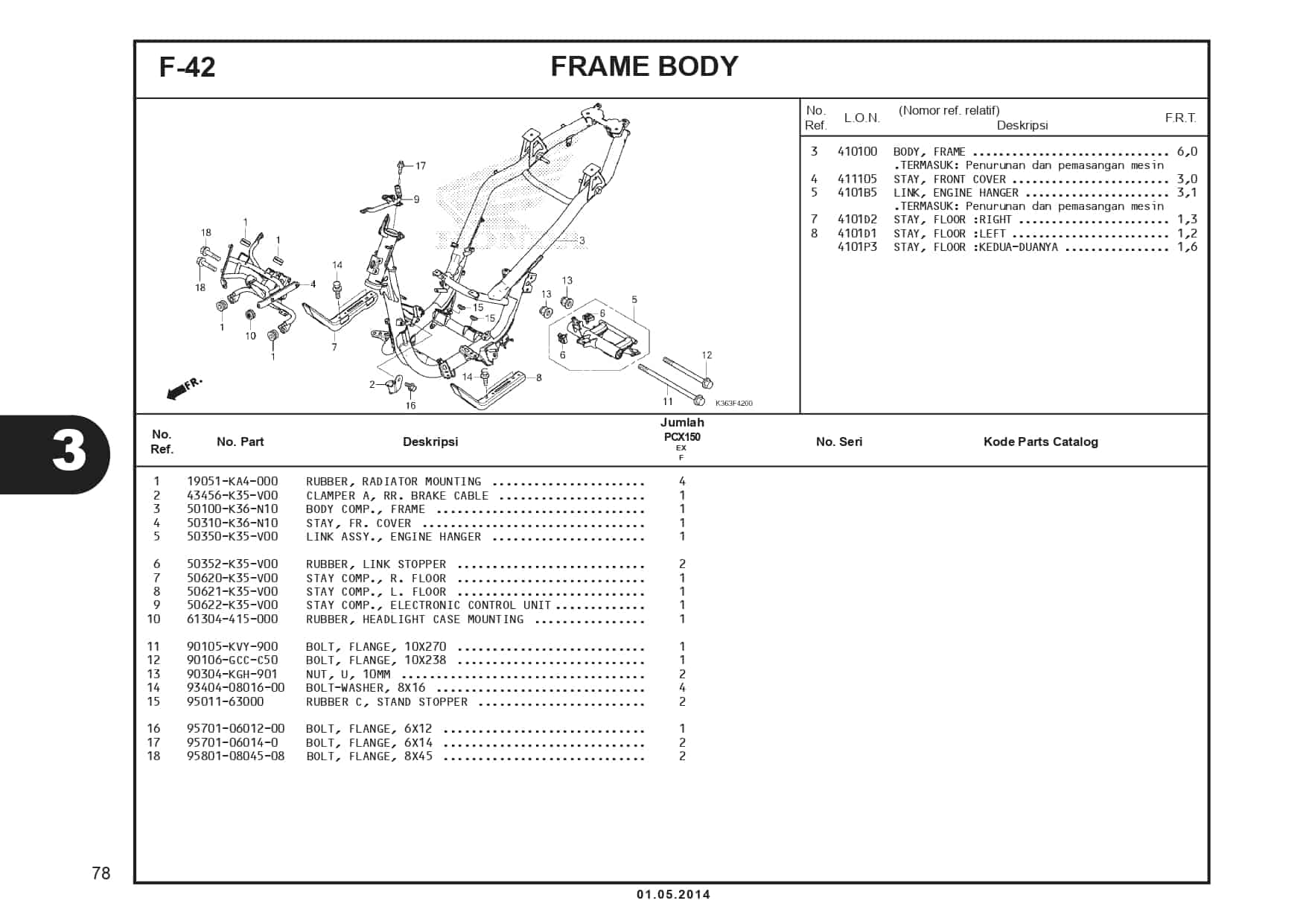

F-42 Frame Body – Katalog Honda PCX 150

#	Informasi Produk	Visual
1	RUBBER,RAD MOUNT Part Number : `19051KA4000`
2	CLAMPER A RR BRK CABLE Part Number : `43456K35V00`
3	BODY COMP FRAME Part Number : `50100K36N10`
4	STAY FR. COVER Part Number : `50310K35V00`
5	LINK ASSY ENGINE HANGER Part Number : `50350K35V00`
6	RUBBER LINK STOPPER Part Number : `50352K35V00`
7	STAY COMP R FLOOR Part Number : `50620K35V00`
8	STAY COMP L FLOOR Part Number : `50621K35V00`
9	STAY COMP ELECTRONIC CTRL Part Number : `50622K35V00`
10	RUBBER,HEADLIGHT Part Number : `61304415000`
11	BOLT FLANGE 10X270 Part Number : `90105KVY900`
12	BOLT, FLANGE, 10X238 Part Number : `90106GCCC50`
13	NUT U10MM Part Number : `90304KGH901`
14	BOLT-WASH.,8X16 Part Number : `934040801600`
15	RUBBER C STAND STOPPER Part Number : `9501163000`
16	BOLT FLANGE 6X12 Part Number : `957010601200`
17	BOLT FLANGE 6X14 Part Number : `95701060140`
18	BOLT, FLANGE, 8X45 Part Number : `958010804508`
