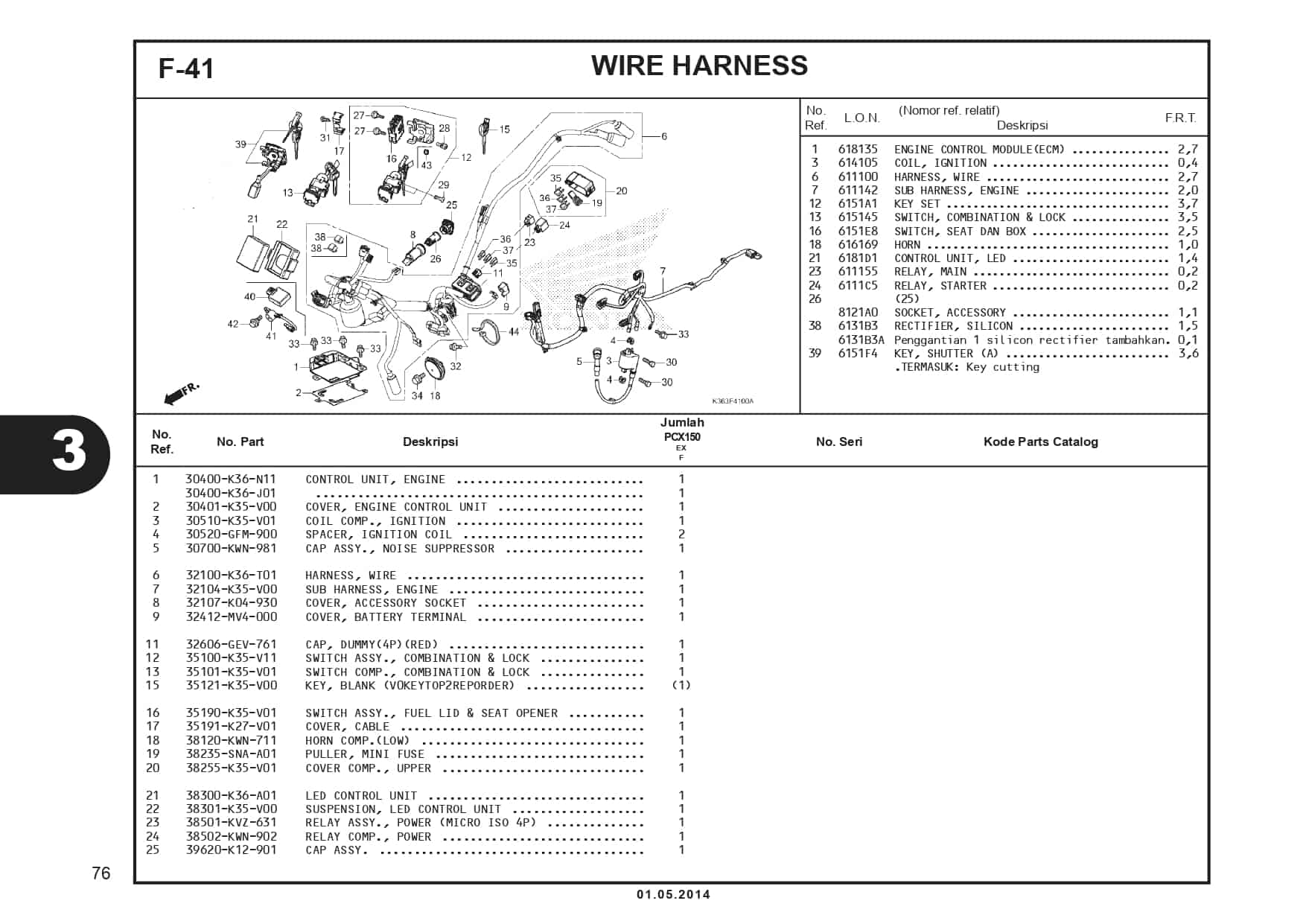

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | CONTROL UNIT ENGINE | 30400K36N11 | - |
| 2 | COVER ENGINE CONTROL UNIT | 30401K35V00 |
|
| 3 | COIL COMP IGNITION | 30510K35V01 |
|
| 4 | SPACER IGN COIL | 30520GFM900 |
|
| 5 | CAP ASSY NOISE SUPPRESSOR | 30700KWN981 |
|
| 6 | HARNESS WIRE | 32100K36T01 | - |
| 7 | SUB HARNESS ENGINE | 32104K35V00 | - |
| 8 | COVER ACCESSORY SOCKET | 32107K04930 | - |
| 9 | COVER, BAT TERMINAL | 32412MV4000 |
|
| 11 | DUMMY,WPC 4P 090 M (RED) | 32606GEV761 |
|
| 12 | SWITCH ASSY COMBINATION | 35100K35V11 | - |
| 13 | SWITCH COMP COMBINATION | 35101K35V01 | - |
| 15 | KEY BLANK | 35121K35V00 | - |
| 16 | SWITCH ASSY FUEL LID & SEAT | 35190K35V01 | - |
| 17 | COVER CABLE | 35191K27V01 |
|
| 18 | HORN COMP.(LOW) | 38120KWN711 | - |
| 19 | PULLER MINI FUSE | 38235SNAA01 |
|
| 20 | COVER COMP UPPER | 38255K35V01 | - |
| 21 | LED CONTROL UNIT | 38300K36A01 | - |
| 22 | SUSPENSION LED CTRL UNIT | 38301K35V00 | - |
| 23 | RELAY COMP,MICROISO LOW HIGHT | 38501KVZ631 |
|
| 24 | RELAY COMP POWER | 38502KWN902 | - |
| 25 | CAP ASSY | 39620K12901 | - |
| 26 | SOCKET ASSY | 39624SZ3L01 |
|
| 27 | SCREW,SCREEN SET | 90101MT4000 |
|
| 28 | BOLT,SOCKET,5X9 | 90111MR5000 |
|
| 29 | SCREW U-LOCK FLAT 6X12 | 90164KZLA00 |
|
| 30 | BOLT HEX 6X20 | 92101060204J |
|
| 31 | SCREW,TAPP 4X12 | 9390124320 |
|
| 32 | BOLT FLANGE 6X12 | 957010601200 |
|
| 33 | BOLT FLANGE 6X16 | 957010601600 |
|
| 34 | BOLT, FLANGE, 8X12 | 957010801200 |
|
| 35 | FUSE, MINI(5A) | 9820040500 |
|
| 36 | FUSE, MINI(10A) | 9820041001 | - |
| 37 | FUSE, MINI(25A) | 9820042500 |
|
| 38 | RECT.COMP.,SILICON | 31700MM8610 | - |
| 39 | SHUTTER KEY | 35110K35V11 | - |
| 40 | CONTROL UNIT ALARM | 38410K36N11 | - |
| 41 | BUZZER ASSY | 38720KVGV41 |
|
| 42 | BOLT SPECIAL 6MM | 90107KVB900 |
|
| 43 | BAND WIRE | 90651K35V00 | - |
| 44 | BAND, WIRE | 90652KT1771 |
|
