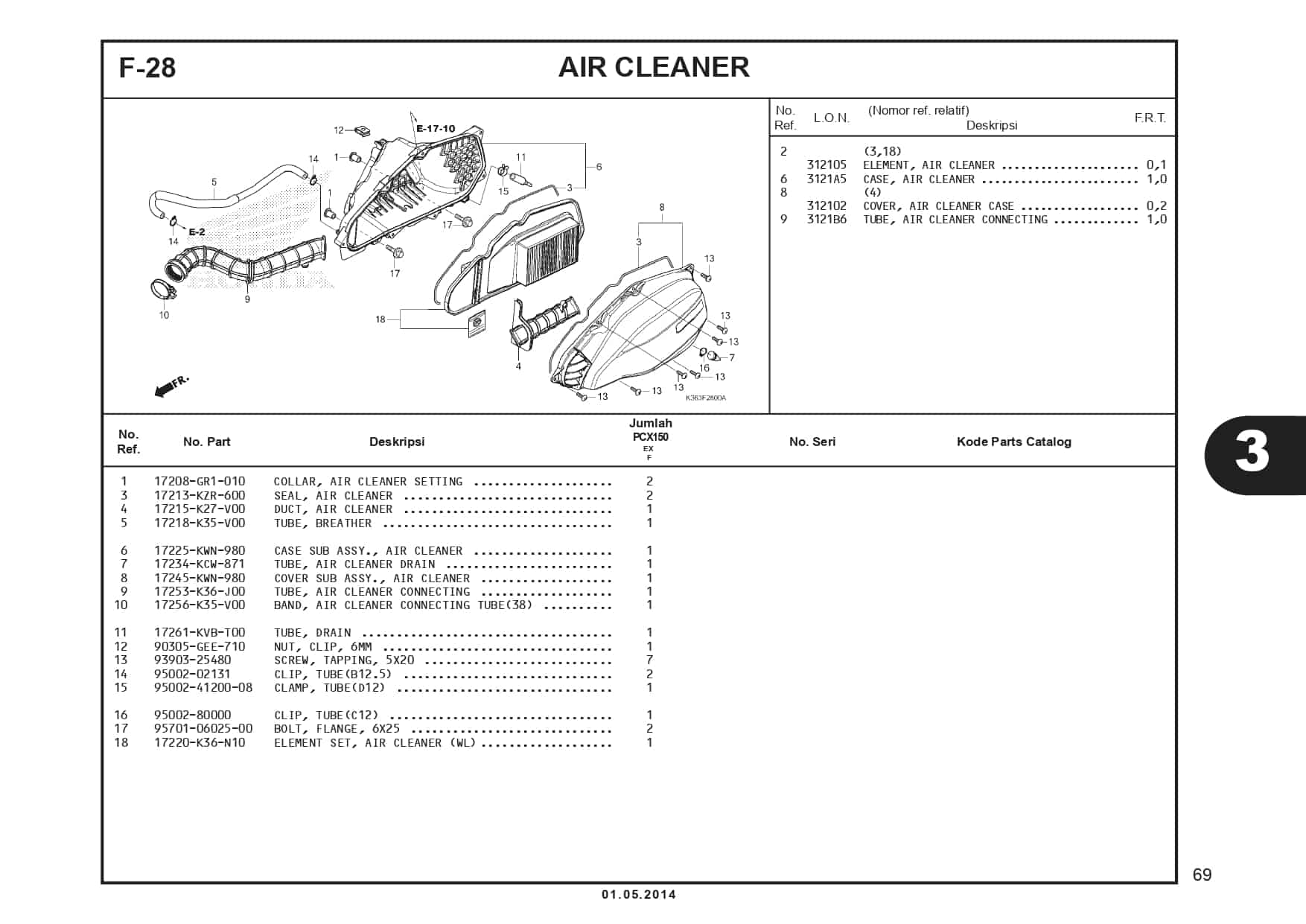

F-28 Air Cleaner – Katalog Honda PCX 150

#	Informasi Produk	Visual
1	COLLAR,AIR/C SET Part Number : `17208GR1010`
3	SEAL, AIR CLEANER Part Number : `17213KZR600`
4	DUCT AIR CLEANER Part Number : `17215K27V00`
5	TUBE BREATHER Part Number : `17218K35V00`
6	CASE SUB ASSY AIR CLEANER Part Number : `17225KWN980`
7	TUBE A/C DRAIN Part Number : `17234KCW871`
8	COVER SUB ASSY AIR CLEANER Part Number : `17245KWN980`
9	TUBE AIR CLEANER CONNECT Part Number : `17253K36J00`
10	BAND AIR CLEANER CONNECT Part Number : `17256K35V00`
11	TUBE DRAIN Part Number : `17261KVBT00`
12	NUT,CLIP 6MM Part Number : `90305GEE710`
13	SCREW,TAPP 5X2 Part Number : `9390325480`
14	9500202130 Part Number : `9500202131`
15	CLAMP D12 TUBE Part Number : `950024120008`
16	CLIP, TUBE(C12) Part Number : `9500280000`
17	BOLT FLANGE 6X25 Part Number : `957010602500`
18	ELEMENT SET, AIR CLEANER LBL Part Number : `17220KZR600`
18	ELEMENT SET, AIR CLEANER LBL Part Number : `17220K36N10`
