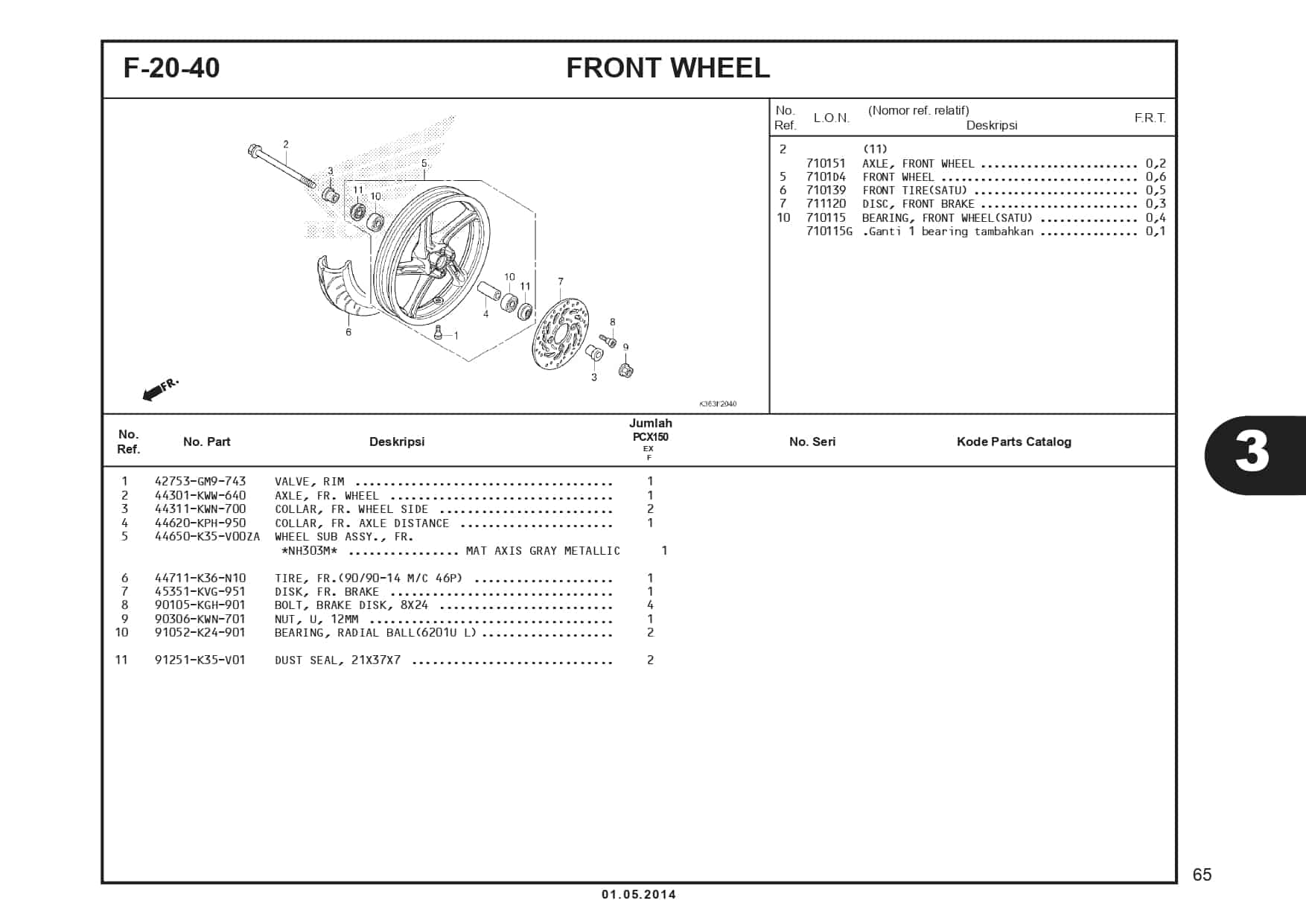

F-20-40 Front Wheel – Katalog Honda PCX 150

#	Informasi Produk	Visual
1	VALVE,RIM (INOUE) Part Number : `42753GM9743`
2	AXLE FR WHEEL Part Number : `44301KWW640`
3	COLLAR FR WHEEL SIDE Part Number : `44311KWN700`
4	COLLAR,FR AXLE DIST Part Number : `44620KPH950`
5	WHEEL SUB ASSY FR PRSNPB8 Part Number : `44650K35V00ZA`
6	TIRE FR (90/90-14M/C 46P) Part Number : `44711K36N10`
6	TIRE FR Part Number : `44711K97N02`
7	DISK, FR. BRAKE LBL Part Number : `45351KVG951`
9	NUT U 12MM Part Number : `90306KWN701`
10	BEARING RADIAL BALL Part Number : `91052K24903`
11	DUST SEAL 21X37X7(ARAI) Part Number : `91251K35V01`
