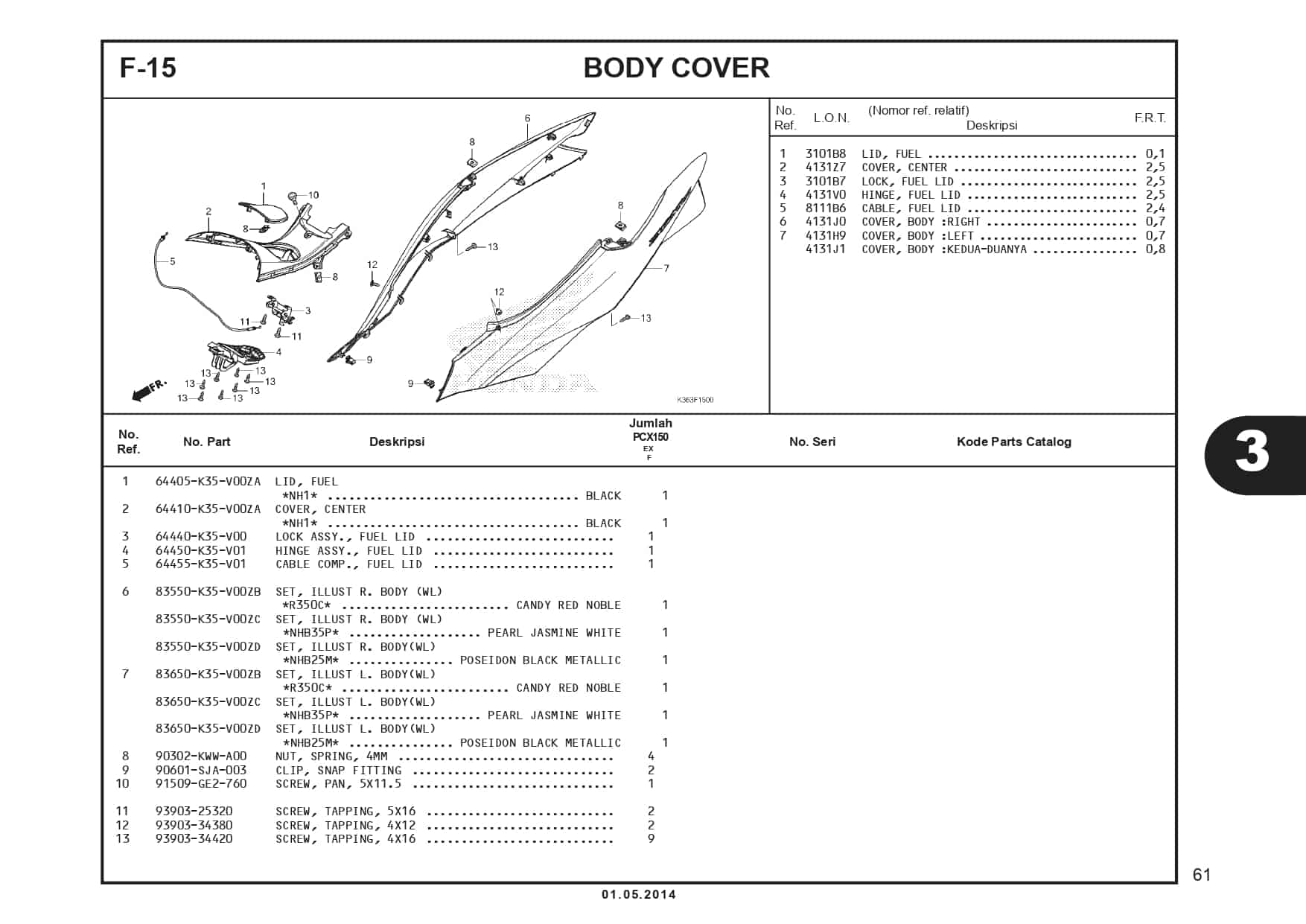

F-15 Body Cover – Katalog Honda PCX 150
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
LID FUEL |
64405K35V00ZA |
-
|
| 2 |
COVER CENTER |
64410K35V00ZA |
-
|
| 3 |
LOCK ASSY FUEL LID |
64440K35V00 |
|
| 4 |
HINGE ASSY, FUEL LID |
64450K35V01 |
|
| 4 |
HINGE ASSY, FUEL LID |
64450K35V02 |
|
| 5 |
CABLE COMP FUEL LID |
64455K35V01 |
-
|
| 6 |
SET ILLUST R CN NB RD |
83550K35V00ZB |
-
|
| 6 |
SET ILLUST R PL JS WH |
83550K35V00ZC |
-
|
| 6 |
SET ILLUST R PO BLK MT |
83550K35V00ZD |
-
|
| 7 |
SET ILLUST L CN NB RD |
83650K35V00ZB |
-
|
| 7 |
SET ILLUST L PL JS WH |
83650K35V00ZC |
-
|
| 7 |
SET ILLUST L PO BLK MT |
83650K35V00ZD |
-
|
| 8 |
NUT SPRING 4MM |
90302KWWA00 |
|
| 9 |
CLIP SNAP FITTING |
90601SJA003 |
-
|
| 10 |
SCREW PAN 5X11.5 |
91509GE2760 |
|
| 11 |
SCREW, TAPPING, 5X16 |
9390325320 |
|
| 12 |
SCREW TAPPING 4X12 |
9390334380 |
|
| 13 |
SCREW TAPPING 4X16 |
9390334420 |
|
| 13 |
SCREW TAPPING 4X16 |
9390334421 |
|
