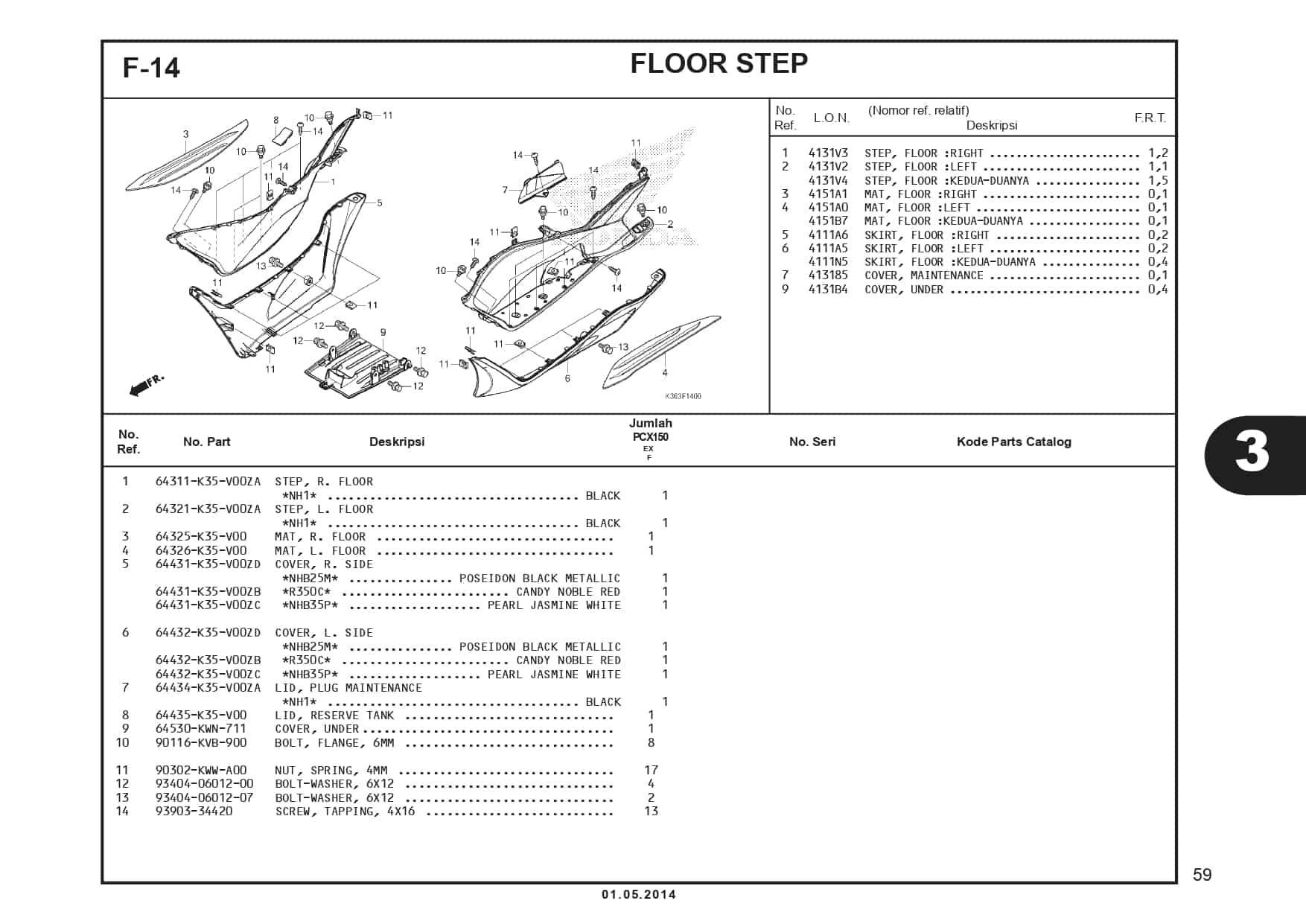

F-14 Floor Step – Katalog Honda PCX 150
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
STEP R FLOOR |
64311K35V00ZA |
-
|
| 2 |
STEP L FLOOR |
64321K35V00ZA |
-
|
| 3 |
MAT R FLOOR |
64325K35V00 |
-
|
| 4 |
MAT L FLOOR |
64326K35V00 |
-
|
| 5 |
COVER R SIDE PO BLK MT |
64431K35V00ZD |
-
|
| 5 |
COVER R SIDE CN NB RD |
64431K35V00ZB |
-
|
| 5 |
COVER R SIDE PL JS WH |
64431K35V00ZC |
-
|
| 6 |
COVER L SIDE PO BLK MT |
64432K35V00ZD |
-
|
| 6 |
COVER L SIDE CN NB RD |
64432K35V00ZB |
-
|
| 6 |
COVER L SIDE PL JS WH |
64432K35V00ZC |
-
|
| 7 |
LID PLUG MAINTENANCE |
64434K35V00ZA |
-
|
| 8 |
LID RESERVE TANK |
64435K35V00 |
-
|
| 9 |
COVER UNDER |
64530KWN711 |
-
|
| 10 |
BOLT FLANGE 6MM |
90116KVB900 |
|
| 11 |
NUT SPRING 4MM |
90302KWWA00 |
|
| 12 |
BOLT WASHER 6X12 |
934040601200 |
|
| 13 |
BOLT WASHER 6X12 |
934040601207 |
|
| 14 |
SCREW TAPPING 4X16 |
9390334420 |
|
| 14 |
SCREW TAPPING 4X16 |
9390334421 |
|
