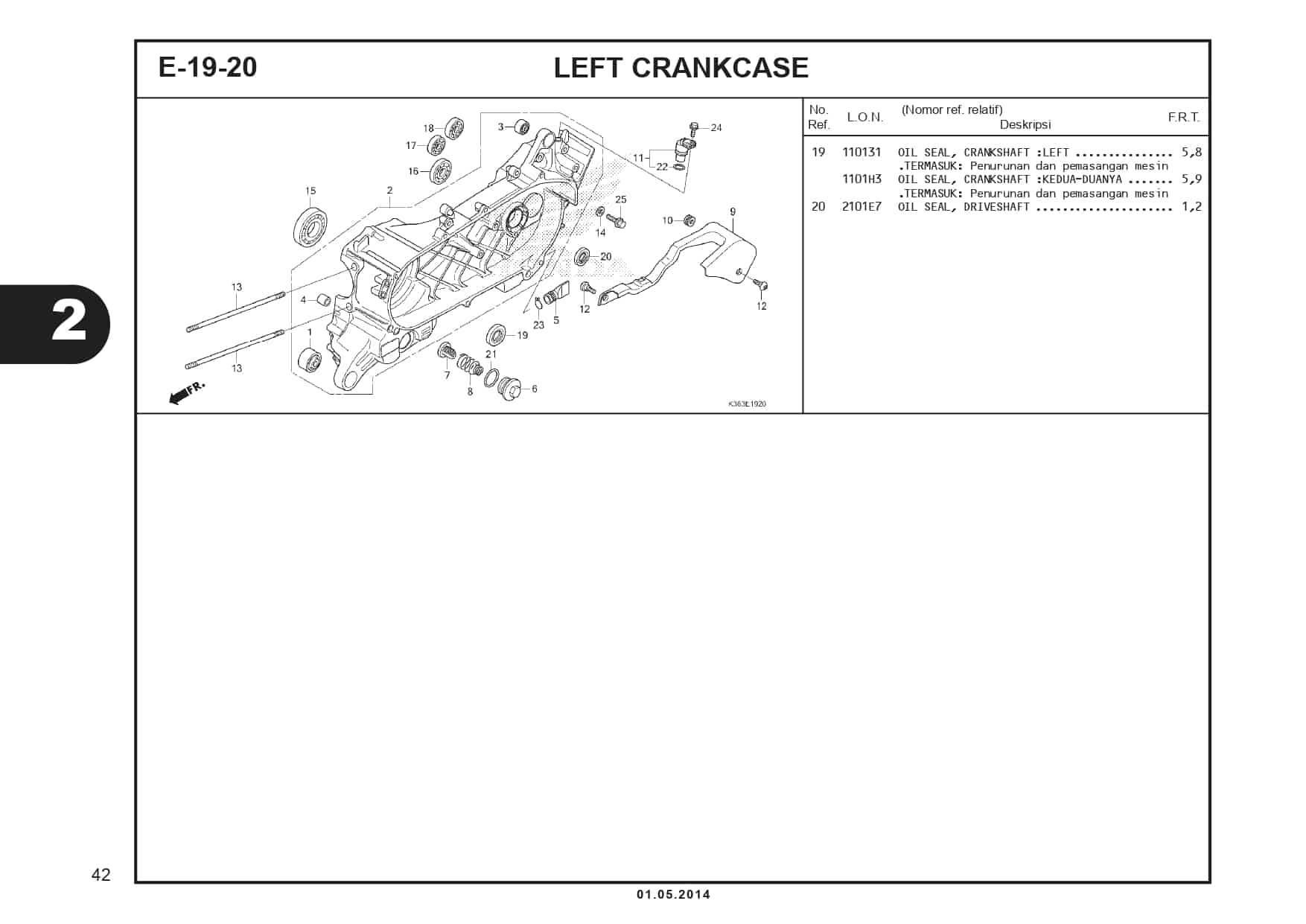

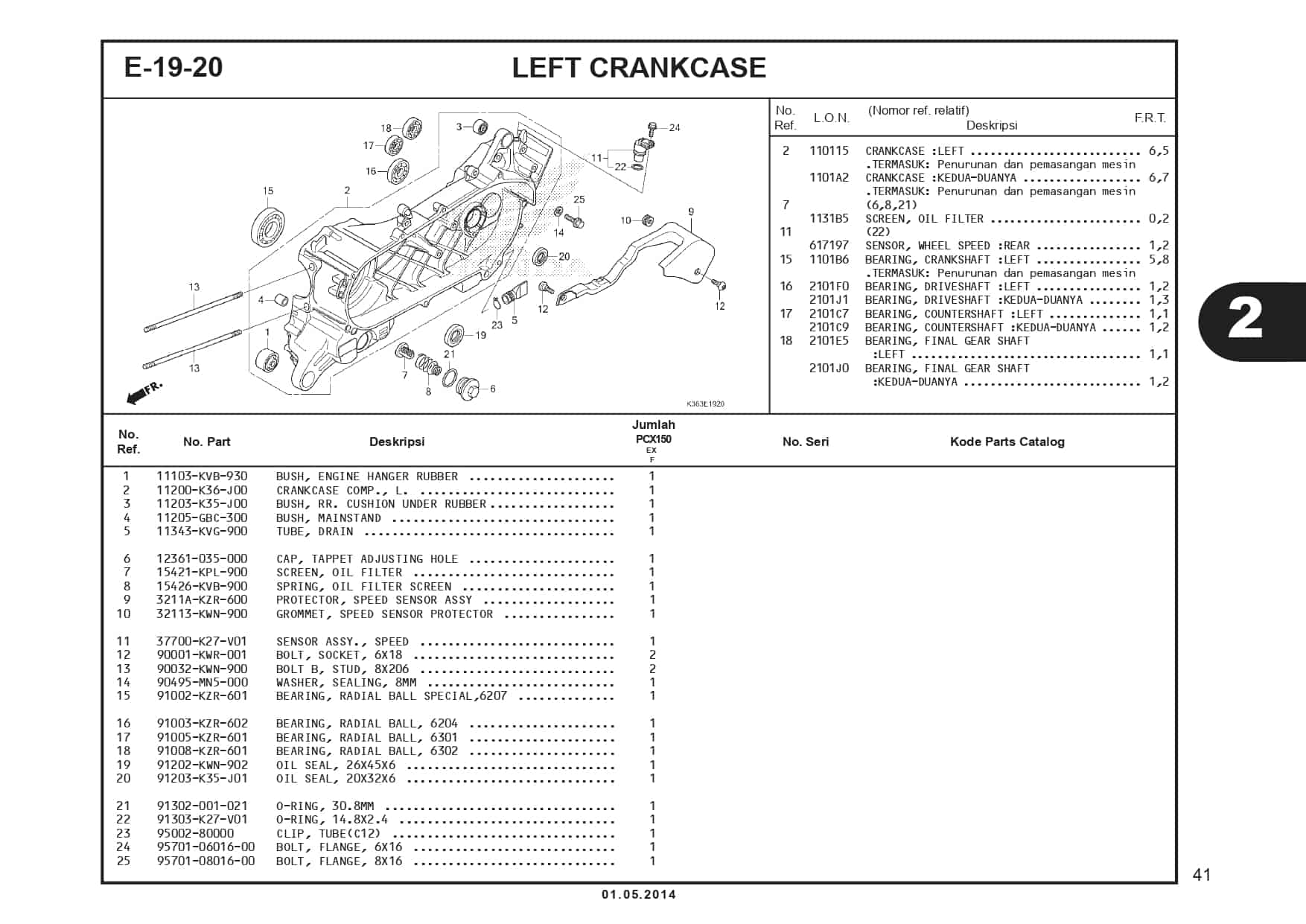

E-19-20 Left CrankCase – Katalog Honda PCX 150

#	Informasi Produk	Visual
1	RUB.BUSH,ENG.HANGER Part Number : `11103KVB930`
2	CRANKCASE COMP L Part Number : `11200K36J00`
3	BUSH RR CUSHION UNDER RBR Part Number : `11203K35J00`
3	BUSH RR CUSHION UNDER RBR Part Number : `11203KVB901`
4	BUSH M STAND Part Number : `11205GBC300`
5	TUBE,DRAIN Part Number : `11343KVG900`
6	CAP TAPPET Part Number : `12361035000`
7	SCREEN,OIL FILTER Part Number : `15421KPL900`
8	SPRING OIL FILTER SCREEN Part Number : `15426KVB900`
9	PROTR,SP SENSOR ASSY Part Number : `3211AKZR600`
10	GROMMET,SP SENSOR PROTR Part Number : `32113KWN900`
11	SENSOR ASSY SPEED Part Number : `37700K27V01`
12	BOLT SOCKET 6X18 Part Number : `90001KWR000`
13	BOLT,B STUD 8X206 Part Number : `90032KWN900`
13	BOLT,B STUD 8X206 Part Number : `90032KWN901`
14	WASHER,SEALING 8MM Part Number : `90495MN5000`
15	BEARING RADIAL BALL 6207 Part Number : `91002KZR601`
15	BEARING RADIAL BALL 6207 Part Number : `91002KZR602`
16	BEARING RADIAL BALL 6204 Part Number : `91003KZR602`
17	BEARING RADIAL BALL 6301 Part Number : `91005KZR601`
18	BEARING RADIAL BALL 6302 Part Number : `91008KZR601`
19	OIL SEAL 26X45X6 Part Number : `91202KWN902`
19	OIL SEAL 26X45X6 Part Number : `91202KWN901`
20	OIL SEAL 20X32X6 Part Number : `91203K35J01`
21	O-RING 30.8 MM Part Number : `91302001020`
22	O-RING 14.8X2.4 Part Number : `91303K27V01`
23	CLIP, TUBE(C12) Part Number : `9500280000`
24	BOLT FLANGE 6X16 Part Number : `957010601600`
25	BOLT, FLANGE 8X16 Part Number : `957010801600`
