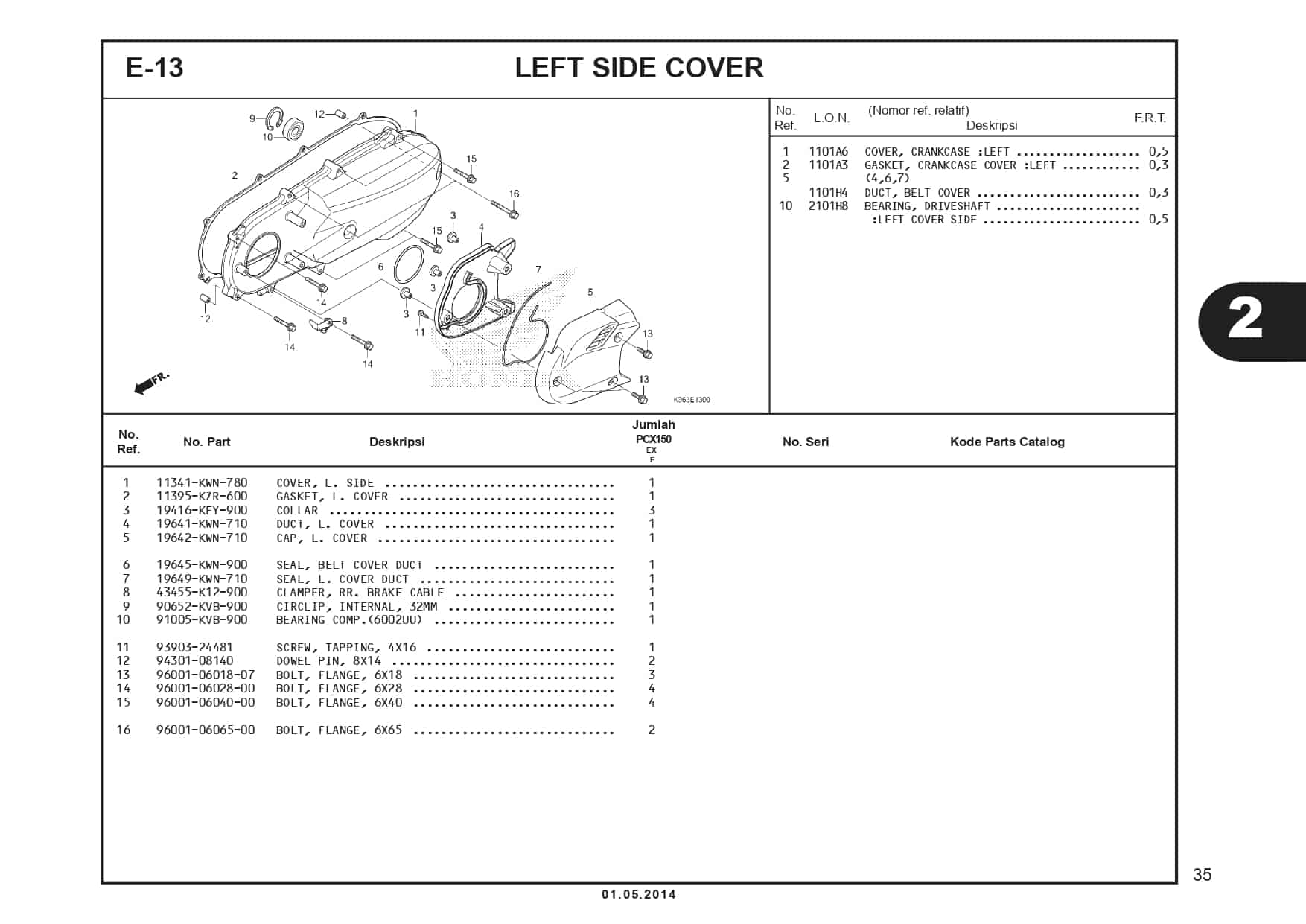

E-13 Left Side Cover – Katalog Honda PCX 150

#	Informasi Produk	Visual
1	COVER, L. SIDE Part Number : `11341KWN780`
2	GASKET, L. COVER Part Number : `11395KZR600`
3	COLLAR Part Number : `19416KEY900`
4	DUCT, L. COVER Part Number : `19641KWN710`
5	CAP, L. COVER Part Number : `19642KWN710`
6	SEAL,BELT COVER DUCT Part Number : `19645KWN900`
7	SEAL, L. COVER DUCT Part Number : `19649KWN710`
8	CLAMPER RR BRK CABLE Part Number : `43455K12900`
9	CIRCLIP IN.32 Part Number : `90652KVB900`
10	BEARING COMP Part Number : `91005KVB900`
10	Brg Comp Drive Shaft Part Number : `91005KVBN50`
11	SCREW TAPPING 4X16 Part Number : `9390324480`

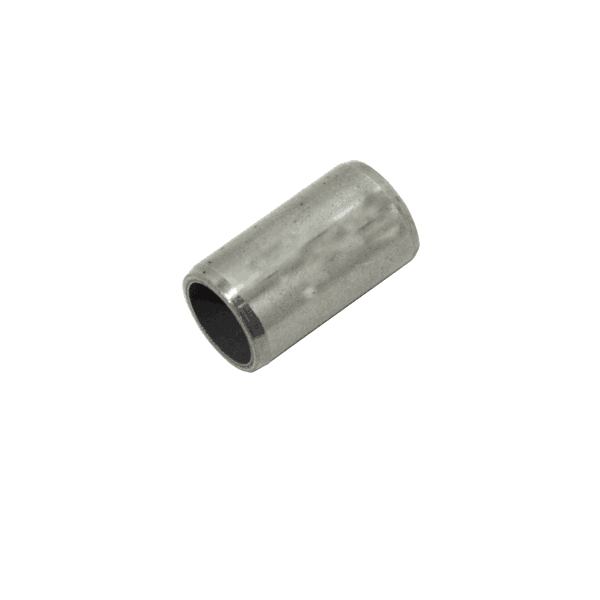

12	PIN DOWEL 8X14 Part Number : `9430108140`
13	BOLT,FLANGE 6X18 Part Number : `960010601807`
14	BOLT FLANGE 6X28 Part Number : `960010602800`
15	BOLT FLANGE 6X40 Part Number : `960010604000`
16	BOLT FLANGE 6X65 Part Number : `960010606500`
