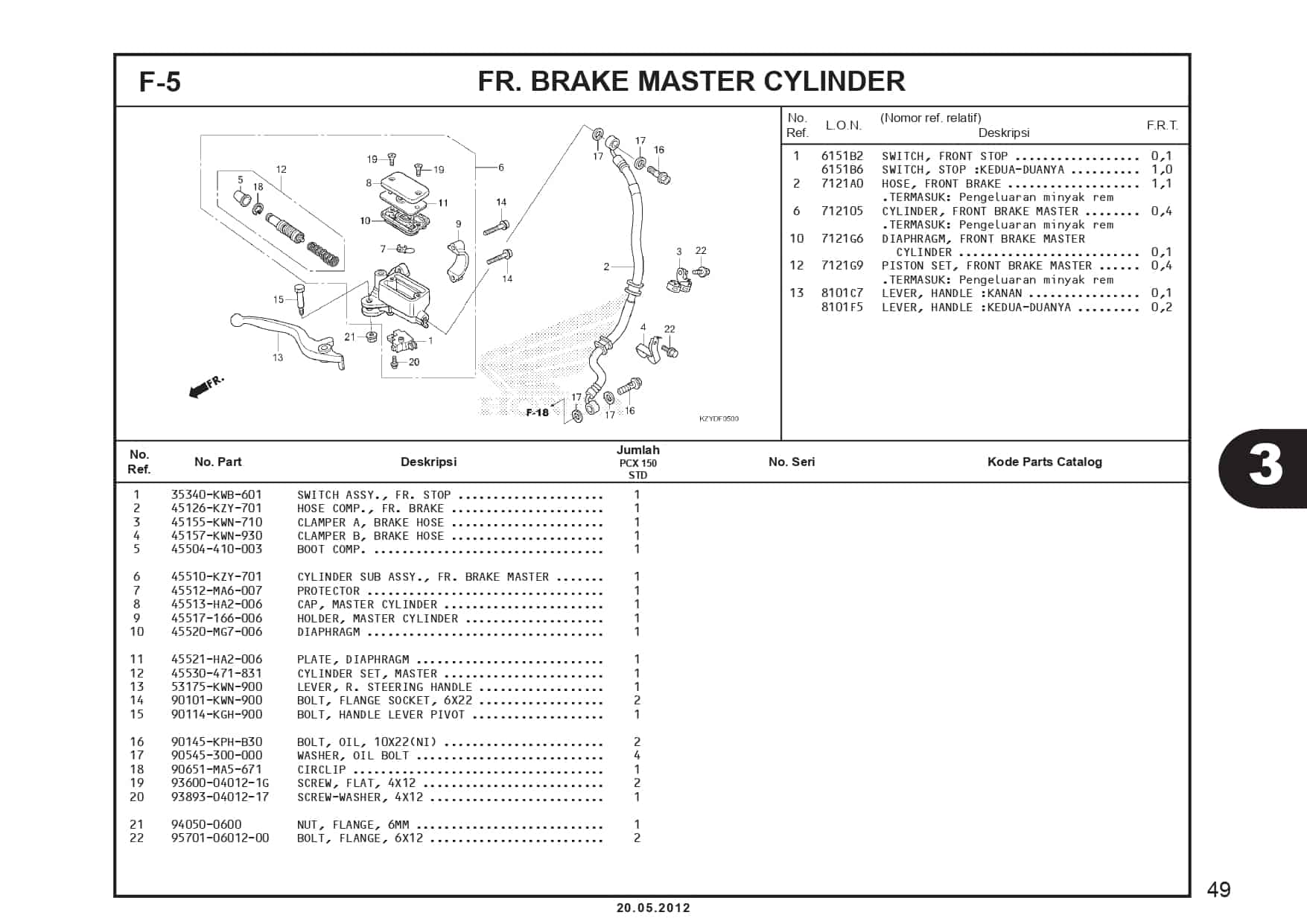

F-5 FR. Brake Master Cylinder – Katalog Honda PCX 150 KZY

#	Informasi Produk	Visual
1	SWITCH FR STOP ASSY Part Number : `35340KWB601`
2	HOSE COMP FR. BRAKE Part Number : `45126KZY701`
3	CLAMPER A BRAKE HOSE Part Number : `45155KWN710`
4	CLAMPER B,BRK HOSE Part Number : `45157KWN930`
5	BOOT COMP Part Number : `45504410003`
6	CYLINDER SUB ASSY FR. BRAKE MASTER Part Number : `45510KZY702`
7	PROTECTOR Part Number : `45512MA6006`
8	CAP,MASTER CYL Part Number : `45513HA2006`
9	HOLDER MASTER CYL Part Number : `45517166006`
10	DIAPHRAGM Part Number : `45520MG7006`
11	PLATE,DIAPHRAGM Part Number : `45521HA2006`
12	CYLINDER SET,MAS Part Number : `45530471831`
14	BOLT,FLANGE SOCKET 6X22 Part Number : `90101KWN900`
15	BOLT HANDLE LEVER Part Number : `90114KGH900`
16	BOLT OIL, 10X22 (NISSIN) Part Number : `90145KPHB30`
17	WASHER OIL BOLT Part Number : `90545300000`
18	CIRCLIP Part Number : `90651MA5671`
19	SCREW FLAT, 4X12 Part Number : `93600040121G`
20	SCREW WASHER 4X12 Part Number : `938930401217`
21	NUT FLANGE, 6MM Part Number : `9405006000`
22	BOLT FLANGE 6X12 Part Number : `957010601200`
