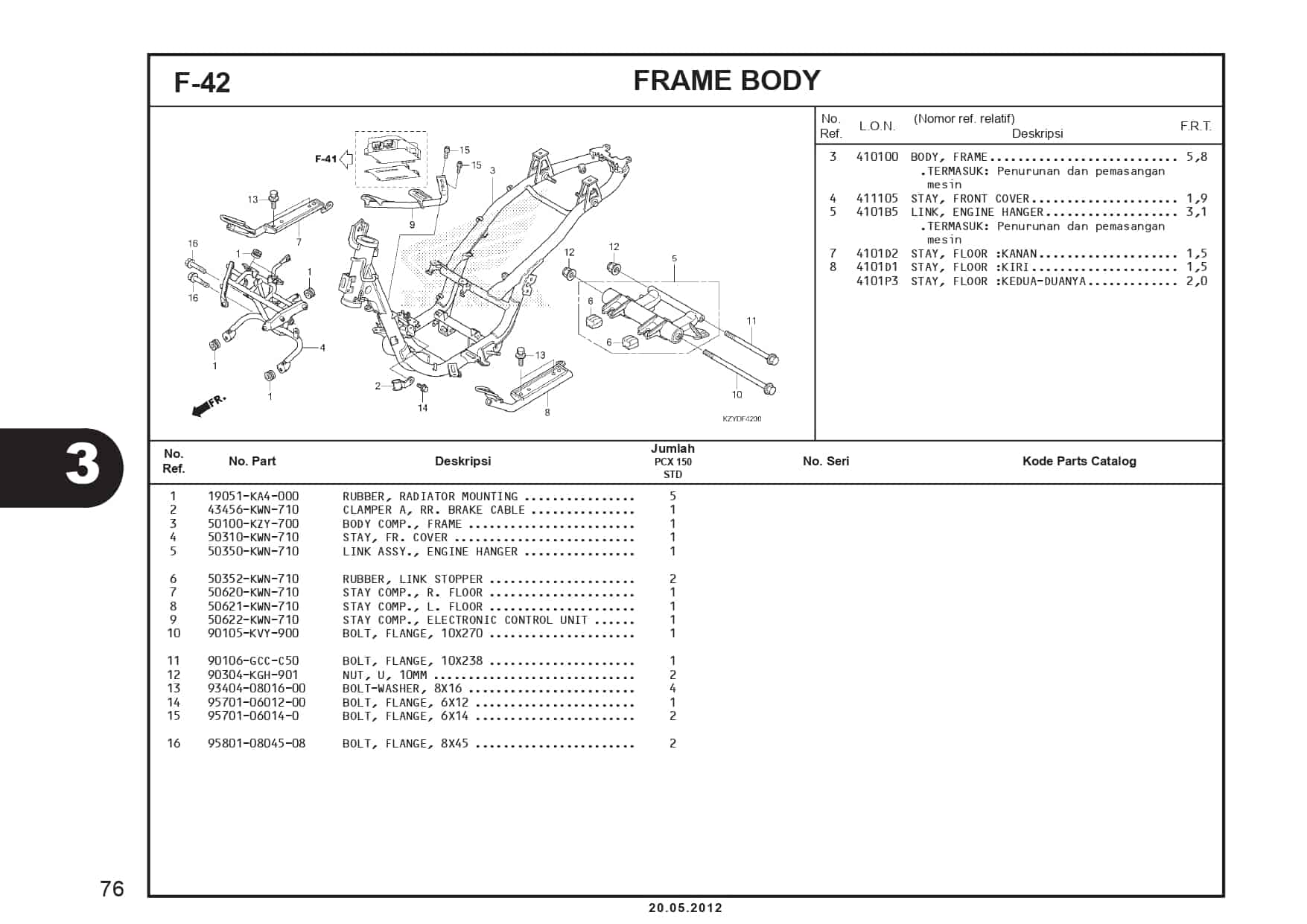

F-42 Frame Body – Katalog Honda PCX 150 KZY
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
RUBBER,RAD MOUNT |
19051KA4000 |
-
|
| 2 |
CLAMPER A RR BRAKE CABLE |
43456KWN710 |
-
|
| 3 |
BODY COMP FRAME |
50100KZY700 |
-
|
| 4 |
STAY, FR. COVER |
50310KWN710 |
-
|
| 5 |
LINK ASSY ENGINE HANGER |
50350KWN710 |
-
|
| 6 |
RUBBER, LINK STOPPER |
50352KWN710 |
-
|
| 7 |
STAY COMP R. FLOOR |
50620KWN710 |
-
|
| 8 |
STAY COMP L. FLOOR |
50621KWN710 |
-
|
| 9 |
STAY COMP ELECT CONTROL |
50622KWN710 |
-
|
| 10 |
BOLT FLANGE 10X270 |
90105KVY900 |
|
| 11 |
BOLT, FLANGE, 10X238 |
90106GCCC50 |
|
| 12 |
NUT U10MM |
90304KGH901 |
|
| 13 |
BOLT-WASH.,8X16 |
934040801600 |
-
|
| 14 |
BOLT FLANGE 6X12 |
957010601200 |
|
| 15 |
BOLT FLANGE 6X14 |
957010601400 |
|
| 16 |
BOLT, FLANGE, 8X45 |
958010804508 |
|
