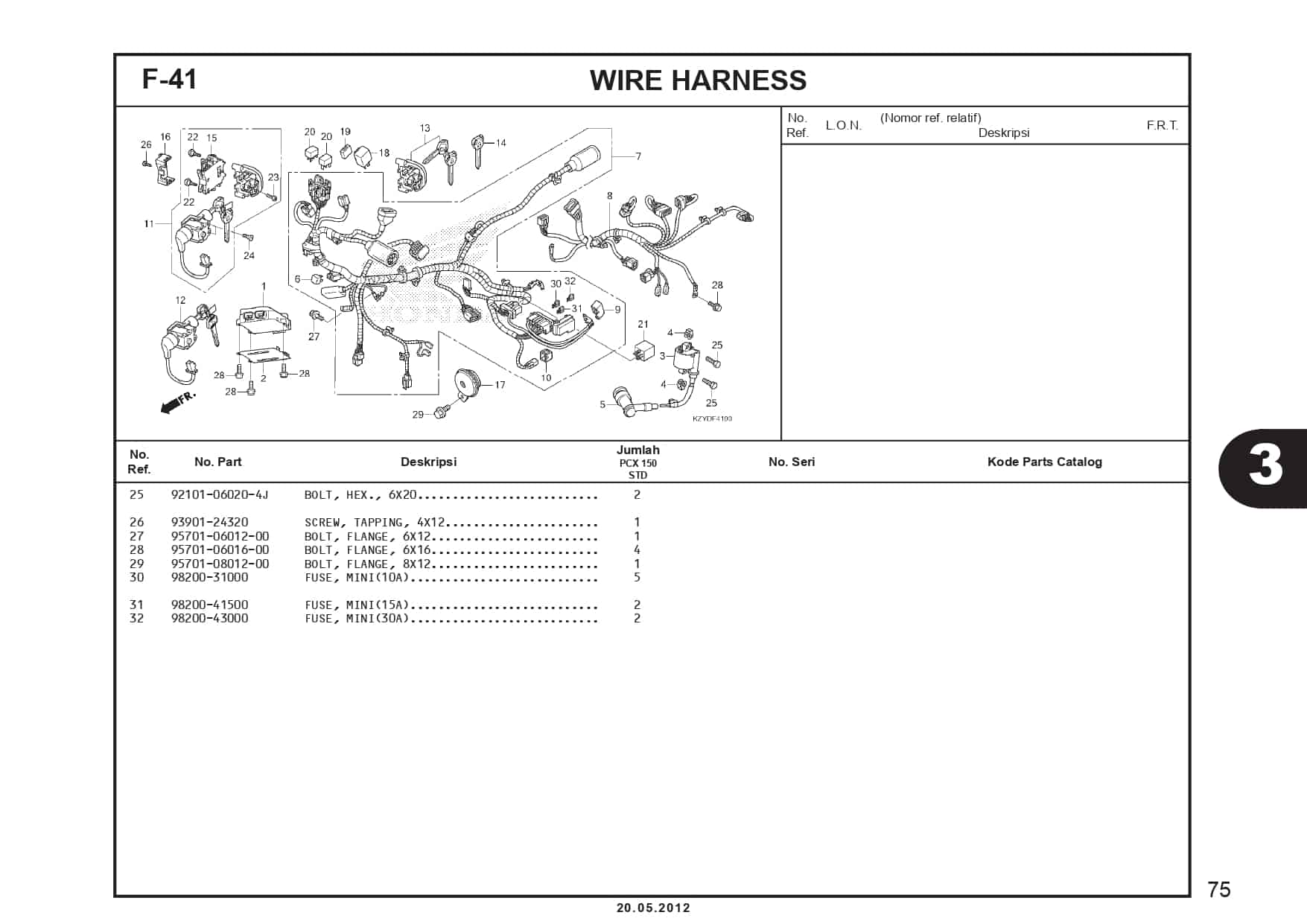

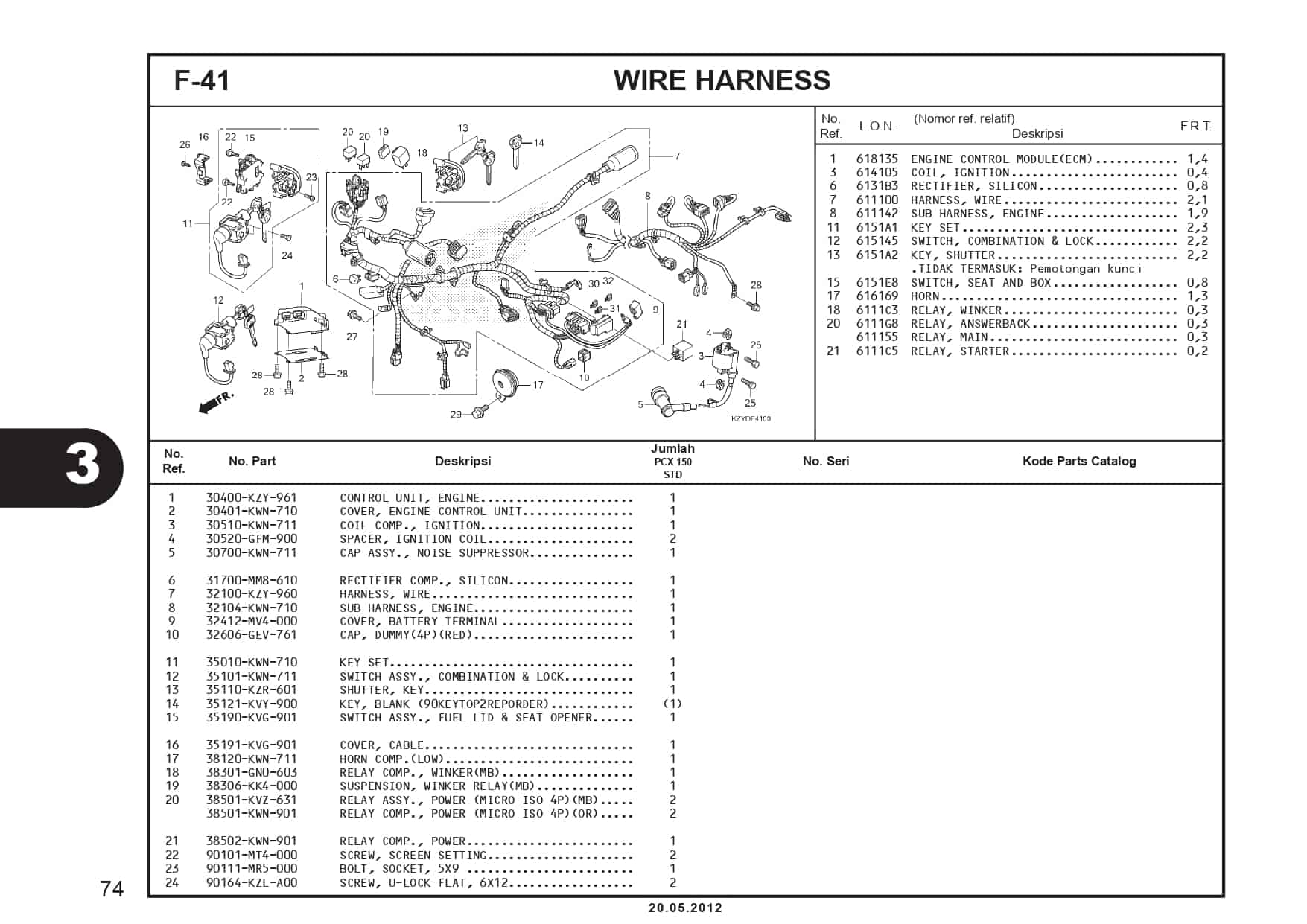

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | ENG CONTROL UNIT | 30400KZY961 | - |
| 2 | CVR ENG CONT UNIT | 30401KWN710 | - |
| 3 | COIL COMP IGNITION | 30510KWN711 | - |
| 4 | SPACER IGN COIL | 30520GFM900 |
|
| 5 | CAP ASSY NOISE SUP | 30700KWN711 |
|
| 6 | RECT.COMP.,SILICON | 31700MM8610 | - |
| 7 | HARNESS WIRE | 32100KZY960 | - |
| 8 | SUB HARNESS, ENGINE | 32104KWN710 | - |
| 9 | COVER, BAT TERMINAL | 32412MV4000 |
|
| 10 | DUMMY,WPC 4P 090 M (RED) | 32606GEV761 |
|
| 11 | KEY SET | 35010KWN710 | - |
| 12 | SWITCH ASSY COMB | 35101KWN711 | - |
| 13 | SHUTTER, KEY | 35110KZR601 |
|
| 14 | KEY BLANK | 35121KVY900 |
|
| 15 | SW ASSY,FL LID&SEAT OPN | 35190KVG901 | - |
| 16 | COVER,CABLE | 35191KVG901 |
|
| 17 | HORN COMP.(LOW) | 38120KWN711 | - |
| 18 | RELAY COMP WINKER | 38301GN0603 | - |
| 19 | SUSPENSION RELAY | 38306KK4000 |
|
| 20 | RELAY COMP,MICROISO LOW HIGHT | 38501KVZ631 |
|
| 20 | RELAY COMP., POWER | 38501KWN901 |
|
| 21 | RELAY COMP,POWER | 38502KWN901 |
|
| 22 | SCREW,SCREEN SET | 90101MT4000 |
|
| 23 | BOLT,SOCKET,5X9 | 90111MR5000 |
|
| 24 | SCREW U-LOCK FLAT 6X12 | 90164KZLA00 |
|
| 25 | BOLT HEX 6X20 | 92101060204J |
|
| 26 | SCREW,TAPP 4X12 | 9390124320 |
|
| 27 | BOLT FLANGE 6X12 | 957010601200 |
|
| 28 | BOLT FLANGE 6X16 | 957010601600 |
|
| 29 | BOLT, FLANGE, 8X12 | 957010801200 |
|
| 30 | FUSE, BLADE (10A) | 9820031000 | - |
| 31 | FUSE F (15A) | 9820041500 |
|
| 32 | FUSE 30A (MINI) | 9820043000 |
|
