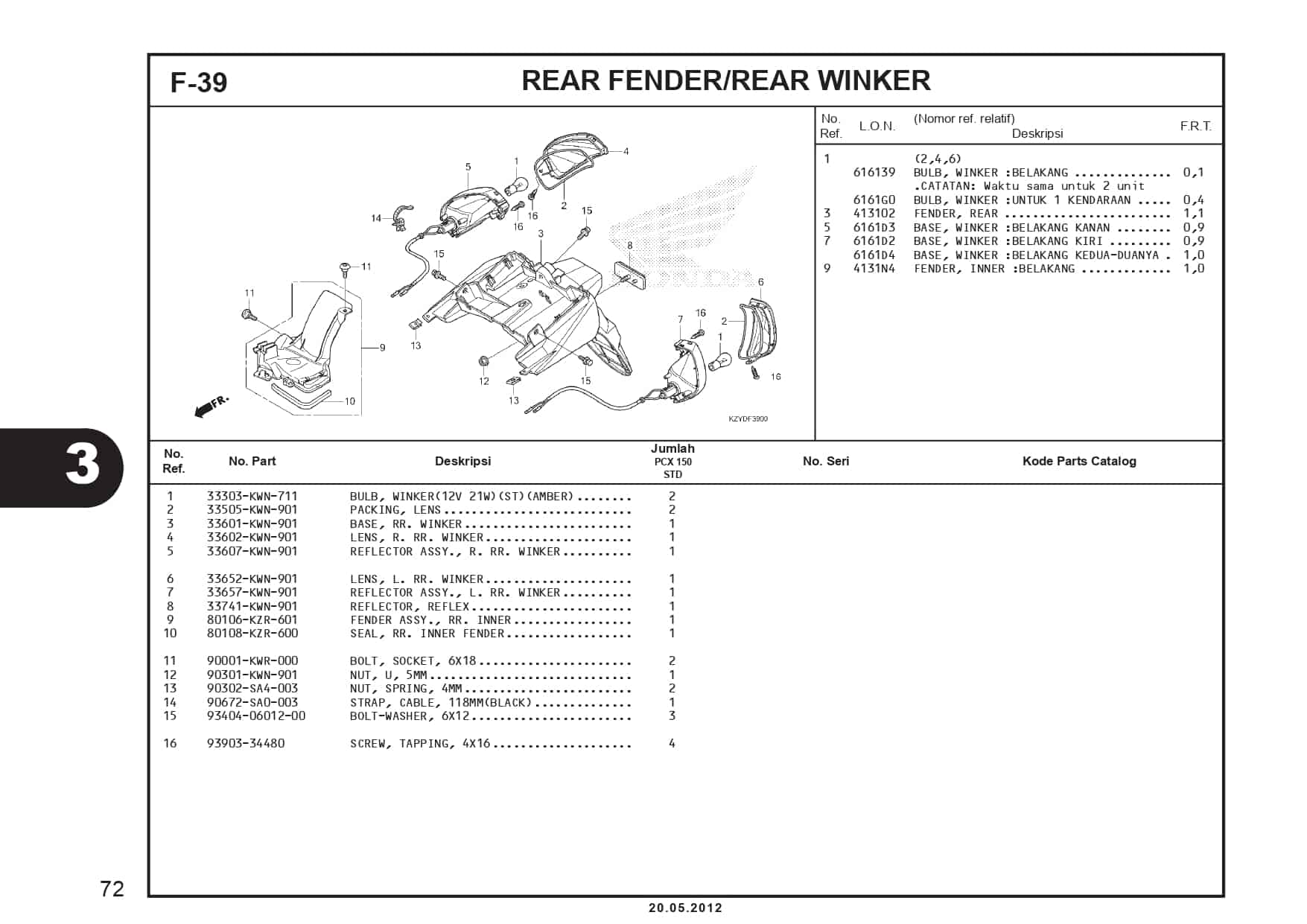

F-39 Rear Fender – Katalog Honda PCX 150 KYZ

#	Informasi Produk	Visual
1	BULB, WINKER(12V 21W) Part Number : `33303KWN711`
2	PACKING, LENS Part Number : `33505KWN901`
3	BASE,RR WINKER Part Number : `33601KWN901`
4	LENS,RR WINKER R Part Number : `33602KWN901`
5	REFLECTOR ASSY,RR WINKER R Part Number : `33607KWN901`
6	LENS,RR WINKER L Part Number : `33652KWN901`
7	REFLECTOR ASSY,RR WINKER L Part Number : `33657KWN901`
8	REFLEX,REFLECTOR Part Number : `33741KWN901`
10	SEAL, RR. INNER FENDER Part Number : `80108KZR600`
11	BOLT, SOCKET, 6X18 Part Number : `90001KWR000`
12	NUT, U, 5MM Part Number : `90301KWN901`
13	NUT, SPRING, 4MM Part Number : `90302SA4003`
14	CABLE,STRAP Part Number : `90672SA0003`
15	BOLT WASHER 6X12 Part Number : `934040601200`
16	SCREW TAPPING 4X16 Part Number : `9390334380`
