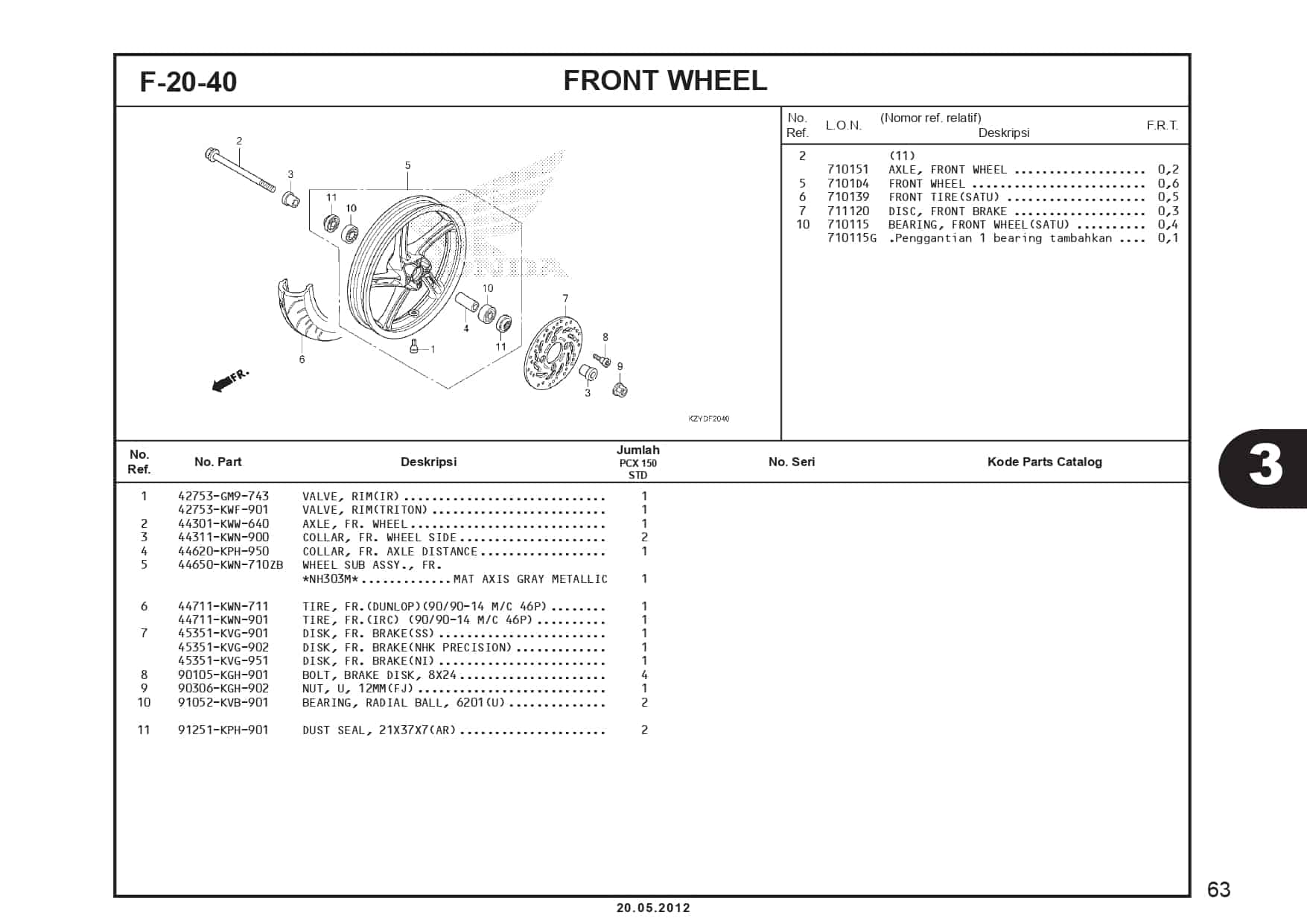

F-20-40 Front Wheel – Katalog Honda PCX 150 KZY

#	Informasi Produk	Visual
1	VALVE,RIM (INOUE) Part Number : `42753GM9743`
1	VALVE,RIM(TRITON) Part Number : `42753KWF901`
2	AXLE FR WHEEL Part Number : `44301KWW640`
3	COLLAR,FR WHEEL SIDE Part Number : `44311KWN900`
4	COLLAR,FR AXLE DIST Part Number : `44620KPH950`
5	WHEEL SUB ASSSY. FR Part Number : `44650KWN711ZB`
6	TIRE, FR (90/90-14 46P) Part Number : `44711KWN901`
7	DISK,FR BRAKE Part Number : `45351KVG901`
7	DISK,FR BRAKE Part Number : `45351KVG902`
7	DISK, FR. BRAKE LBL Part Number : `45351KVG951`
9	NUT U, 12MM Part Number : `90306KGH902`
9	NUT U, 12MM Part Number : `90306KGH901`
10	BEARING,RADIAL BALL 6201 Part Number : `HB6201`
11	DUST SEAL 21 X 37 X 7 Part Number : `91251KPH901`
