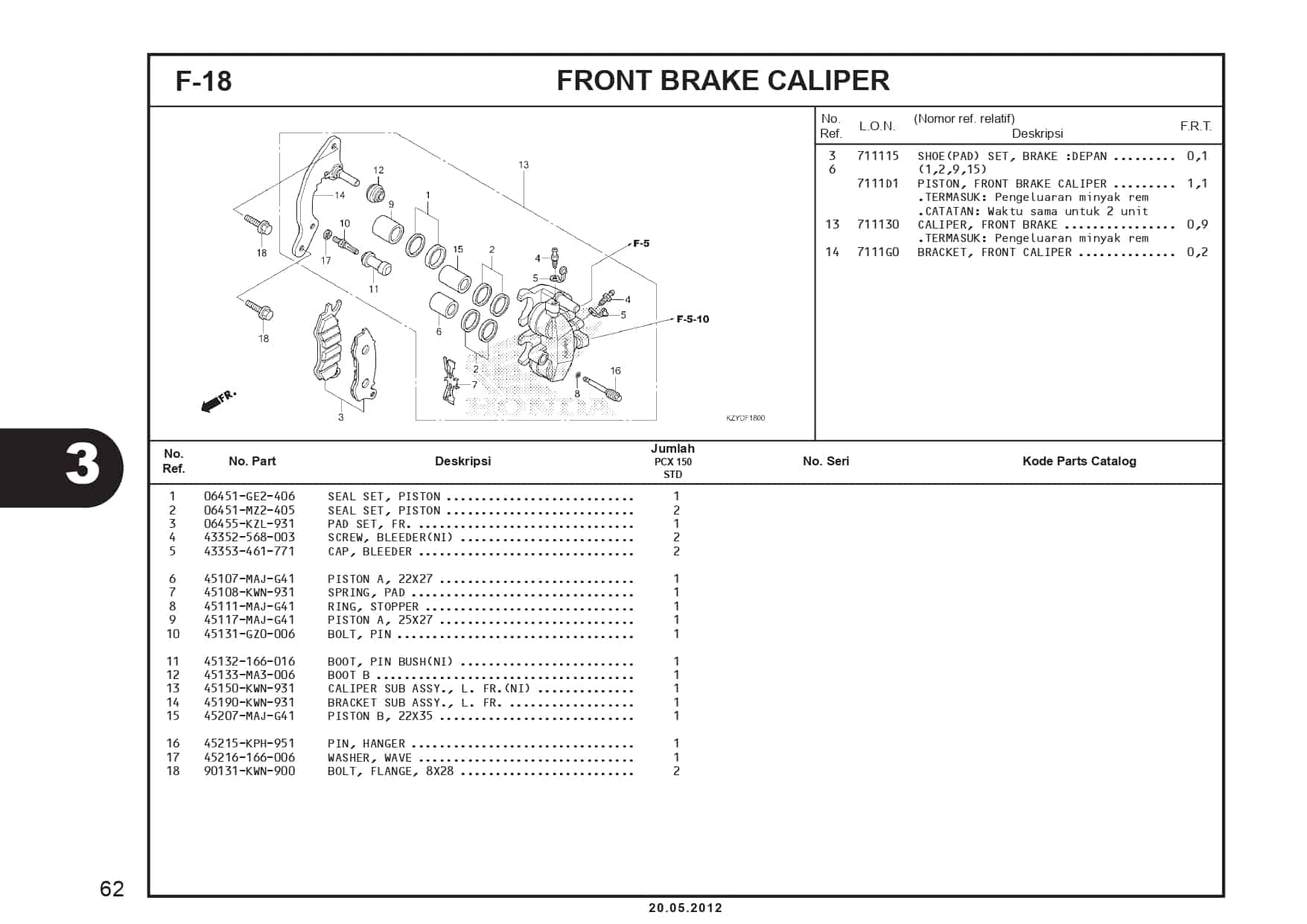

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SEAL SET,PISTON | 06451GE2406 | - |
| 2 | SEAL SET,PISTON | 06451MZ2405 |
|
| 3 | PAD SET, FR | 06455KZL931 |
|
| 3 | PAD SET, FR | 06455KZL932 |
|
| 4 | SCREW,BLEEDER | 43352568003 |
|
| 5 | CAP,BLEEDER | 43353461771 |
|
| 6 | PISTON,22 A | 45107MAJG41 | - |
| 7 | PAD SPRING | 45108KWN931 | - |
| 8 | O-RING,2.5X1.5 | 45111MAJG41 |
|
| 9 | PISTON,25 A | 45117MAJG41 | - |
| 10 | PIN,BOLT | 45131GZ0006 |
|
| 11 | BUSH PIN | 45132166016 |
|
| 12 | BOOT B,PIN | 45133MA3006 |
|
| 13 | CALIPER SUB ASSY | 45150KWN932 | - |
| 14 | BRKT SUBASSY,L FR | 45190KWN931 | - |
| 15 | PISTON,22 B | 45207MAJG41 | - |
| 16 | PIN HANGER | 45215KPH951 |
|
| 17 | WASHER,WAVE | 45216166006 |
|
| 18 | BOLT,FLANGE,8X28 | 90131KWN900 | - |
