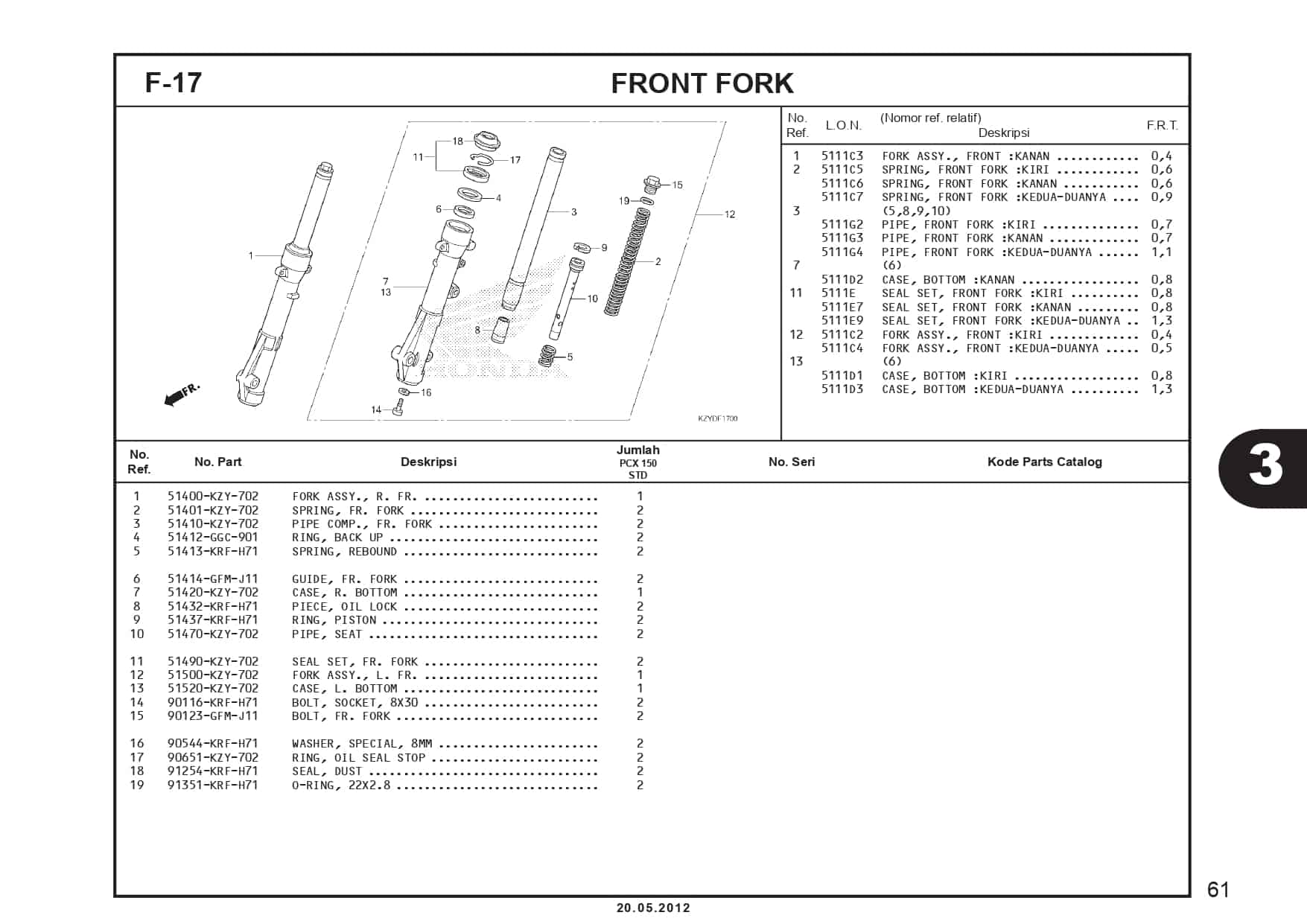

F-17 Front Fork – Katalog Honda PCX 150 KZY

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 FORK ASSY R. FR. 51400KZY702 -
2 SPRING, FR. FORK 51401KZY702 -
3 PIPE COMP., FR. FORK 51410KZY702 -
4 WASHER,OIL SEAL 51412GGC901 WASHER,OIL SEAL
5 SPRING, REBOUND 51413KRFH71 -
6 GUIDE, FR. FORK 51414GFMJ11 -
7 CASE, R. BOTTOM 51420KZY702 -
8 PIECE, OIL LOCK 51432KRFH71 PIECE, OIL LOCK
9 RING, PISTON 51437KRFH71 RING, PISTON
10 PIPE, SEAT 51470KZY702 -
11 SEAL SET, FR. FORK 51490KZY702 -
12 FORK ASSY L. FR. 51500KZY702 -
13 CASE, L. BOTTOM 51520KZY702 -
14 BOLT, SOCKET, 8X30 90116KRFH71 BOLT, SOCKET, 8X30
15 BOLT, FR. FORK 90123GFMJ11 BOLT, FR. FORK
16 WASHER, SPECIAL, 8MM 90544KRFH71 WASHER, SPECIAL, 8MM
17 RING, OIL SEAL STOP 90651KZY702 RING, OIL SEAL STOP
18 SEAL, DUST 91254KRFH71 SEAL, DUST
19 O-RING, 22X2.8 91351KRFH71 O-RING, 22X2.8
