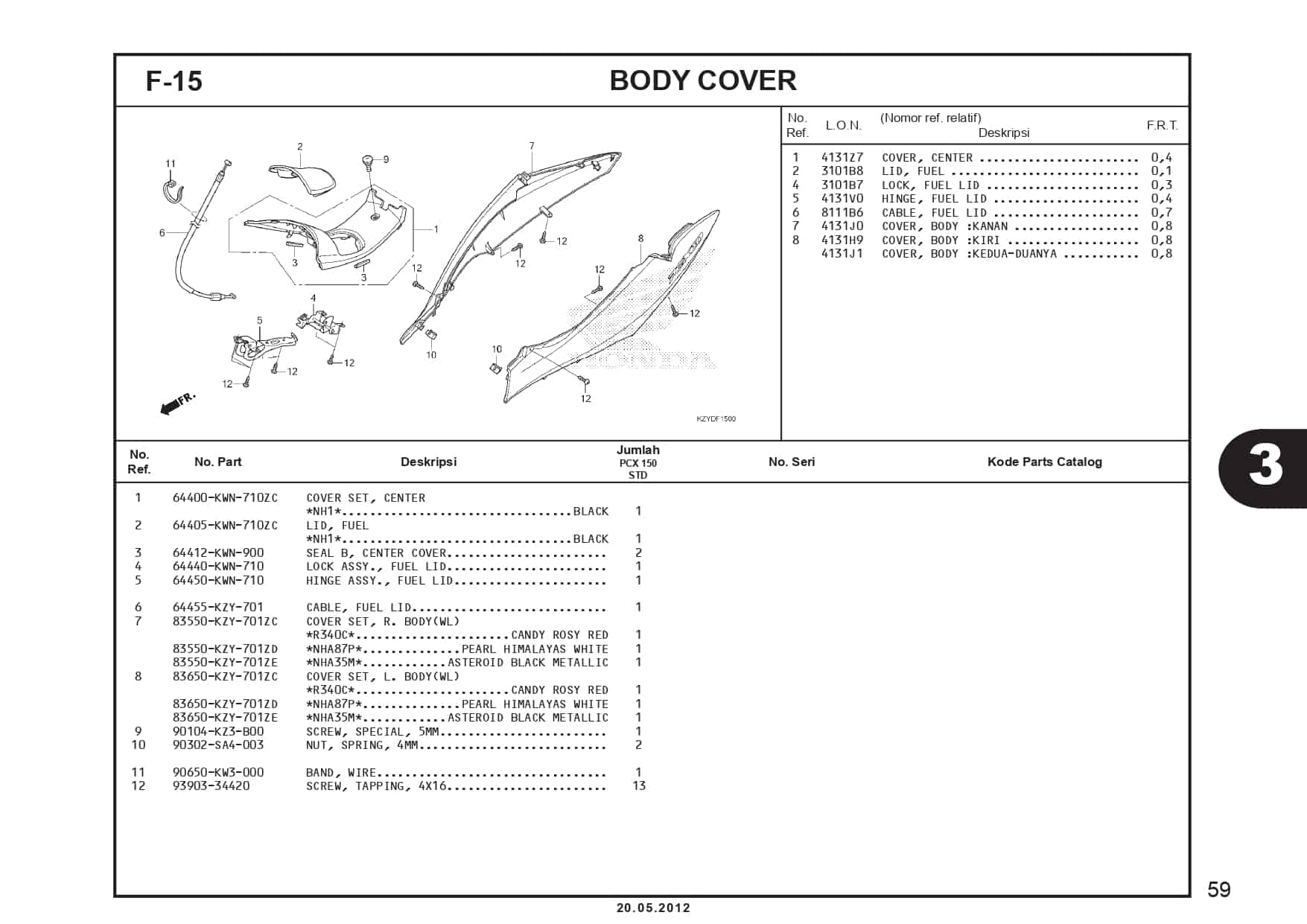

F-15 Body Cover – Katalog Honda PCX 150 KZY

#	Informasi Produk	Visual
1	COVER SET, CENTER Part Number : `64400KWN710ZC`
3	SEAL B, CENTER COVER Part Number : `64412KWN900`
4	LOCK ASSY., FUEL LID Part Number : `64440KWN710`
5	HINGE ASSY., FUEL LID Part Number : `64450KWN710`
6	CABLE, FUEL LID Part Number : `64455KZY701`
7	ST ILL R BD CVR CDY RS RD Part Number : `83550KZY701ZC`
7	ST ILL R BD CVR PR HIM WH Part Number : `83550KZY701ZD`
7	ST ILL R BD CVR AS BK MET Part Number : `83550KZY701ZE`
8	ST ILL L BD CVR CDY RS RD Part Number : `83650KZY701ZC`
8	ST ILL L BD CVR PR HIM WH Part Number : `83650KZY701ZD`
8	ST ILL L BD CVR AS BK MET Part Number : `83650KZY701ZE`
9	SCREW,SPECIAL,5MM Part Number : `90104KZ3B00`
10	NUT, SPRING, 4MM Part Number : `90302SA4003`
11	BAND, WIRE Part Number : `90650KW3000`
12	SCREW TAPPING 4X16 Part Number : `9390334420`
12	SCREW TAPPING 4X16 Part Number : `9390334421`
