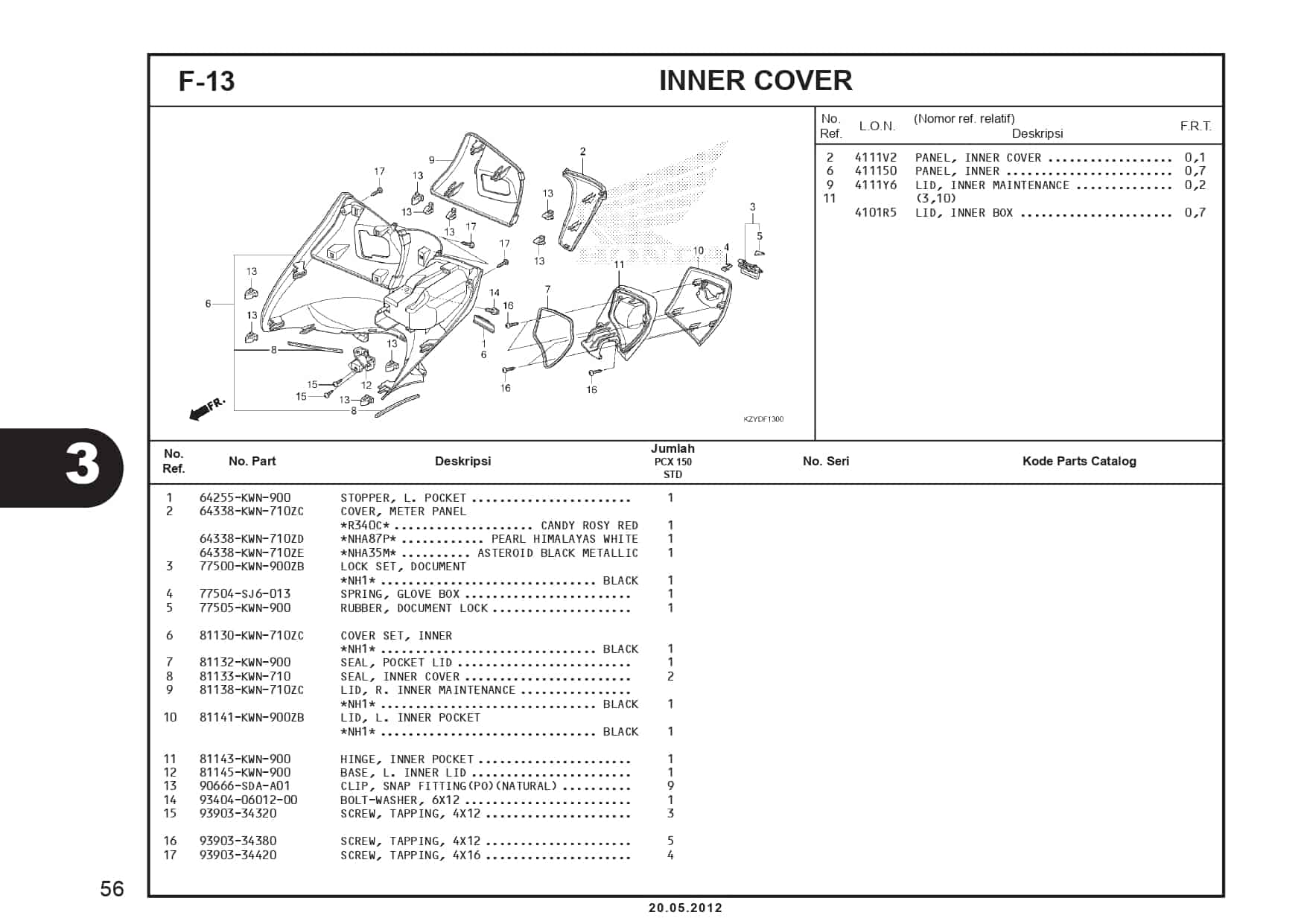

F-13 Inner Cover – Katalog Honda PCX 150 KZY

#	Informasi Produk	Visual
1	STOPPER,L POCKET Part Number : `64255KWN900`
2	CVR MTR PNL CDY RS RD Part Number : `64338KWN710ZC`
2	CVR MTR PNL PRL HM WHT Part Number : `64338KWN710ZD`
2	CVR MTR PNL AST BK MET Part Number : `64338KWN710ZE`
3	LOCK SET, DOCUMENT Part Number : `77500KWN900ZB`
4	SPR,G-BOX Part Number : `77504SJ6013`
5	RUBBER,LOCK DOCUMENT Part Number : `77505KWN900`
6	COVER SET, INNER Part Number : `81130KWN710ZC`
7	SEAL,POCKET LID Part Number : `81132KWN900`
8	SEAL, INNER COVER Part Number : `81133KWN710`
9	LID R INNER MAINTUSH Part Number : `81138KWN710ZC`
10	LID,L INNER POCK.SEAT/NH1 Part Number : `81141KWN900ZB`
11	HINGE,INNER POCKET Part Number : `81143KWN900`
12	BASE,L INNER LID Part Number : `81145KWN900`
13	CLIP SNAP FIT (P0) Part Number : `90666SDAA01`
14	BOLT WASHER 6X12 Part Number : `934040601200`
15	SCREW TAPPING 4X12 Part Number : `9390334320`
16	SCREW TAPPING 4X12 Part Number : `9390334380`
17	SCREW TAPPING 4X16 Part Number : `9390334420`
17	SCREW TAPPING 4X16 Part Number : `9390334421`
