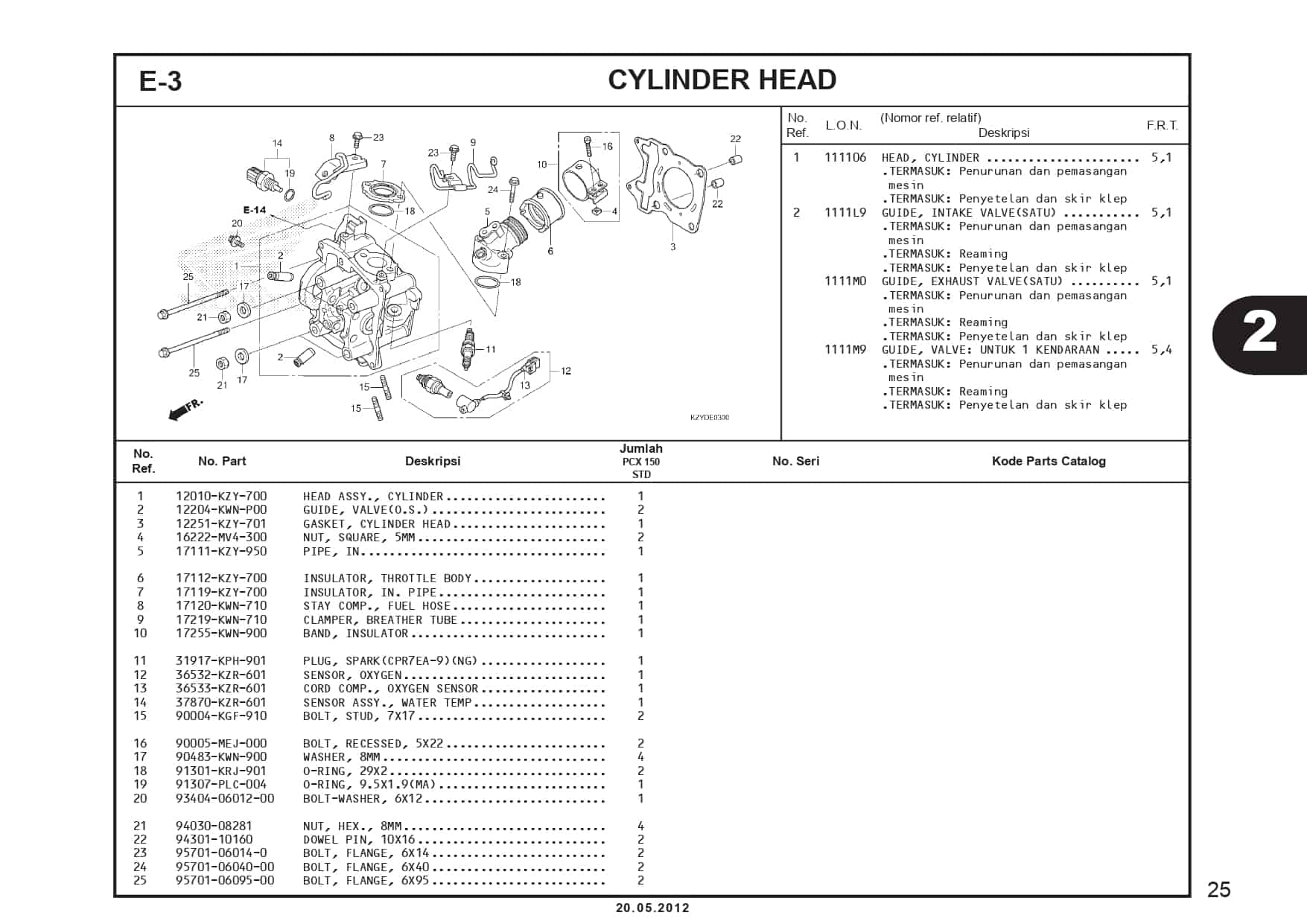

E-3 Cylinder Head – Katalog Honda PCX 150 KZY

#	Informasi Produk	Visual
1	HEAD ASSY CYLINDER Part Number : `12010KZY700`
2	GUIDE,VALVE (OSZ) Part Number : `12204KWNP00`
3	GASKET, CYL HEAD Part Number : `12251KZY701`
4	NUT,SQUARE 5MM Part Number : `16222MV4300`
5	PIPE IN Part Number : `17111KZY950`
6	INSULATOR, THROTTLE BODY Part Number : `17112KZY700`
7	INSULATOR, IN. PIPE Part Number : `17119KZY700`
8	STAY COMP., FUEL HOSE Part Number : `17120KWN710`
9	CLAMPER, BREATHER TUBE Part Number : `17219KWN710`
10	BAND,INSULATOR Part Number : `17255KWN900`
11	PLUK SPARK Part Number : `31917KPH902`
12	SENSOR, OXYGEN Part Number : `36532KZR601`
13	CORD COMP OXYGEN SENS Part Number : `36533KZR601`
14	SENSOR ASSY., WATER TEMP Part Number : `37870KZR601`
15	BOLT, STUD, 7X17 Part Number : `90004KGF910`
16	BOLT,RECESSED 5X22 Part Number : `90005MEJ000`
17	WASHER,8MM Part Number : `90483KWN900`
18	O-RING,29X2 Part Number : `91301KRJ901`
19	O-RING, 9.5X1.9 Part Number : `91307PLC004`
20	BOLT WASHER 6X12 Part Number : `934040601200`
21	NUT HEX 8MM Part Number : `9403008280`
22	DOWEL,PIN,10X16 Part Number : `9430110160`
23	BOLT FLANGE 6X14 Part Number : `957010601400`
24	BOLT FLANGE 6X40 Part Number : `957010604000`
25	BOLT FLANGE 6X95 Part Number : `957010609500`
