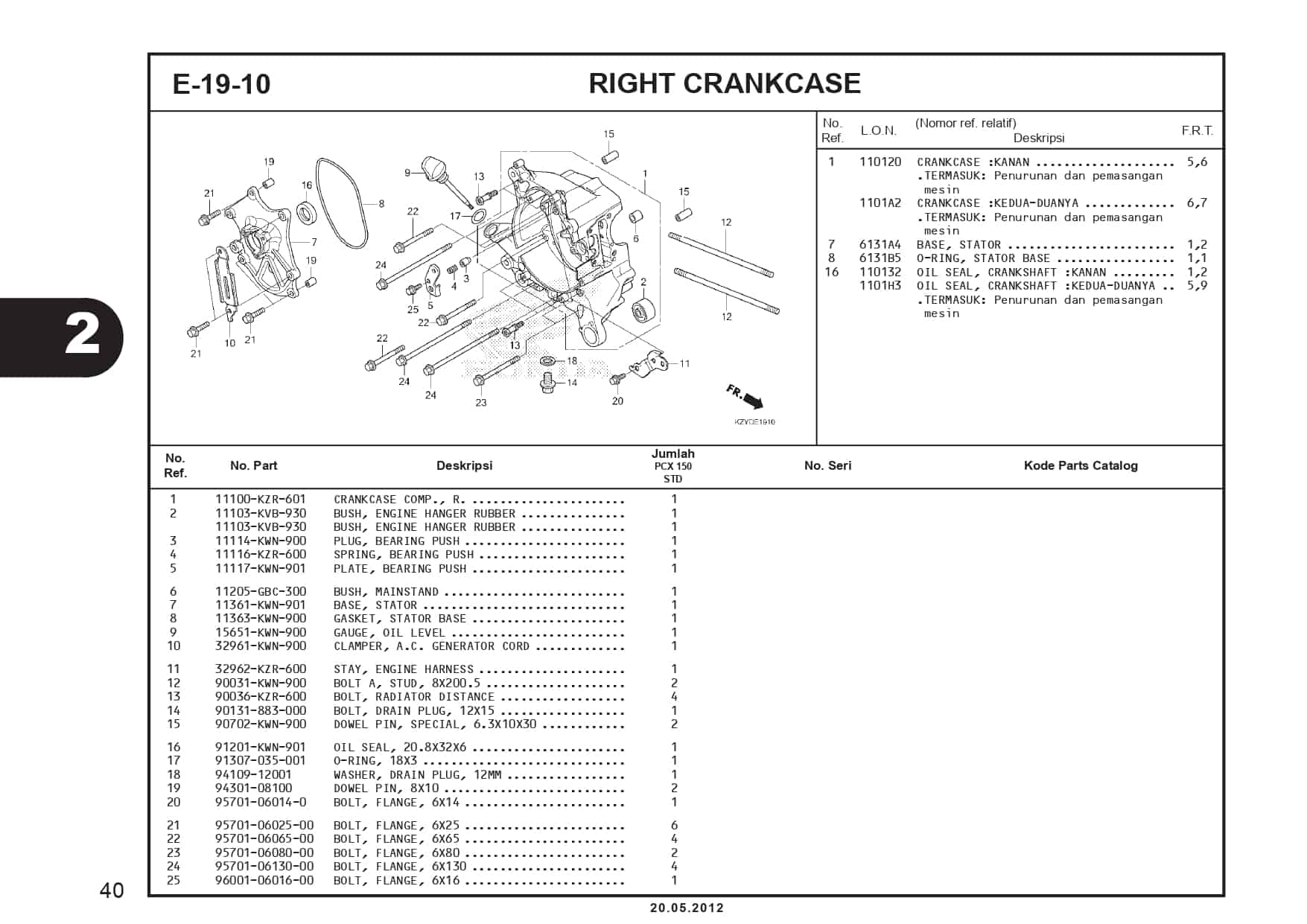

E-19-10 Right CrankCase – Katalog Honda PCX 150 KZY

#	Informasi Produk	Visual
1	CRANKCASE COMP R Part Number : `11100KZR601`
2	RUB.BUSH,ENG.HANGER Part Number : `11103KVB930`
2	RUB.BUSH,ENG.HANGER Part Number : `11103KVB930`
3	PLUG,BRG PUSH Part Number : `11114KWN900`
4	SPRING, BEARING PUSH Part Number : `11116KZR600`
5	PLATE,BRG PUSH Part Number : `11117KWN901`
6	BUSH M STAND Part Number : `11205GBC300`
7	BASE, STATOR Part Number : `11361KWN901`
8	GASKET,STATOR BASE Part Number : `11363KWN900`
9	GAUGE,OIL LEVEL Part Number : `15651KWN900`
10	CLAMP,ACG CORD Part Number : `32961KWN900`
11	STAY, ENGINE HARNESS Part Number : `32962KZR600`
12	BOLT A STUD 8X2005 Part Number : `90031KWN900`
13	BOLT, RADIATOR DISTANCE Part Number : `90036KZR600`
14	BOLT DRAIN PLUG 12X15 Part Number : `90131883000`
15	DOWEL PIN,SPL 6.3X10X30 Part Number : `90702KWN900`
17	O-RING 18X3 Part Number : `91307035001`
17	O-RING 18X3 Part Number : `91307035000`
18	WASHER, DRAIN PLUG 12MM Part Number : `9410912000`
19	PIN DOWEL 8X10 Part Number : `9430108100`
20	BOLT FLANGE 6X14 Part Number : `957010601400`
21	BOLT FLANGE 6X25 Part Number : `957010602500`
22	BOLT FLANGE 6X65 Part Number : `957010606500`
23	BOLT FLANGE 6X80 Part Number : `957010608000`
24	BOLT FLANGE 6X130 Part Number : `957010613000`
25	BOLT FLANGE SH 6X16 Part Number : `960010601600`
