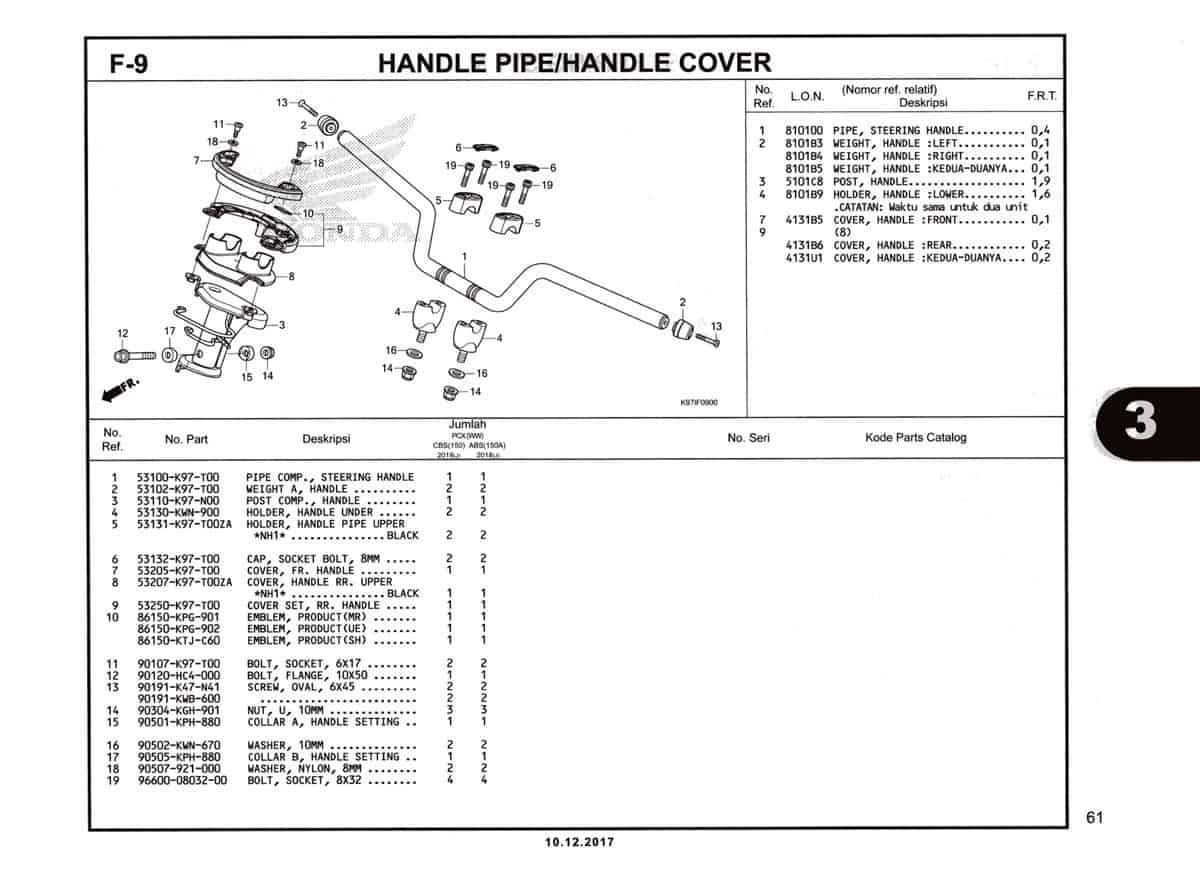

F9 – Handle Pipe / Handle Cover – Katalog Honda PCX 150 K97

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 Pipe Comp Steering Handle 53100K97T00 Pipe Comp Steering Handle
2 Weight A Handle 53102K97T00 Weight A Handle
3 Post Comp Handle 53110K97N00 Post Comp Handle
4 Holder Handle Under 53130KWN900 Holder Handle Under
5 Holder Upper Handle Pipe 53131K97T00ZA Holder Upper Handle Pipe
6 Cup Soket Bolt 8 mm 53132K97T00 Cup Soket Bolt 8 mm
7 Cover, Handle FR 53205K97T00 Cover, Handle FR
8 Cover Handle RR (BLK) 53207K97T00ZA Cover Handle RR (BLK)
9 Set Illust, Handle RR Cover 53250K97T00 Set Illust, Handle RR Cover
10 Emblem Wing Mark 86150KPG901 Emblem Wing Mark
10 Emblem Product (Uehara) 86150KPG902 Emblem Product (Uehara)
10 Emblem Product 86150KTJC60 Emblem Product
11 Bolt Socket 6x17 90107K97T00 Bolt Socket 6x17
12 Bolt Flange 10x50 90120HC4000 Bolt Flange 10x50
13 Screw Oval 6X45 90191K47N41 Screw Oval 6X45
13 Screw Oval 6x45 90191KWB600 Screw Oval 6x45
14 Nut U 10mm 90304KGH901 Nut U 10mm
15 Collar A HDL Set 90501KPH880 Collar A HDL Set
16 Washer 10mm 90502KWN670 Washer 10mm
17 Collar B Handle Setting 90505KPH880 Collar B Handle Setting
18 Washer Nylon 8mm 90507921000 Washer Nylon 8mm
19 Bolt Socket 8x32 966000803200 Bolt Socket 8x32
