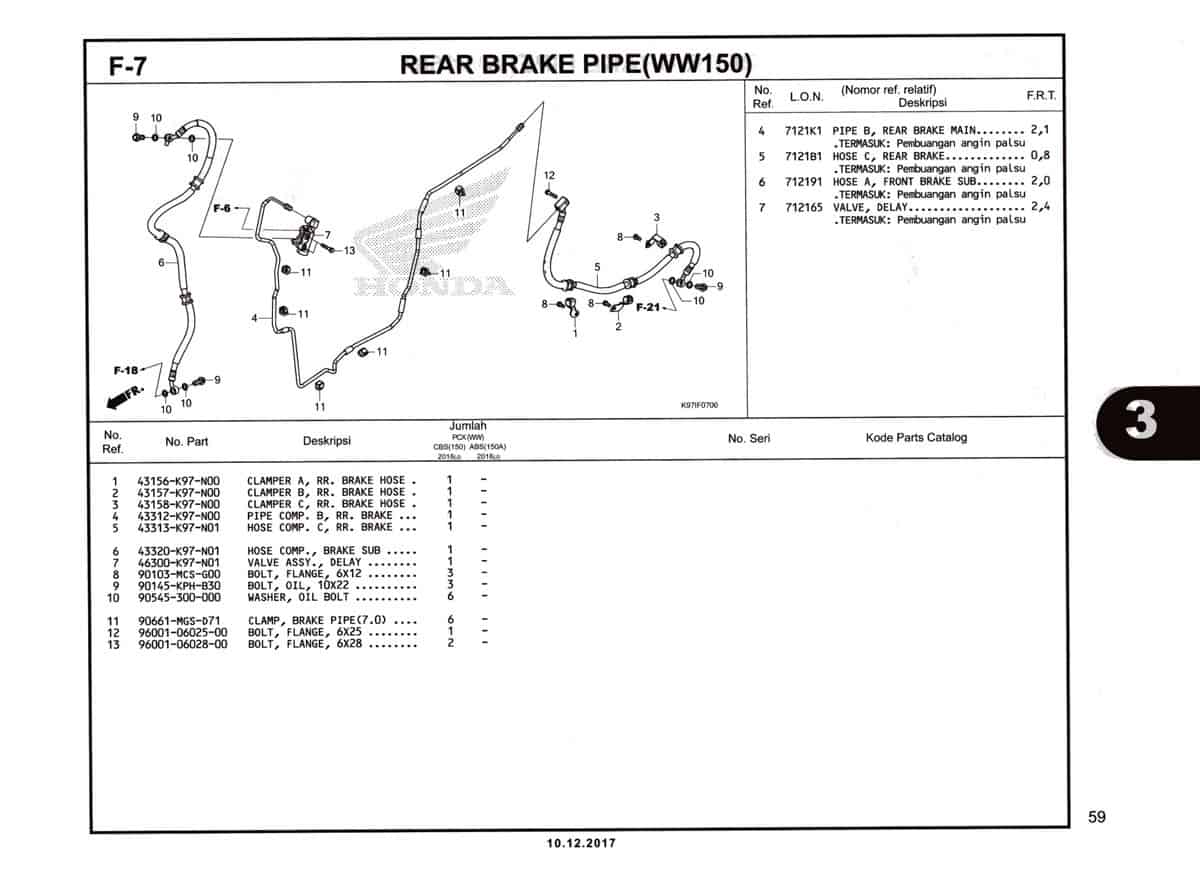

F7- Rear Brake Pipe (WW150) – Katalog Honda PCX 150 K97

#	Informasi Produk	Visual
1	Clamper A,RR Brake Hose Part Number : `43156K97N00`
2	Clamper B RR Brake Hose Part Number : `43157K97N00`
3	Clamper C RR Brake Hose Part Number : `43158K97N00`
4	Pipe Comp B,RR Brake CBS Part Number : `43312K97N00`
5	Hose Comp C RR Brake CBS Part Number : `43313K97N01`
6	Hose Comp Brake Sub Part Number : `43320K97N01`
7	Delay Valve Assy Part Number : `46300K97N01`
8	Bolt Flange 6x12 Part Number : `90103MCSG00`
9	Bolt Oil 10x22 Nissin Part Number : `90145KPHB30`
10	Washer Oil Bolt Part Number : `90545300000`
11	Clamp Brake Pipe NG Part Number : `90661MGSD71`
12	Bolt Flange 6X25 Part Number : `960010602500`
13	Bolt Flange 6x28 Part Number : `960010602800`
