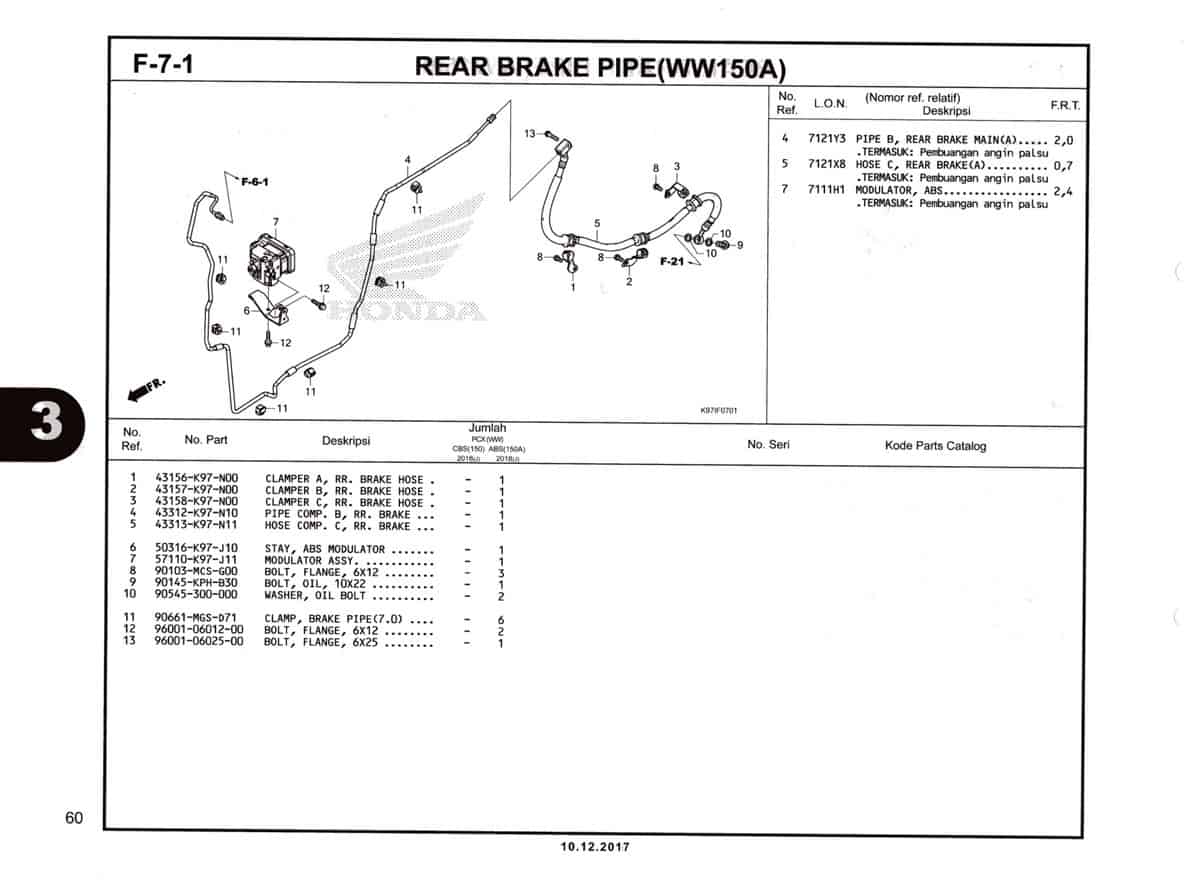

F7-1 – Rear Brake Pipe (WW150A) – Katalog Honda PCX 150 K97

#	Informasi Produk	Visual
1	Clamper A,RR Brake Hose Part Number : `43156K97N00`
2	Clamper B RR Brake Hose Part Number : `43157K97N00`
3	Clamper C RR Brake Hose Part Number : `43158K97N00`
4	Pipe Comp B RR Brake ABS Part Number : `43312K97N10`
5	Hose Comp C RR Brake ABS Part Number : `43313K97N11`
6	Stay ABS Mod Part Number : `50316K97J10`
7	Modulator Assy Part Number : `57110K97J11`
8	Bolt Flange 6x12 Part Number : `90103MCSG00`
9	Bolt Oil 10x22 Nissin Part Number : `90145KPHB30`
10	Washer Oil Bolt Part Number : `90545300000`
11	Clamp Brake Pipe NG Part Number : `90661MGSD71`
12	Bolt Flange SH 6x12 Part Number : `960010601200`
13	Bolt Flange 6X25 Part Number : `960010602500`
13	Bolt Flange 6X25 Part Number : `960010602507`
