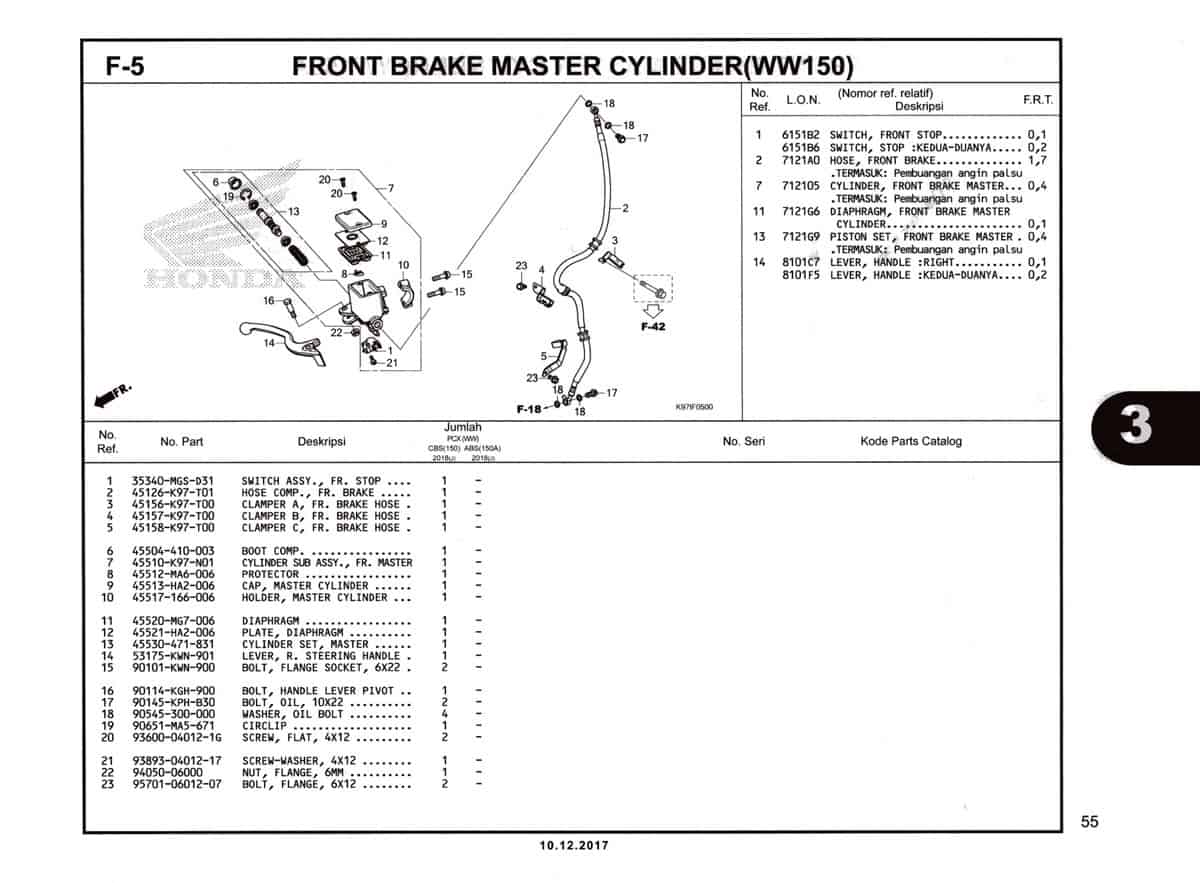

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Switch FR Stop Assy | 35340MGSD31 |
|
| 1 | Switch FR Stop Assy | 35340MA5671 |
|
| 2 | Hose Comp FR Brake CBS | 45126K97T01 |
|
| 3 | Clamper A FR Brake CBS | 45156K97T00 |
|
| 4 | Clamper B FR Brake CBS | 45157K97T00 |
|
| 5 | Clamper C FR Brake CBS | 45158K97T00 |
|
| 6 | Boot Comp | 45504410003 |
|
| 7 | Sub Assy FR Master Cylinder | 45510K97N01 |
|
| 8 | Protector | 45512MA6006 |
|
| 9 | Cap Master CYL | 45513HA2006 |
|
| 10 | Holder Master Cylinder | 45517166006 |
|
| 11 | Diaphragm | 45520MG7006 |
|
| 12 | Plate Diaphragm | 45521HA2006 |
|
| 13 | Cylinder Set Master | 45530471831 |
|
| 13 | Cylinder Set Master | 45530KET920 |
|
| 14 | Lever R Steering Handle | 53175KWN901 |
|
| 15 | Bolt Flange Socket 6X22 | 90101KWN900 |
|
| 16 | Bolt Handle Lever | 90114KGH900 |
|
| 17 | Bolt Oil 10x22 Nissin | 90145KPHB30 |
|
| 18 | Washer Oil Bolt | 90545300000 |
|
| 19 | Circlip | 90651MA5671 |
|
| 20 | Screw Flat, 4X12 | 93600040121G |
|
| 21 | Screw Washer 4x12 | 938930401217 |
|
| 22 | Nut Flange 6mm | 9405006000 |
|
| 23 | Bolt Flange 6X12 | 957010601207 |
|
| 23 | Bolt Flange 6X12 | 957010601208 |
|
