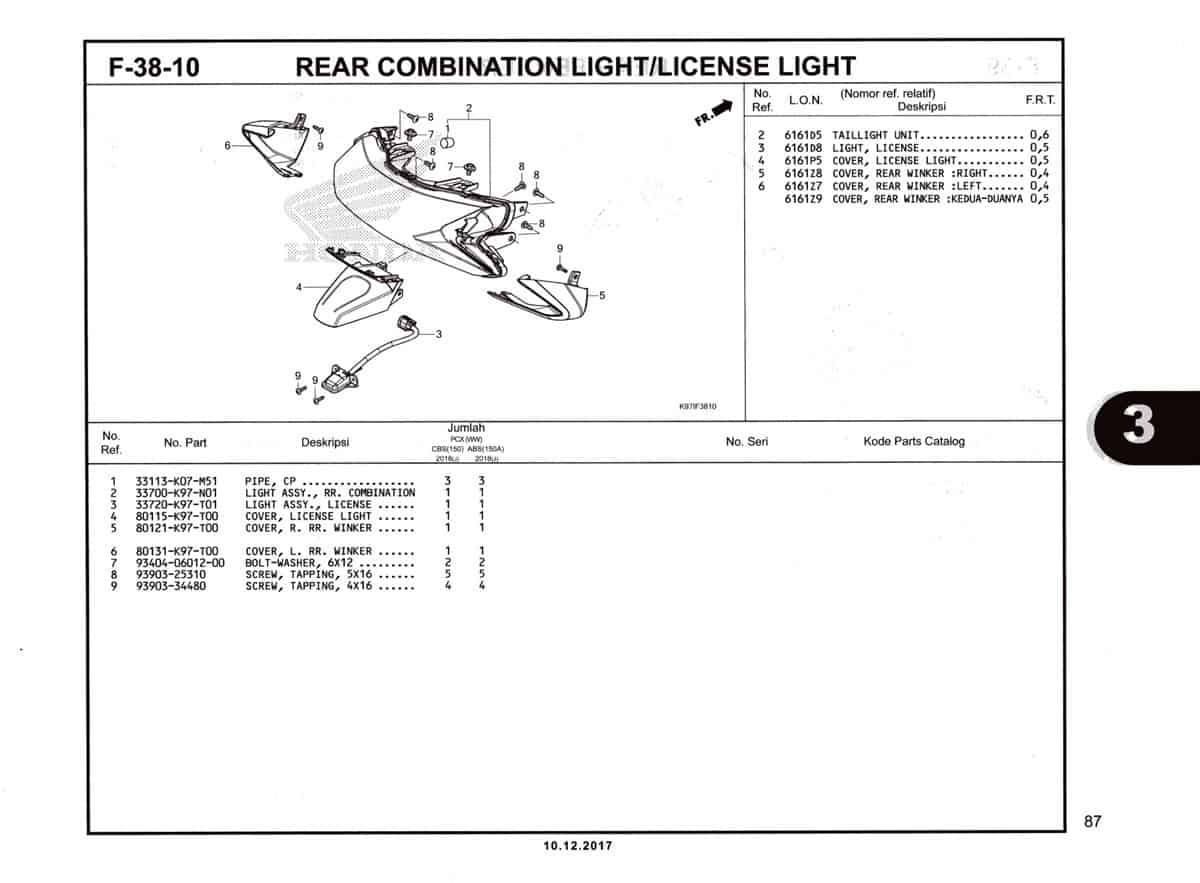

F38-10 – Rear Combination Light / License Light – Katalog Honda PCX 150 K97

#	Informasi Produk	Visual
1	Pipe Cp Part Number : `33113K07M51`
2	Light Assy, Rear Comb Part Number : `33700K97N01`
3	Light Assy License Part Number : `33720K97T01`
4	Cover License Light Part Number : `80115K97T00`
5	Cover R W/L Part Number : `80121K97T00`
6	Cover L W/L Part Number : `80131K97T00`
7	Bolt Washer 6x12 Part Number : `934040601200`
8	Screw Tapping 5x16 Part Number : `9390325310`
8	Screw Tapping 5x16 Part Number : `9390325320`
9	Screw Tapping 4x16 Part Number : `9390334480`
