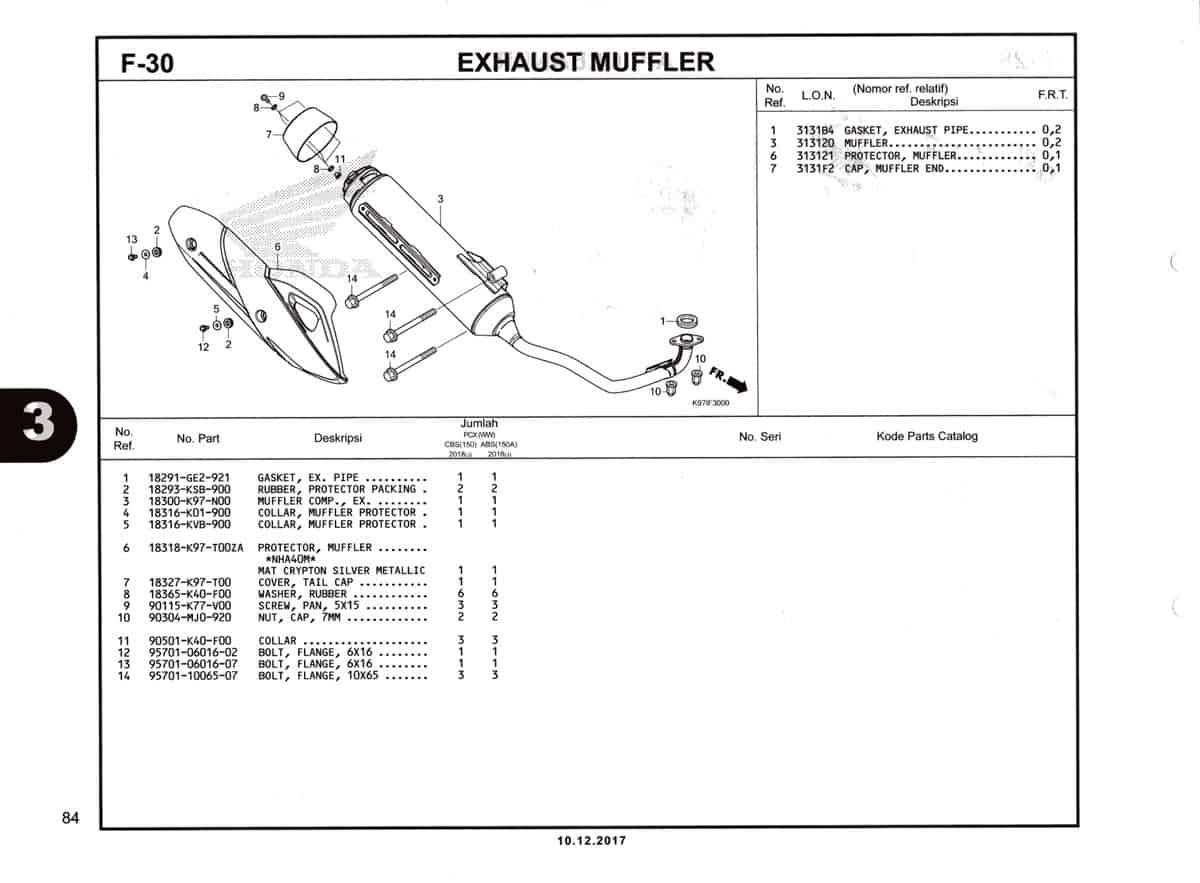

F30 – Exhaust Muffler – Katalog Honda PCX 150 K97

#	Informasi Produk	Visual
1	Gasket Exhaust Pipe Part Number : `18291GE2921`
2	Rubber PKG Protector Part Number : `18293KSB900`
3	Muffler Comp Exhaust Part Number : `18300K97N00`
4	Collar Muff Prote Part Number : `18316K01900`
5	Collar Muffler Protector Part Number : `18316KVB900`
6	Protector Muffler NHA40M Part Number : `18318K97T00ZA`
7	Cover Tail Cap Part Number : `18327K97T00`
8	Washer Rubber Part Number : `18365K40F00`
9	Screw Pan 5x15 Part Number : `90115K77V00`
10	Nut Hexcap 7mm Part Number : `90304MJ0920`
11	Collar Part Number : `90501K40F00`
12	Bolt Flange 6X16 Part Number : `957010601602`
13	Bolt Flange 6x16 Part Number : `957010601607`
14	Bolt Flange 10x65 Part Number : `957011006507`
