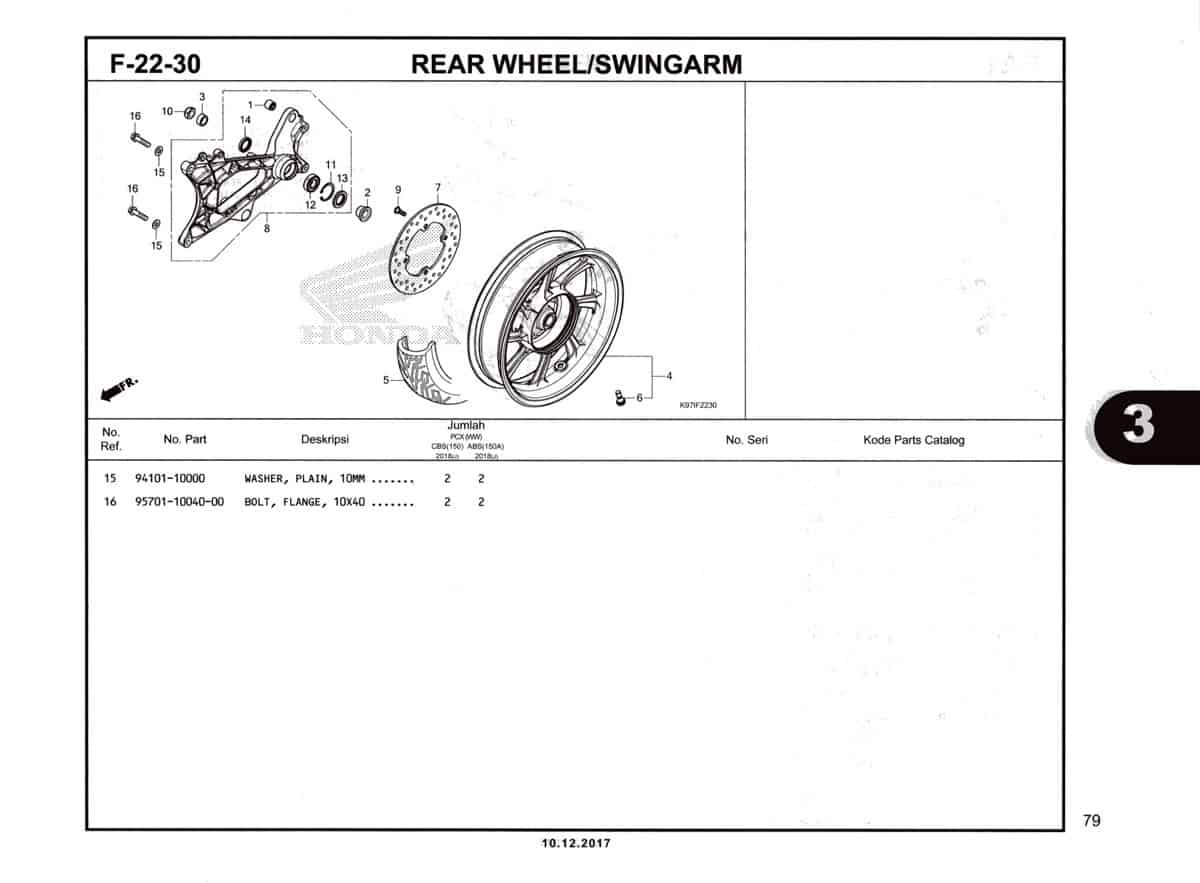

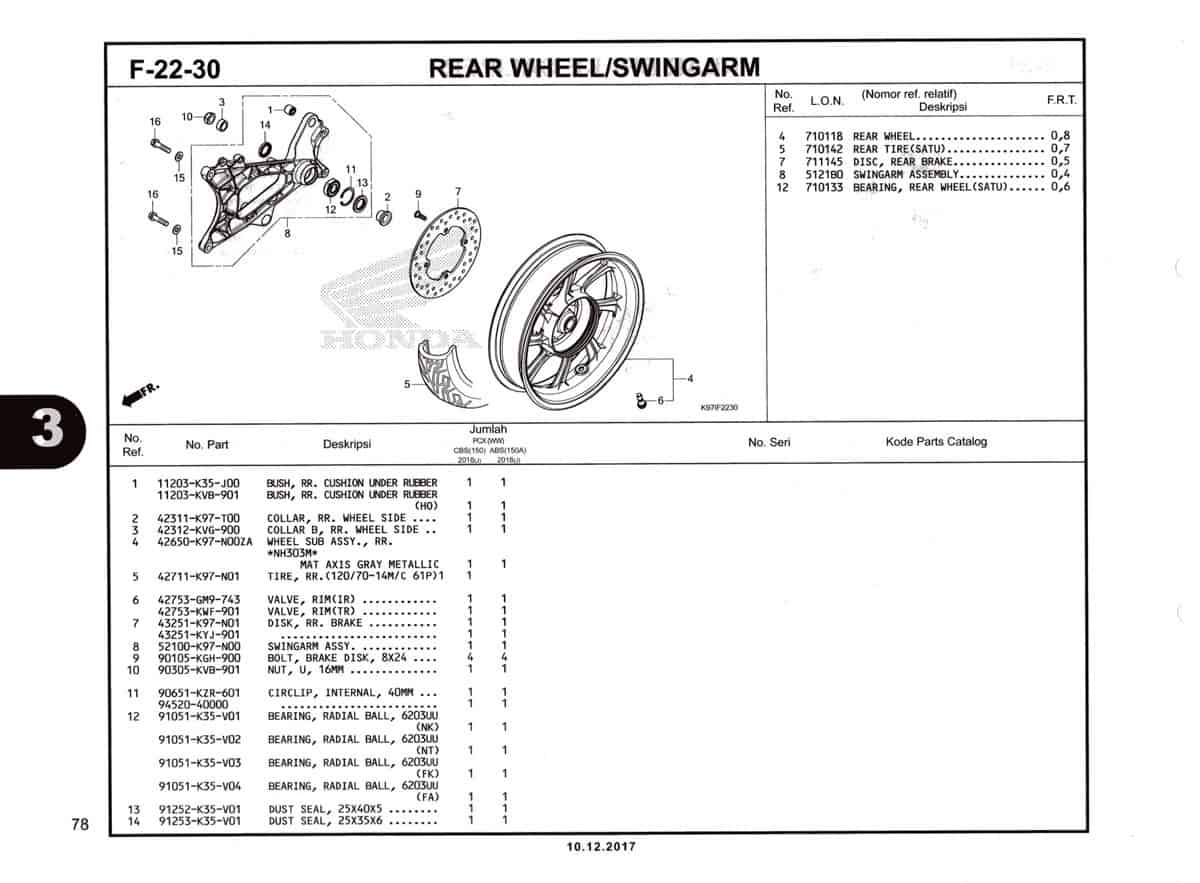

F22-30 – Rear Wheel / Swingarm – Katalog Honda PCX 150 K97

#	Informasi Produk	Visual
1	Bush RR Cushion Under Rubber Part Number : `11203K35J00`
1	Under Rubber Bush Rear Part Number : `11203KVB901`
1	Bush RR Cushion Under Rubber Part Number : `11203K35J01`
2	Collar RR Wheele Side Part Number : `42311K97T00`
3	Collar B, RR Wheel Side Part Number : `42312KVG900`
4	Wheel Sub Assy Rear Part Number : `42650K97N00ZA`
4	WHEEL SUB ASSY RR (SUP GLD) Part Number : `42650K97N00ZB`
5	Tire RR (IRC) Part Number : `42711K97N01`
5	Tire RR IRC Part Number : `42711K97N02`
5	Tire RR Part Number : `42711K2SN01`
6	Valve, Rim (Inoue) Part Number : `42753GM9743`
6	Valve Rim (Triton) Part Number : `42753KWF901`
7	Disk RR Brake Part Number : `43251K97N01`
7	Disk RR Brake Part Number : `43251KYJ901`
8	Swingarm Assy Part Number : `52100K97N00`
9	Bolt Brake Disk 8X24 Part Number : `90105KGH900`
10	Nut U 16MM Part Number : `90305KVB901`
11	Circlip Internal 40mm Part Number : `9452040000`
11	Circlip Internal 40mm Part Number : `90651KZR601`
12	Bearing Radial Ball 6203UU Part Number : `91051K35V01`
12	Bearing Radial Ball 6203UU Part Number : `91051K35V02`
12	Bearing Ball Radial 6 Part Number : `91051K35V03`
12	Bearing Ball Radial 6 Part Number : `91051K35V04`
13	Dust Seal 25x40x5 Part Number : `91252K35V01`
14	Dust Seal 25x35x6 Part Number : `91253K35V01`
15	Washer Plain 10mm Part Number : `9410110000`
16	Bolt Flange 10x40 Part Number : `957011004000`
