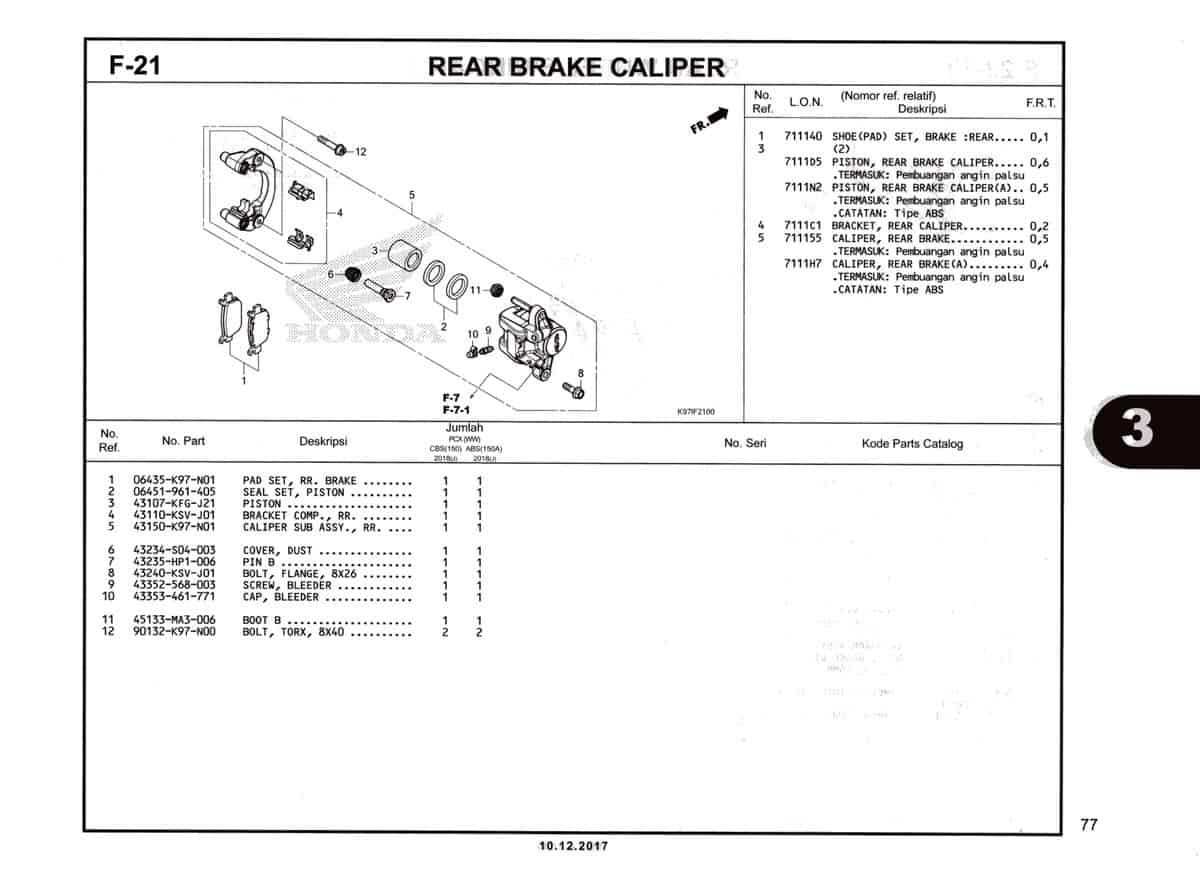

F21 – Rear Brake Caliper – Katalog Honda PCX 150 K97

#	Informasi Produk	Visual
1	Pad Set RR Brake Part Number : `06435K97N01`
2	Seal Set Piston Part Number : `06451961405`
3	Piston Part Number : `43107KFGJ21`
4	Bracket Comp RR Part Number : `43110KSVJ01`
5	Caliper Sub Assy RR Part Number : `43150K97N01`
6	Dust Cover Part Number : `43234S04003`
7	Pin B Part Number : `43235HP1006`
8	Bolt Flange 8x26 Part Number : `43240KSVJ01`
9	Screw Bleeder Part Number : `43352568003`
10	Cap Bleeder Part Number : `43353461771`
11	Boot B Pin Part Number : `45133MA3006`
12	Bolt Torx 8X40 Part Number : `90132K97N00`
