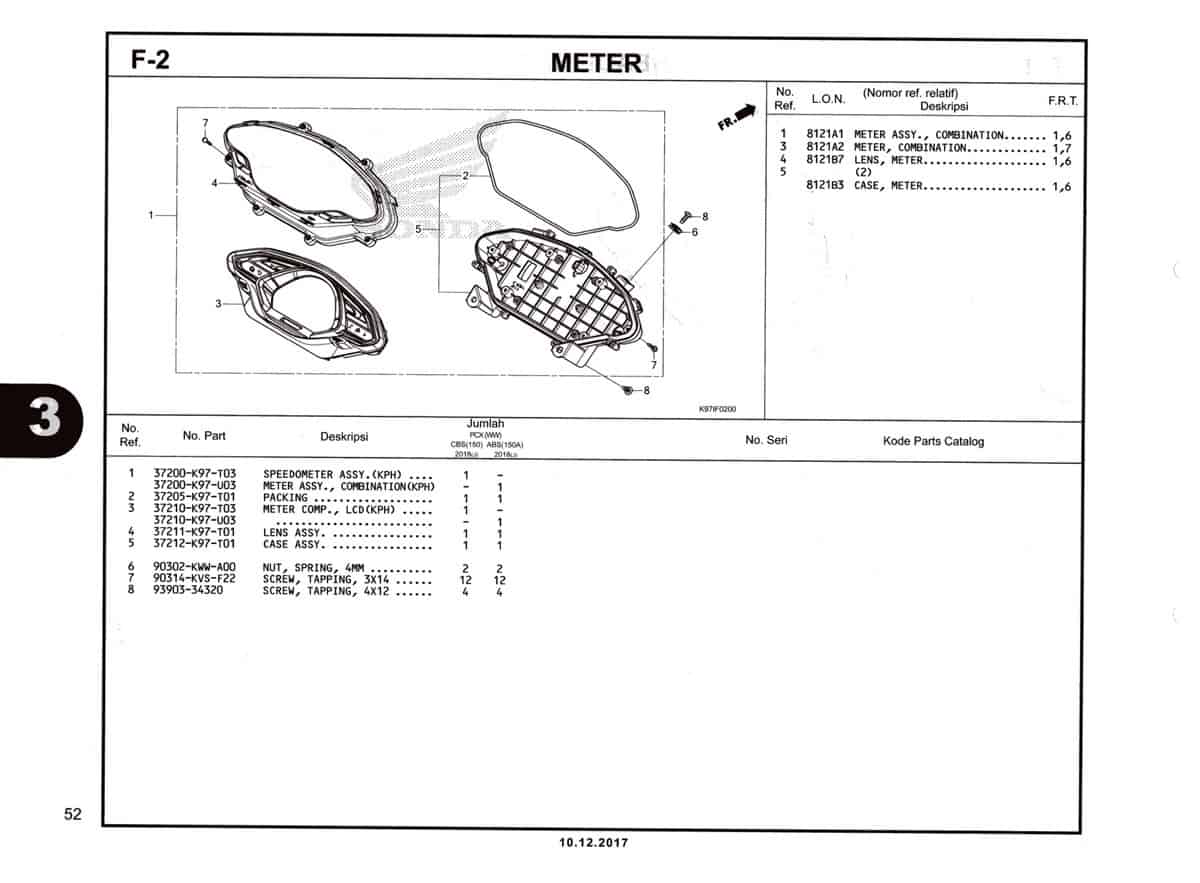

F2- Meter – Katalog Honda PCX 150 K97

#	Informasi Produk	Visual
1	Speedometer Assy CBS Part Number : `37200K97T03`
1	Speedometer Assy ABS Part Number : `37200K97U03`
2	Packing Part Number : `37205K97T01`
3	LCD Meter Comp CBS Part Number : `37210K97T03`
3	LCD Meter Comp ABS Part Number : `37210K97U03`
4	Lens Assy Part Number : `37211K97T01`
5	Case Assy Part Number : `37212K97T01`
6	Nut Spring 4MM Part Number : `90302KWWA00`
6	Nut Spring 4MM Part Number : `90302SA4003`
6	Nut Spring 4MM Part Number : `90302K97600`
7	Screw Tapping 3X14 Part Number : `90314KVSF22`
8	Screw Tapping 4x12 Part Number : `9390334320`
