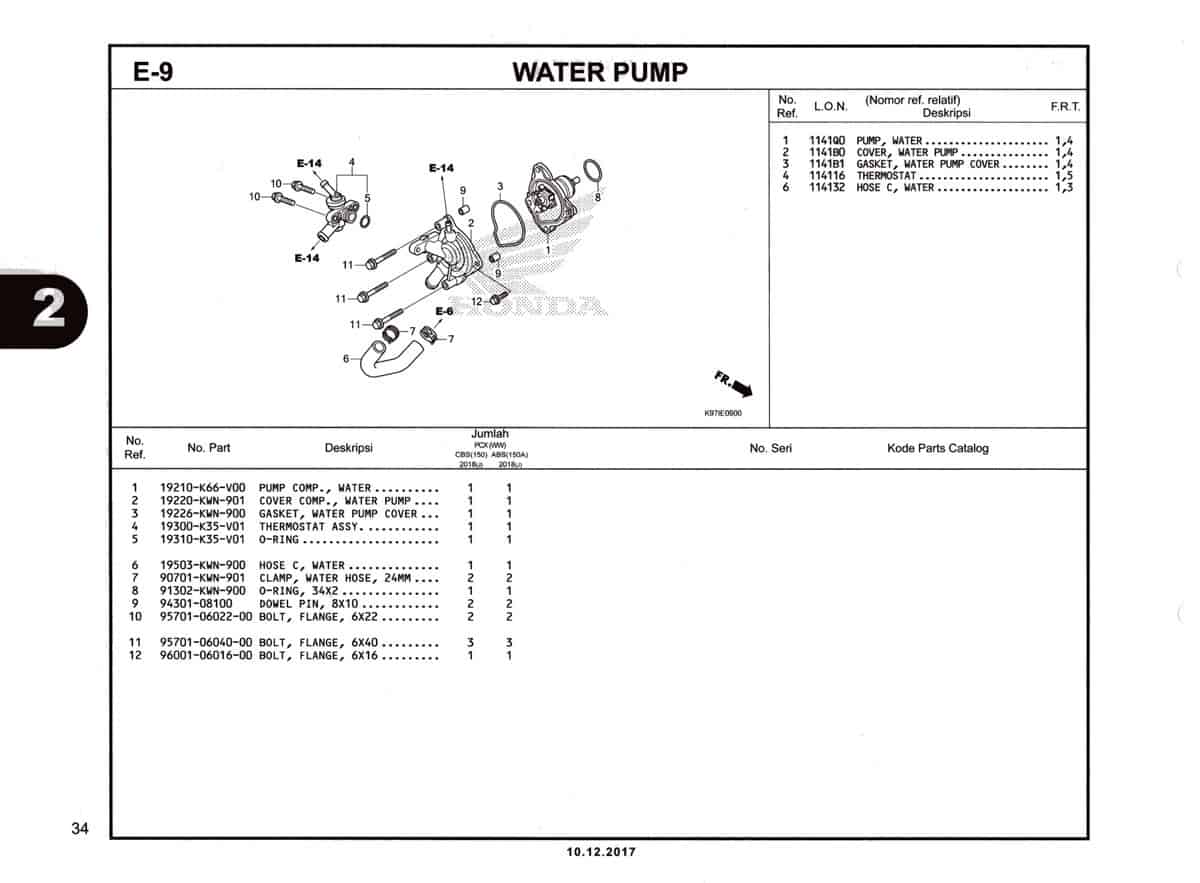

E9- Water Pump – Katalog Honda PCX 150 K97

#	Informasi Produk	Visual
1	Pump Comp Water Part Number : `19210K66V00`
2	Cover Comp Water Pump Part Number : `19220KWN901`
3	Gasket Water Pump Cover Part Number : `19226KWN900`
4	Thermostat Assy Part Number : `19300K35V01`
5	O Ring Part Number : `19310K35V01`
6	Hose C Water Part Number : `19503KWN900`
7	Clamp 24mm Waret Hose Part Number : `90701KWN901`
8	O-Ring 34x2 Part Number : `91302KWN900`
9	Pin Dowel 8x10 Part Number : `9430108100`
10	Bolt Flange 6x22 Part Number : `957010602200`
10	Bolt Flange 6x22 Part Number : `957010602207`
10	Bolt Flange 6x22 Part Number : `957010602208`
11	Bolt Flange 6x40 Part Number : `957010604000`
12	Bolt Flange SH 6x16 Part Number : `960010601600`
