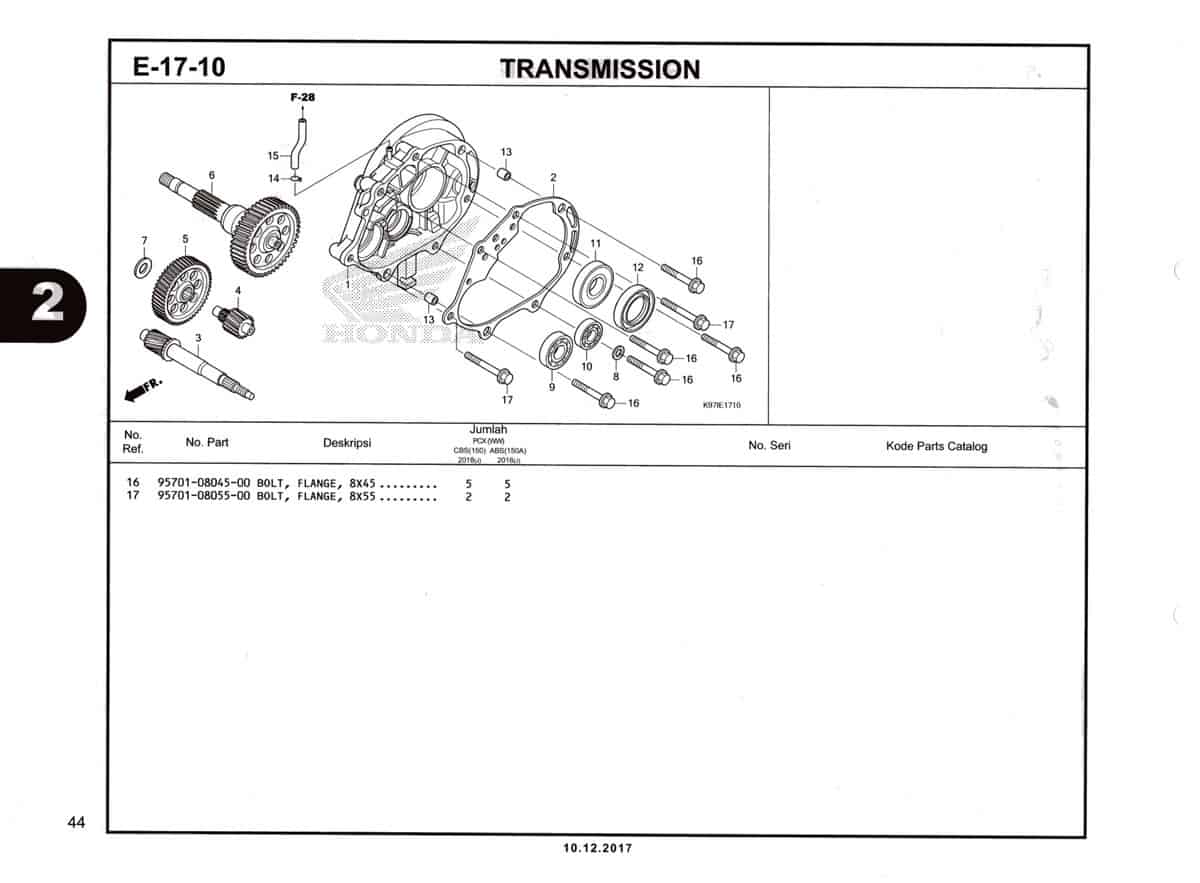

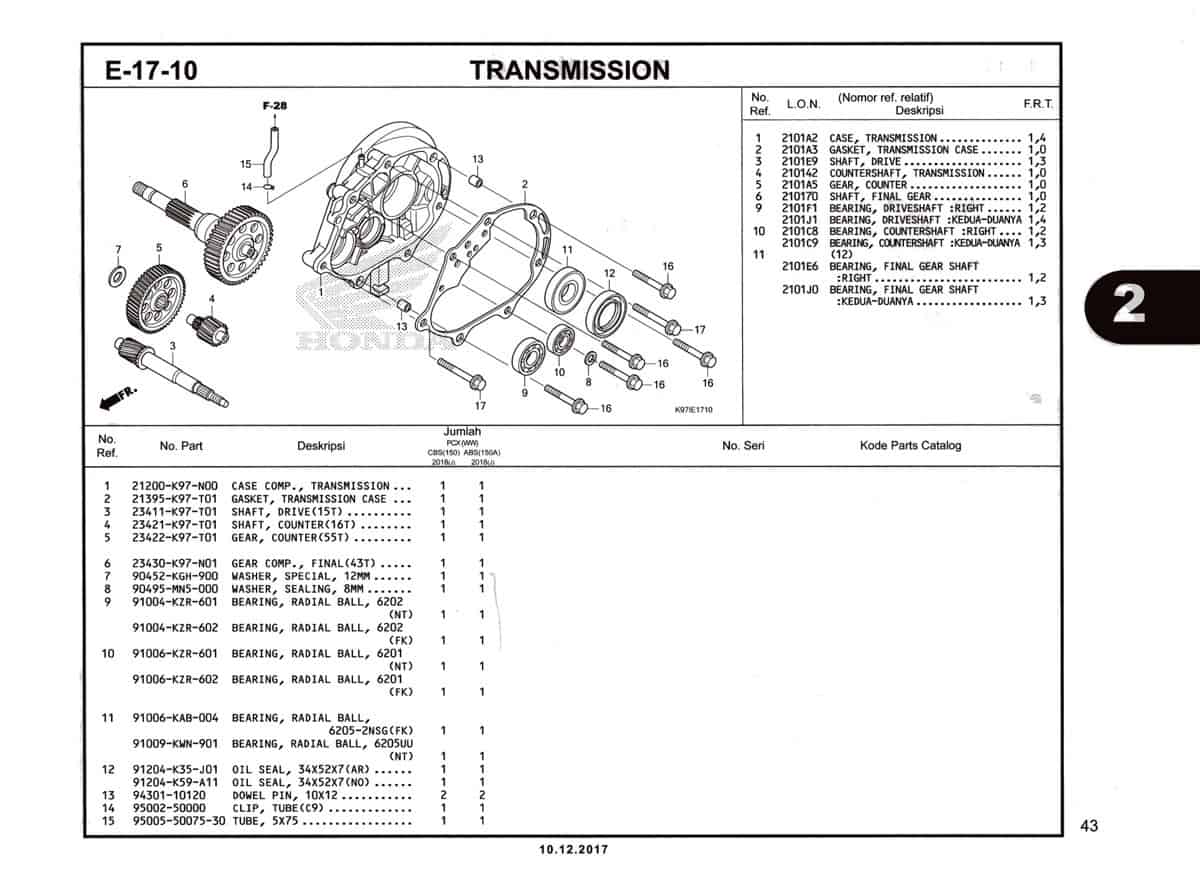

E17-10 – Transmission – Katalog Honda PCX 150 K97

#	Informasi Produk	Visual
1	Case Comp Mission Part Number : `21200K97N00`
2	Gasket Mission Case Part Number : `21395K97T01`
3	Shaft Drive Part Number : `23411K97T01`
4	Shaft Counter Part Number : `23421K97T01`
5	Gear Counter Part Number : `23422K97T01`
6	Gear Comp.Final Part Number : `23430K97N01`
7	Washer Special 12mm Part Number : `90452KGH900`
8	Washer Sealing 8mm Part Number : `90495MN5000`
9	Bearing Ball Radial 6202 Part Number : `91004KZR601`
9	Bearing Ball Radial 6202 Part Number : `91004KZR602`
9	Brg Ball Radial 6202 Part Number : `91004K2SN01`
10	Bearing Radial Ball 6201 Part Number : `91006KZR601`
10	Bearing Radial Ball 6201 Part Number : `91006KZR602`
11	Bearing Radial Ball 6205 Part Number : `91006KAB004`
11	Bearing Ball Radial 6205 UU Part Number : `91009KWN901`
11	Bearing Ball Radial 6205 UU Part Number : `91009K2SN01`
12	Oil Seal 34X52X7 Part Number : `91204K35J01`
12	Oil Seal 34x52x7 Part Number : `91204K59A11`
13	Pin Dowel 10X12 Part Number : `9430110120`
14	Clip Tube 5.0 MM Part Number : `9500250000`
15	Tube 5X075 Part Number : `950055007530`
16	Bolt Flange 8x45 Part Number : `957010804500`
17	Bolt Flange 8x55 Part Number : `957010805500`
