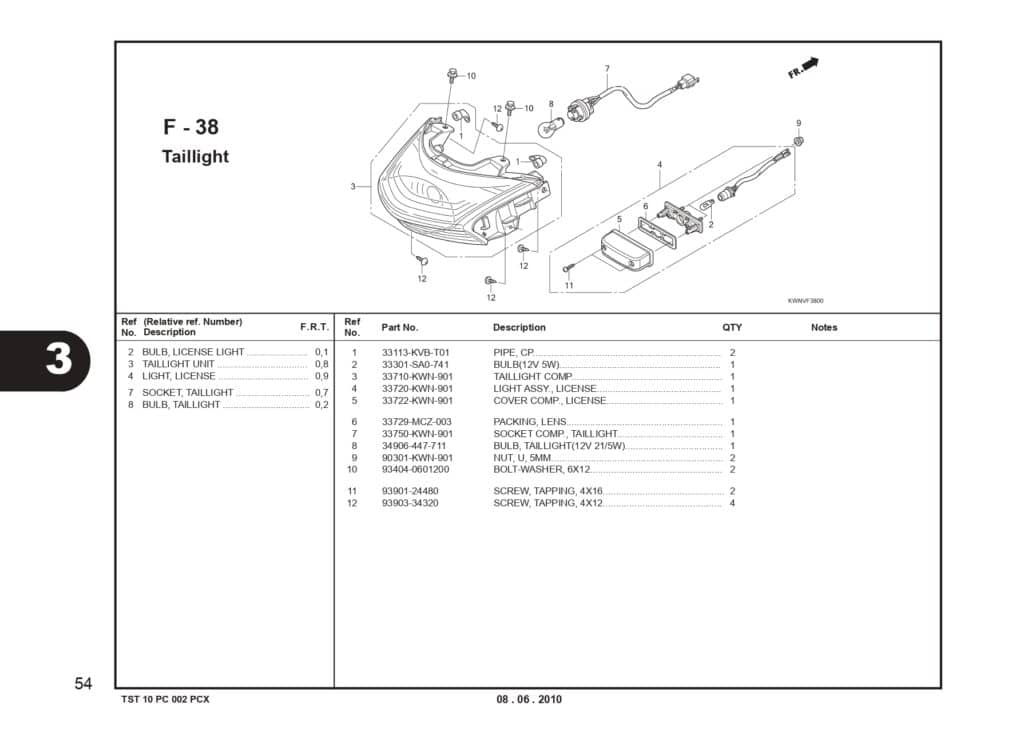

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | PIPE CP | 33113KVBT01 |
|
| 2 | BULB (12V5W) | 33301SA0741 |
|
| 3 | UNIT COMP,TAIL LIGHT | 33710KWN901 | - |
| 4 | LIGHT ASSY,LICENSE | 33720KWN901 | - |
| 5 | COVER COMP,LICENSE | 33722KWN901 |
|
| 6 | PACKING,LENS | 33729MCZ003 |
|
| 7 | SOCKET COMP,TAIL LIGHT | 33750KWN901 | - |
| 8 | BULB,TAIL&STOP(P21/5W) | 34906447711 | - |
| 9 | NUT, U, 5MM | 90301KWN901 |
|
| 10 | BOLT WASHER 6X12 | 934040601200 |
|
| 11 | SCREW,TAPP 4X16 | 9390124480 |
|
| 12 | SCREW TAPPING 4X12 | 9390334320 |
|
