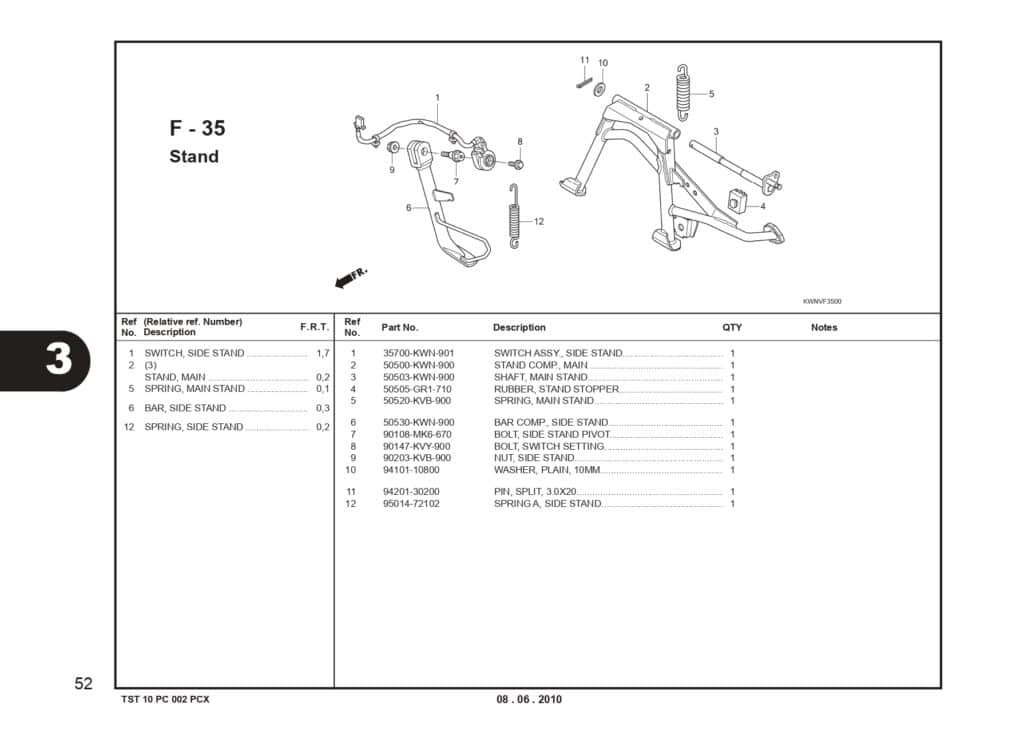

F-35 Stand – Katalog Suku Cadang Honda PCX 125 KWN

#	Informasi Produk	Visual
1	SW ASSY,SIDE STAND Part Number : `35700KWN901`
2	STAND COMP MAIN Part Number : `50500KWN901`
3	SHAFT,MAIN STAND Part Number : `50503KWN900`
4	STOPPER RUBBER, STAND Part Number : `50505GR1710`
5	SPRING MAIN STAND Part Number : `50520KVB900`
6	BAR COMP,SIDE STAND Part Number : `50530KWN900`
7	BOLT SIDE STAND PIVOT Part Number : `90108MK6670`
8	BOLT SW SETTING Part Number : `90147KVY900`
9	NUT SIDE STAND Part Number : `90203KVB900`
10	WASHER PLAIN 10MM Part Number : `9410110800`
11	PIN,COTTER 3X20 Part Number : `9420130200`
12	SPRING A SIDE STAND Part Number : `9501472102`
