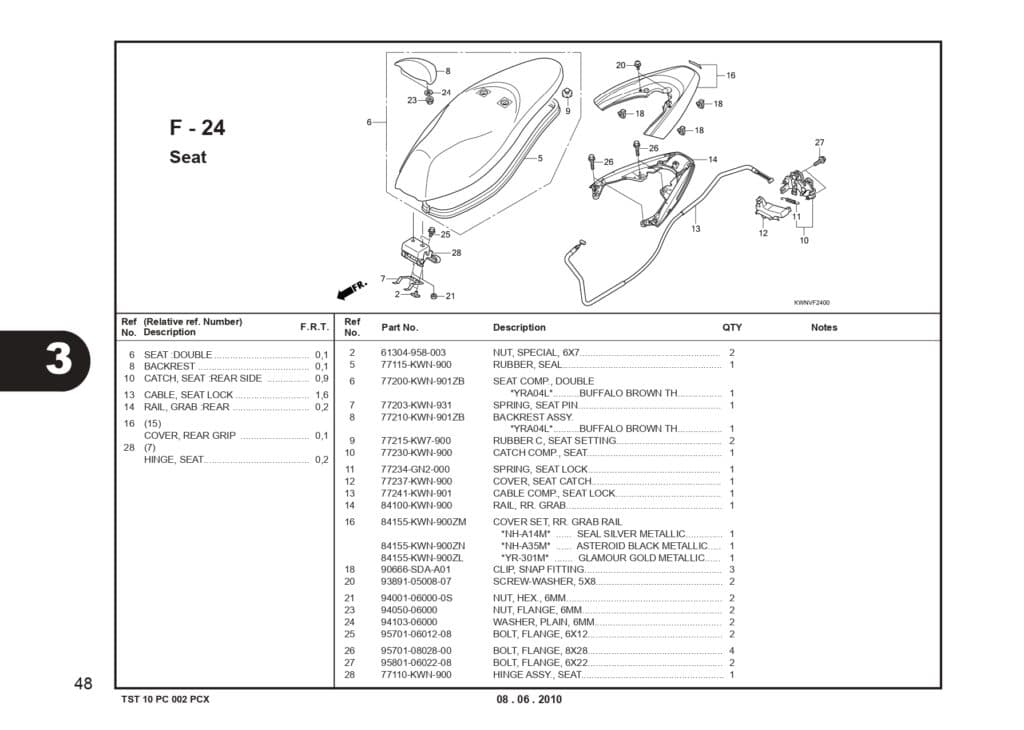

F-24 Seat – Katalog Suku Cadang Honda PCX 125 KWN

#	Informasi Produk	Visual
2	NUT, SPECIAL 6X7 Part Number : `61304958003`
5	RUBBER,SEAL Part Number : `77115KWN900`
6	SEAT COMP,DOUBLE Part Number : `77200KWN901ZB`
7	SPRING,SEAT PIN Part Number : `77203KWN931`
8	77210KWN902ZB Part Number : `77210KWN901ZB`
8	BACKREST ASSY/NH1 Part Number : `77210KWN901ZC`
9	RUBR.C SEAT SET Part Number : `77215KW7900`
10	SEAT CATCH COMP Part Number : `77230KWN900`
11	SPRING SEAT LOCK Part Number : `77234GN2000`
12	COVER,SEAT CATCH Part Number : `77237KWN900`
13	CABLE COMP,SEAT LOCK Part Number : `77241KWN901`
16	RAIL,RR GRAB Part Number : `84100KWN900`
16	ILST CVR RR GRB RL ASTRD BL MT Part Number : `84155KWN900ZN`
16	ILST,CVR RR GRB RL GLM GLD MTL Part Number : `84155KWN900ZL`
18	CLIP SNAP FIT (P0) Part Number : `90666SDAA01`
20	SCREW-WASH,5X8 Part Number : `938910500807`
22	NUT HEX 6MM Part Number : `94001060000S`
23	NUT,FLANGE 6MM Part Number : `9405006000`
24	WASHER PLAIN 6MM Part Number : `9410306000`
25	BOLT FLANGE 6X12 Part Number : `957010601208`
26	BOLT FLANGE 8X28 Part Number : `957010802800`
27	958010602208 Part Number : `958010602208`
28	HINGE ASSY., SEAT Part Number : `77110KWN900`
