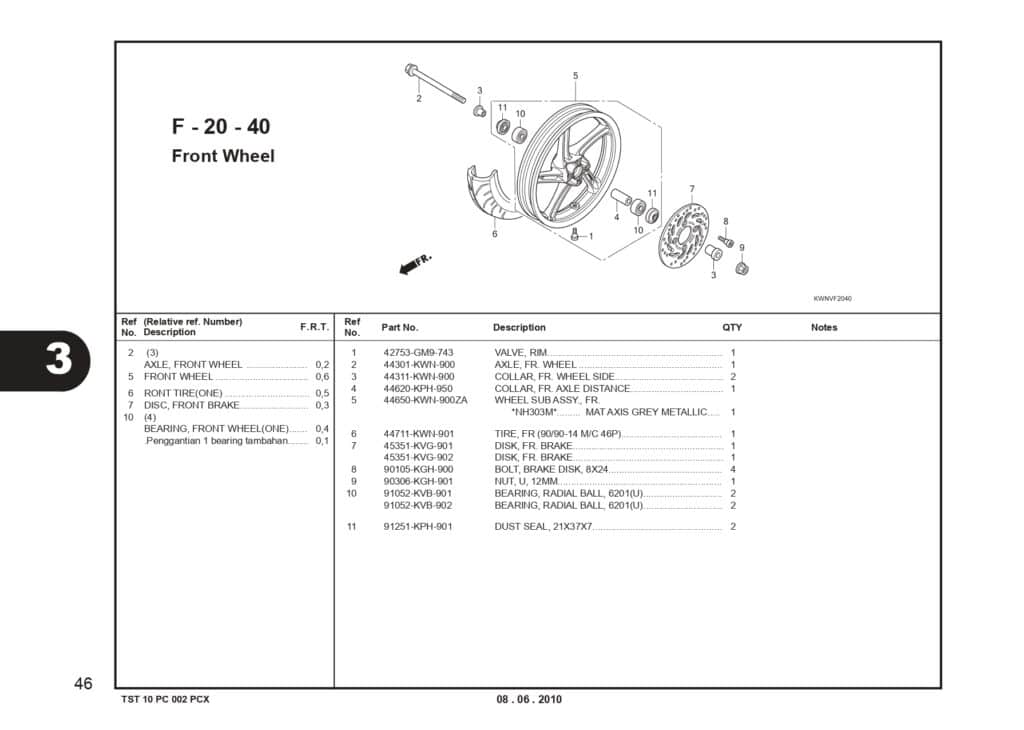

F-20-40 Front Wheel – Katalog Suku Cadang Honda PCX 125 KWN

#	Informasi Produk	Visual
1	VALVE,RIM (INOUE) Part Number : `42753GM9743`
2	AXLE,FR WHEEL Part Number : `44301KWN900`
3	COLLAR,FR WHEEL SIDE Part Number : `44311KWN900`
4	COLLAR,FR AXLE DIST Part Number : `44620KPH950`
5	44650KWN901ZA Part Number : `44650KWN900ZA`
5	WHEEL SUB ASSY FR PRSNPB4 Part Number : `44650KWN711ZB`
6	TIRE FR TL (90/90-14) Part Number : `44711KWN901`
7	DISK,FR BRAKE Part Number : `45351KVG901`
8	DISK,FR BRAKE Part Number : `45351KVG902`
9	BOLT BRK DISK 8X24 Part Number : `90105KGH900`
10	NUT,U,12MM Part Number : `90306KGH901`
11	BEARING,RADIAL BALL 6201(U) Part Number : `91052KVB901`
12	BRG,BALL RADIAL 6201(U) Part Number : `91052KVB902`
13	DUST SEAL 21 X 37 X 7 Part Number : `91251KPH901`
