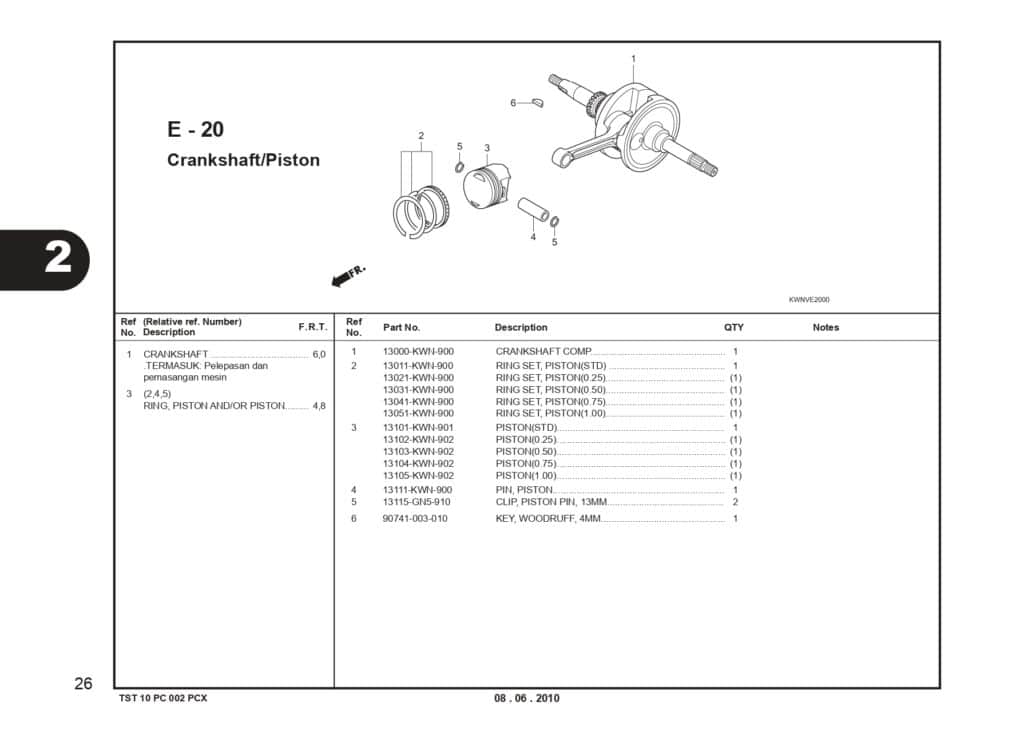

E-20 Cranksaft Piston – Katalog Suku Cadang Honda PCX 125 KWN
Technical Diagram
Daftar Suku Cadang
# Informasi Produk Visual
1
CRANKSHAFT COMP
Part Number : 13000KWN900
2
RING SET, PISTON (STD)
Part Number : 13011KWN901
RING SET, PISTON (STD)
2
RING SET,PISTON OS 0.25
Part Number : 13021KWN900
RING SET,PISTON OS 0.25
2
RING SET,PISTON OS 0.50
Part Number : 13031KWN900
RING SET,PISTON OS 0.50
2
RING SET,PISTON OS 0.75
Part Number : 13041KWN900
RING SET,PISTON OS 0.75
2
RING SET,PISTON OS 1.00
Part Number : 13051KWN900
RING SET,PISTON OS 1.00
3
PISTON (STD)
Part Number : 13101KWN902
PISTON (STD)
3
PISTON (0,25)
Part Number : 13102KWN903
PISTON (0,25)
3
PISTON (0,50)
Part Number : 13103KWN903
PISTON (0,50)
3
PISTON (0,75)
Part Number : 13104KWN903
PISTON (0,75)
3
PISTON (1,00)
Part Number : 13105KWN903
PISTON (1,00)
4
PIN, PISTON
Part Number : 13111KWN900
PIN, PISTON
5
CLIP, PISTON PIN, 13MM
Part Number : 13115GN5910
CLIP, PISTON PIN, 13MM
6
KEYWOODRUFF 4MM
Part Number : 90741003010
KEYWOODRUFF 4MM
