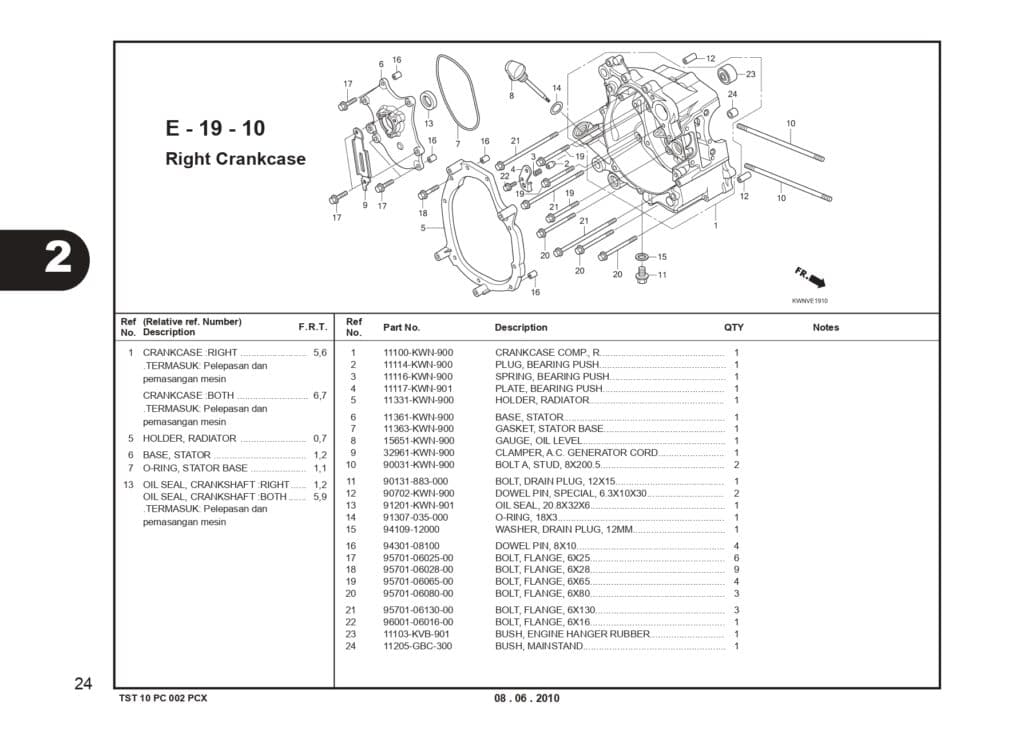

E-19-10 Right Crankcase – Katalog Suku Cadang Honda PCX 125 KWN

#	Informasi Produk	Visual
1	CRANK CASE COMP,RIGHT Part Number : `11100KWN900`
2	PLUG,BRG PUSH Part Number : `11114KWN900`
3	SPG,BRG PUSH Part Number : `11116KWN900`
4	PLATE,BRG PUSH Part Number : `11117KWN901`
5	HOLDER,RADIATOR Part Number : `11331KWN900`
6	BASE, STATOR Part Number : `11361KWN901`
7	GASKET,STATOR BASE Part Number : `11363KWN900`
8	GAUGE,OIL LEVEL Part Number : `15651KWN900`
9	CLAMP,ACG CORD Part Number : `32961KWN900`
10	BOLT A STUD 8X2005 Part Number : `90031KWN900`
11	BOLT DRAIN PLUG 12X15 Part Number : `90131883000`
12	DOWEL PIN,SPL 6.3X10X30 Part Number : `90702KWN900`
13	OIL SEAL,20.8X32X6 Part Number : `91201KWN902`
14	O-RING, 18X3 Part Number : `91307035000`
15	WASHER, DRAIN PLUG, 12MM Part Number : `9410912000`
16	PIN DOWEL 8X10 Part Number : `9430108100`
17	BOLT FLANGE 6X25 Part Number : `957010602500`
18	BOLT FLANGE 6X28 Part Number : `957010602800`
19	BOLT FLANGE 6X65 Part Number : `957010606500`
20	BOLT FLANGE 6X80 Part Number : `957010608000`
21	BOLT FLANGE 6X130 Part Number : `957010613000`
22	BOLT FLANGE SH 6X16 Part Number : `960010601600`
23	Rubber Bush Eng, Hanger Part Number : `11103KVB930`
24	BUSH M STAND Part Number : `11205GBC300`
