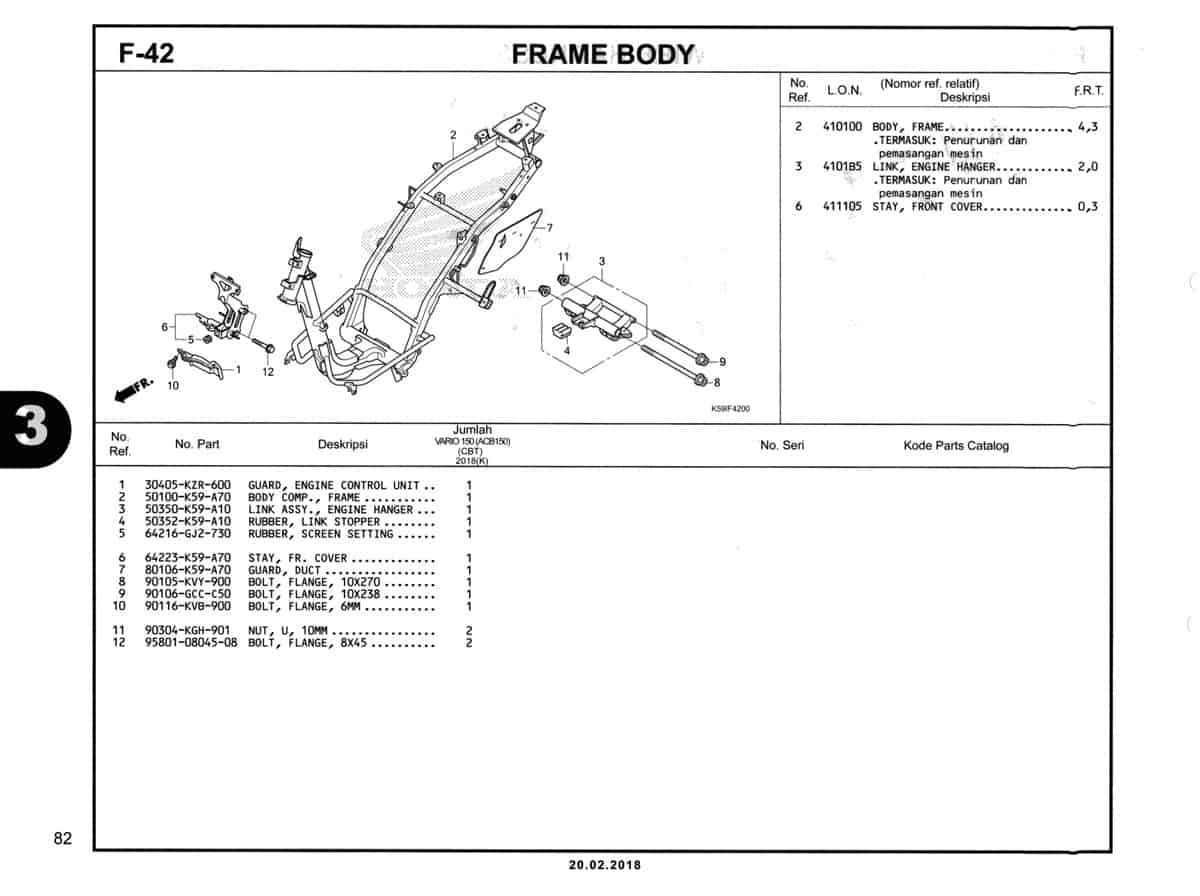

F42 – Frame Body – Katalog Honda New Vario 150 K59J

#	Informasi Produk	Visual
1	Guard Engine Control Unit Part Number : `30405KZR600`
2	Frame Body Comp Part Number : `50100K59A70`
3	Link Assy Eng Hanger Part Number : `50350K59A10`
4	Rubber, Link Stopper Part Number : `50352K59A10`
5	Rubber Sreen Setting Part Number : `64216GJ2730`
6	Stay FR Cover Part Number : `64223K59A70`
7	Guard Duct Part Number : `80106K59A70`
8	Bolt Flange 10x270 Part Number : `90105KVY900`
9	Bolt Flange 10x238 Part Number : `90106GCCC50`
10	Bolt Flange 6mm Part Number : `90116KVB900`
11	Nut U 10mm Part Number : `90304KGH901`
12	Bolt Flange 8x45 Part Number : `958010804508`
