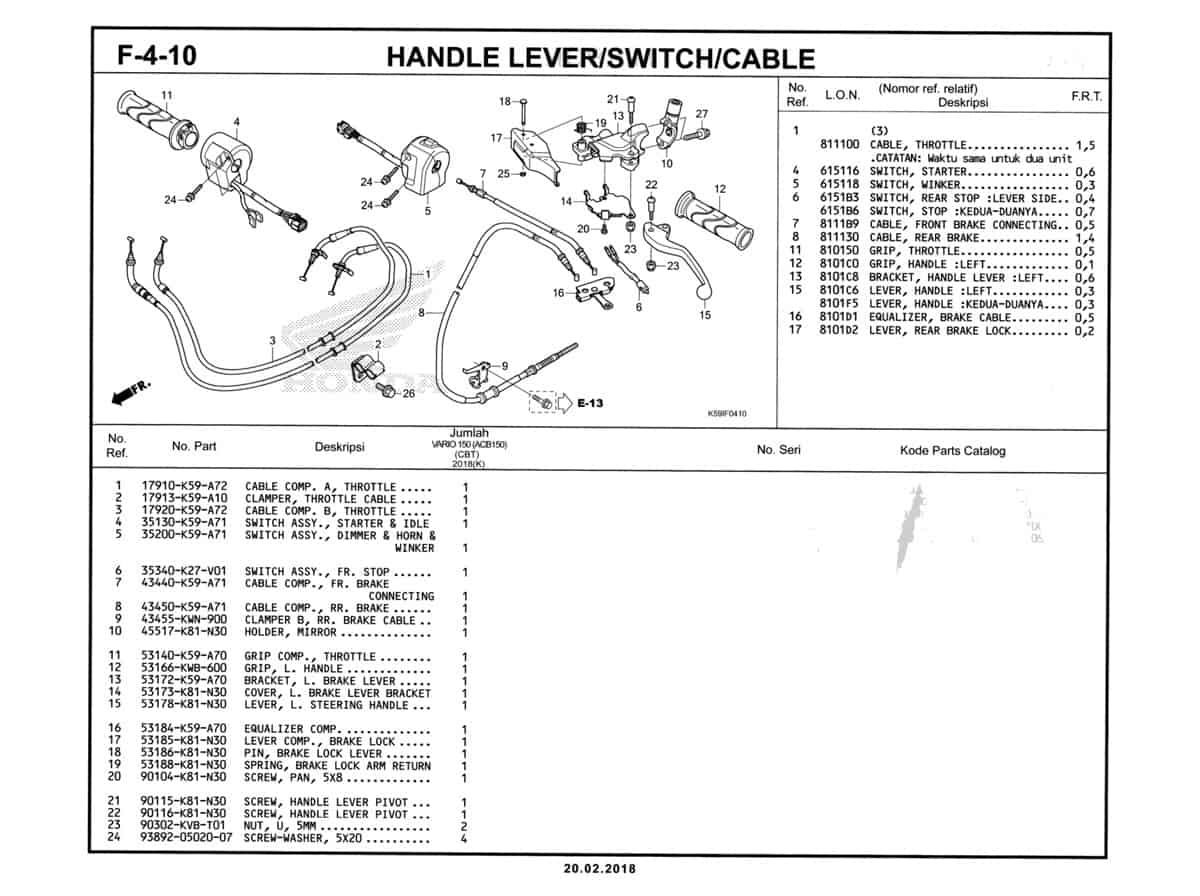

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Cable Comp A Throttle | 17910K59A72 |
|
| 2 | Clamper Throttle Cable | 17913K59A10 |
|
| 3 | Cable Comp B Throt | 17920K59A72 |
|
| 4 | Switch Assy Start Idle | 35130K59A71 |
|
| 4 | Switch Assy Start Idle | 35130K59A72 |
|
| 4 | Switch Assy Start Idle | 35130K59A73 |
|
| 5 | Switch Assy dim Horn Winker | 35200K59A71 |
|
| 6 | Switch Assy FR Stop | 35340K27V01 |
|
| 7 | Cable Comp FR Brake Conn | 43440K59A71 |
|
| 8 | Cable Comp, RR BRK | 43450K59A71 |
|
| 9 | Clamper B RR Brake Cable | 43455KWN900 |
|
| 10 | Holder Mirror | 45517K81N30 |
|
| 11 | Grip Comp Throttle | 53140K59A70 |
|
| 12 | Girp L Handle | 53166KWB600 |
|
| 12 | Girp L Handle | 53166K2SN00 |
|
| 13 | Bracket L Brake Lever | 53172K59A70 |
|
| 14 | Cover L Brake Lever Bracket | 53173K81N30 |
|
| 15 | Lever L Steering Handle | 53178K81N30 |
|
| 16 | Equalizer Comp | 53184K59A70 |
|
| 17 | Lever Comp Brake Lock | 53185K81N30 |
|
| 18 | Pin Brake Lock Lever | 53186K81N30 |
|
| 19 | Spring Brake Lock Arm Return | 53188K81N30 |
|
| 20 | Screw Pan 5X8 | 90104K81N30 |
|
| 21 | Screw Handle Lever Pivot | 90115K81N30 |
|
| 22 | Screw Handle Lever Pivot | 90116K81N30 |
|
| 23 | Nut U 5mm | 90302KVBT01 |
|
| 24 | Screw Washer 5X20 | 938920502007 |
|
| 25 | E-Ring 3MM | 9454003010 |
|
| 26 | Bolt Flange 6x12 | 957010601200 |
|
| 27 | Bolt Flange 6x22 | 960010602207 |
|
