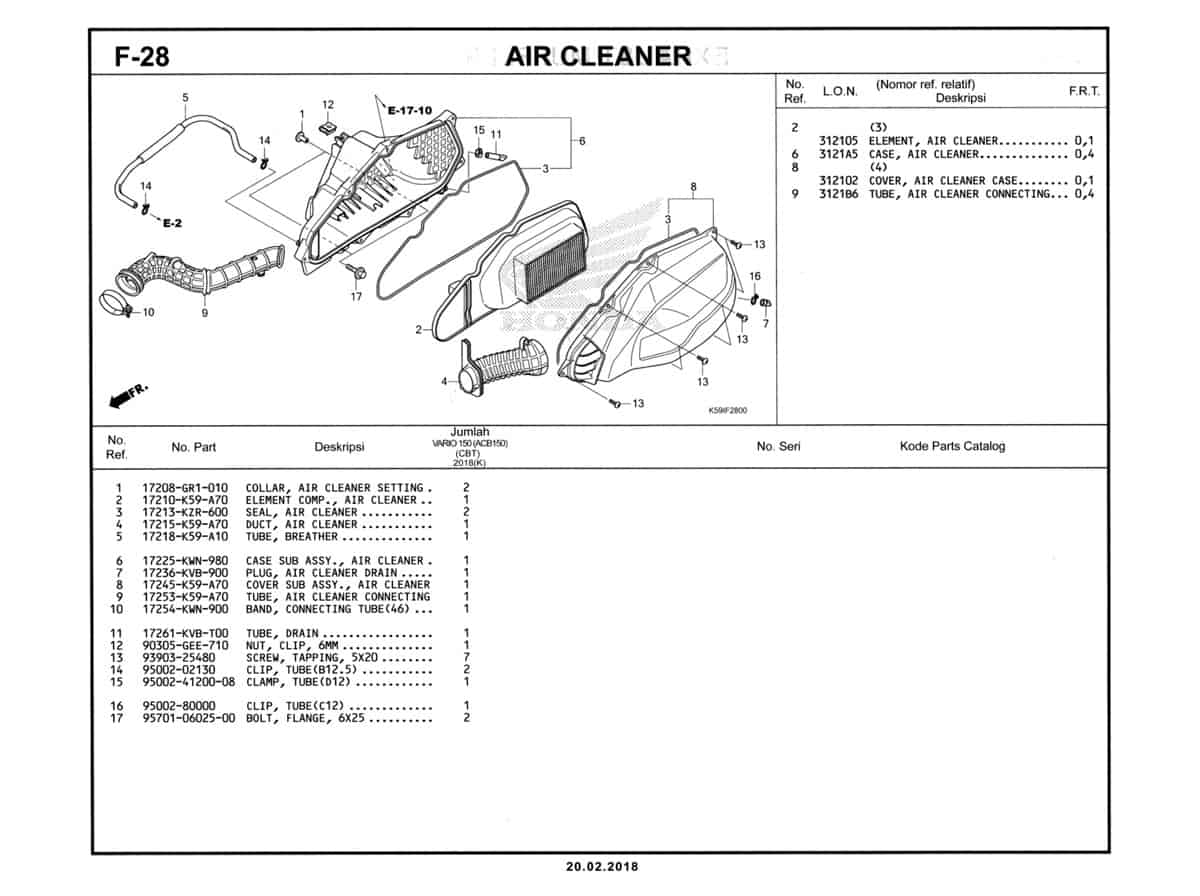

F28 – Air Cleaner – Katalog Honda New Vario 150 K59J

#	Informasi Produk	Visual
1	Collar ,Air/C Set Part Number : `17208GR1010`
2	Element Comp Air Cleaner Part Number : `17210K59A70`
3	Seal Air Cleaner Part Number : `17213KZR600`
4	Duct Air C Part Number : `17215K59A70`
5	Tube Breather Part Number : `17218K59A10`
6	Case Sub Assy Air Ceaner Part Number : `17225KWN980`
7	Plug A/C Drain Part Number : `17236KVB900`
8	Cover Sub Assy Air C Part Number : `17245K59A70`
9	Tube Air C Connecting Part Number : `17253K59A70`
10	Band 46 Connecting Tube Part Number : `17254KWN900`
11	Tube Drain Part Number : `17261KVBT00`
12	Nut Clip 6MM Part Number : `90305GEE710`
13	Screw Tapping 5x20 Part Number : `9390325480`
14	Clip Tube (B12.5) Part Number : `9500202130`
15	Clamp D12 Tube Part Number : `950024120008`
16	Clip Tube C12 Part Number : `9500280000`
17	Bolt Flange 6X25 Part Number : `957010602500`
