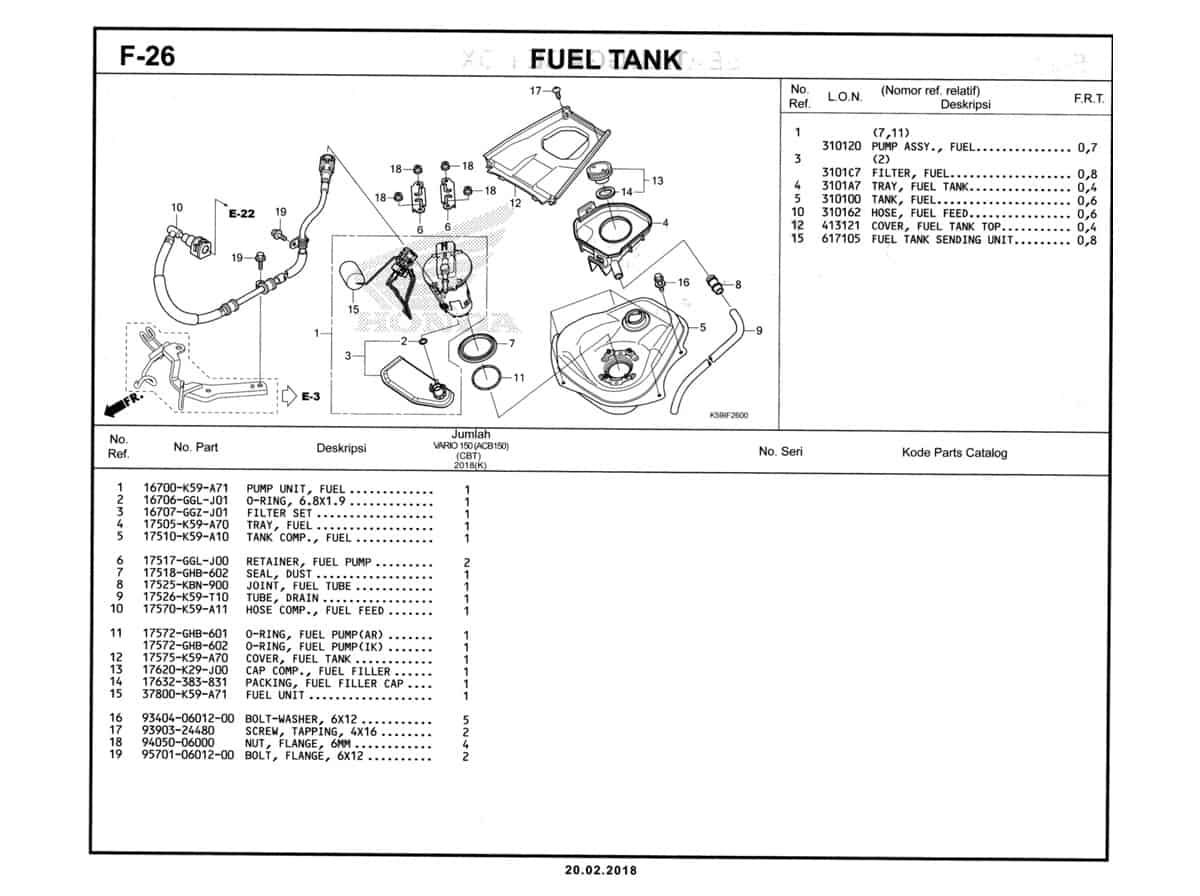

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Unit Assy Fuel Pump | 16700K59A71 |
|
| 2 | O-Ring 6 8x1.9 | 16706GGLJ01 |
|
| 3 | Filter Set | 16707GGZJ01 |
|
| 4 | Tray Fuel | 17505K59A70 |
|
| 5 | Tank Comp Fuel | 17510K59A10 |
|
| 6 | Retainer Fuel Pump | 17517GGLJ00 |
|
| 7 | Seal Dust | 17518GHB602 |
|
| 8 | Joint Fuel Tube | 17525KBN900 |
|
| 9 | Tube Drain | 17526K59T10 |
|
| 10 | Hose Comp Fuel Feed | 17570K59A11 |
|
| 10 | Hose Comp Fuel Feed | 17570K59A11 |
|
| 11 | O Ring Fuel Pump | 17572GHB601 |
|
| 11 | Gasket Fuel Pump | 17572GHB602 |
|
| 12 | Cover Fuel Tank | 17575K59A70 |
|
| 13 | Cap Comp Fuel Filter | 17620K29J00 |
|
| 13 | CAP COMP,FUEL FILLER | 17620K29J03 |
|
| 14 | Packing Fuel Filler Cap | 17632383831 |
|
| 14 | PACKING,FUEL FILLER CAP | 17632383832 |
|
| 15 | Fuel Unit | 37800K59A71 |
|
| 16 | Bolt Washer 6x12 | 934040601200 |
|
| 17 | Screw Tapping 4x16 | 9390324480 |
|
| 18 | Nut Flange 6mm | 9405006000 |
|
| 19 | Bolt Flange 6x12 | 957010601200 |
|
