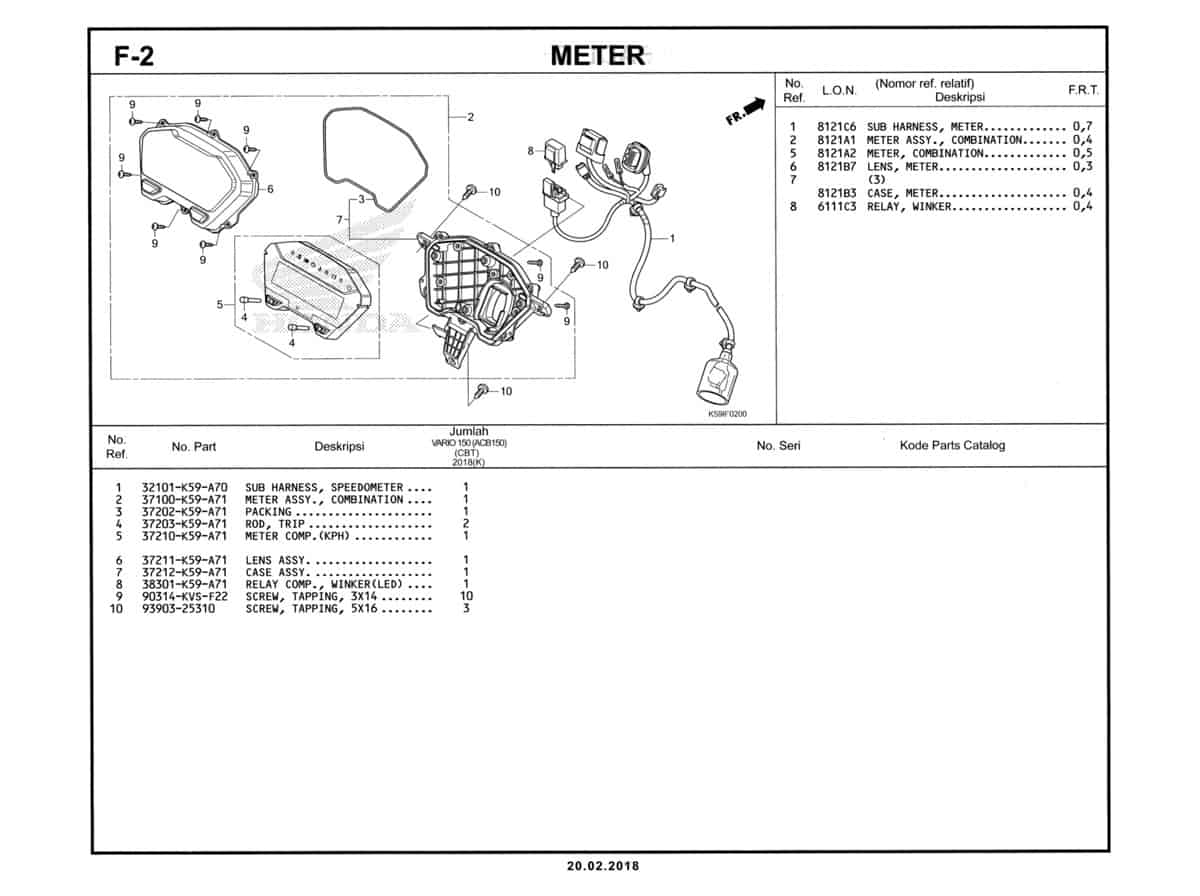

F2 – Meter – Katalog Honda New Vario 150 K59J

#	Informasi Produk	Visual
1	Sub Harness Speedometer Part Number : `32101K59A70`
2	Meter Assy Combination Part Number : `37100K59A71`
2	Meter Assy Combination Part Number : `37100K59A72`
2	Meter Assy Combination Part Number : `37100K59A73`
3	Packing Part Number : `37202K59A71`
4	Trip Rod Part Number : `37203K59A71`
5	Meter Comp Part Number : `37210K59A71`
5	Meter Comp Part Number : `37210K59A72`
6	Lens Assy Part Number : `37211K59A71`
6	LENS ASSY Part Number : `37213K59A71`
7	Case Assy Part Number : `37212K59A71`
8	Relay Comp LED Winker Part Number : `38301K59A71`
9	Screw Tapping 3X14 Part Number : `90314KVSF22`
10	Screw Tapping 5x16 Part Number : `9390325310`
