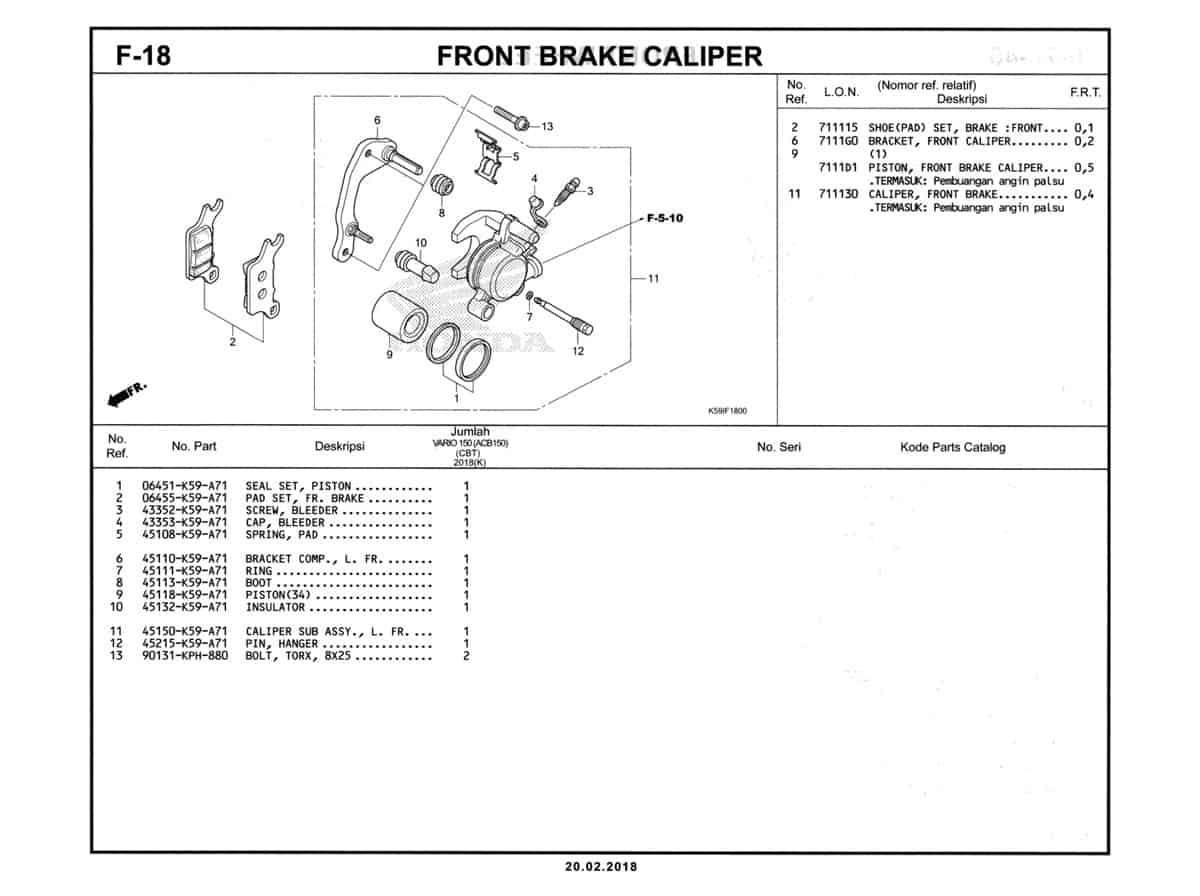

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Seal Set Piston | 06451K59A71 |
|
| 2 | Pad Set FR Brake | 06455K59A71 |
|
| 3 | Screw Bleender | 43352K59A71 |
|
| 4 | Cap Bleender | 43353K59A71 |
|
| 5 | Spring Pad | 45108K59A71 |
|
| 6 | Bracket Com L FR | 45110K59A71 |
|
| 7 | Ring | 45111K59A71 |
|
| 8 | Boot | 45113K59A71 |
|
| 9 | Piston 34 | 45118K59A71 |
|
| 10 | Insulator | 45132K59A71 |
|
| 11 | Caliper Sub Assy L FR | 45150K59A71 |
|
| 11 | Caliper Sub Assy L FR | 45150K2SN01 |
|
| 12 | Pin Hanger | 45215K59A71 |
|
| 13 | Bolt Torx 8x25 | 90131KPH880 |
|
