F10 – Steering Stem – Katalog Honda New Vario 150 K59J

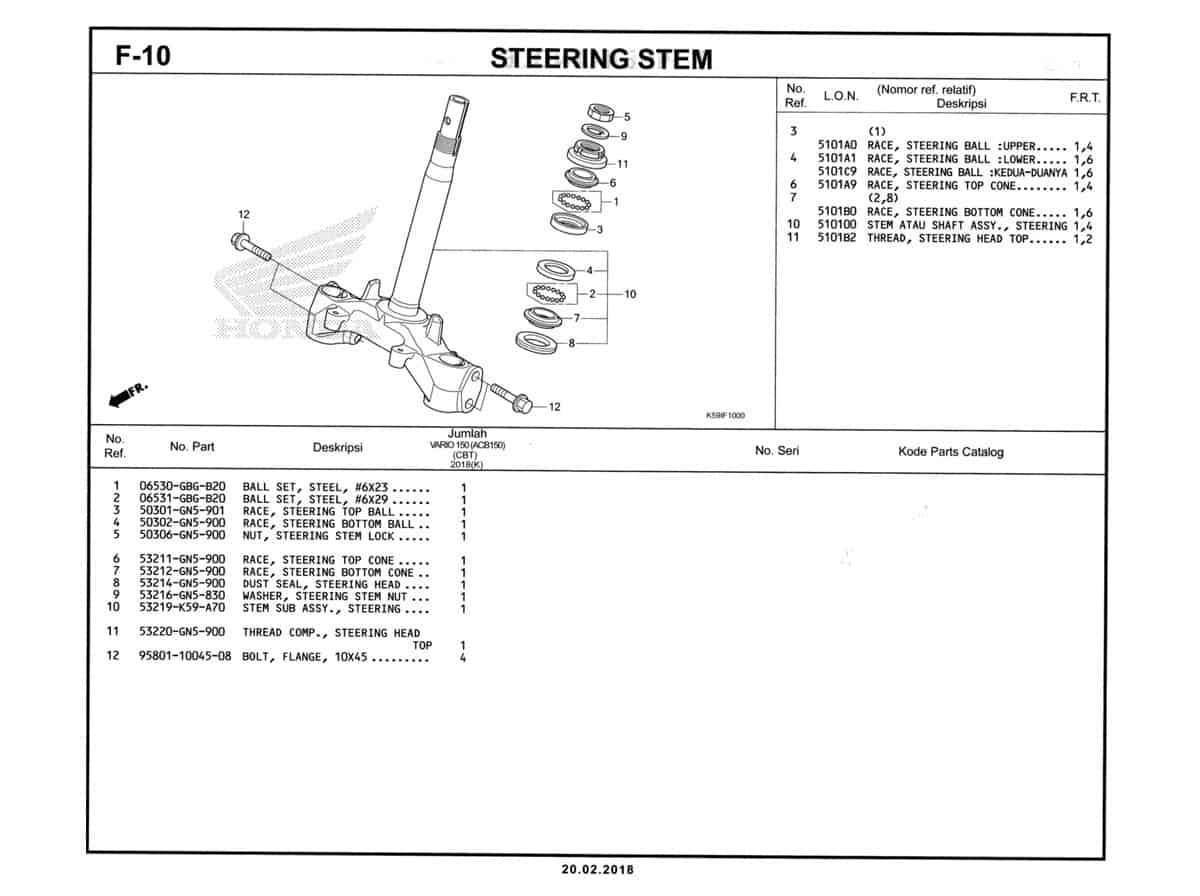

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 Ball Assy Steel 6x23 06530GBGB20 Ball Assy Steel 6x23
2 Ball Assy Steel 6x29 06531GBGB20 Ball Assy Steel 6x29
3 Race Steering Top Ball 50301GN5901 Race Steering Top Ball
4 Race Steering Bottom Ball 50302GN5900 Race Steering Bottom Ball
5 Nut Steering Stem Lock 50306GN5900 Nut Steering Stem Lock
6 Race Steering Top Cone 53211GN5900 Race Steering Top Cone
7 Race Steering Bottom Cone 53212GN5900 Race Steering Bottom Cone
8 Dust Seal 53214GN5900 Dust Seal
9 Washer Steering 53216GN5830 Washer Steering
10 Stem Sub Assy Steering 53219K59A70 Stem Sub Assy Steering
11 Thread Head Top 53220GN5900 Thread Head Top
12 Bolt Flange 10X 45 958011004508 Bolt Flange 10X 45
